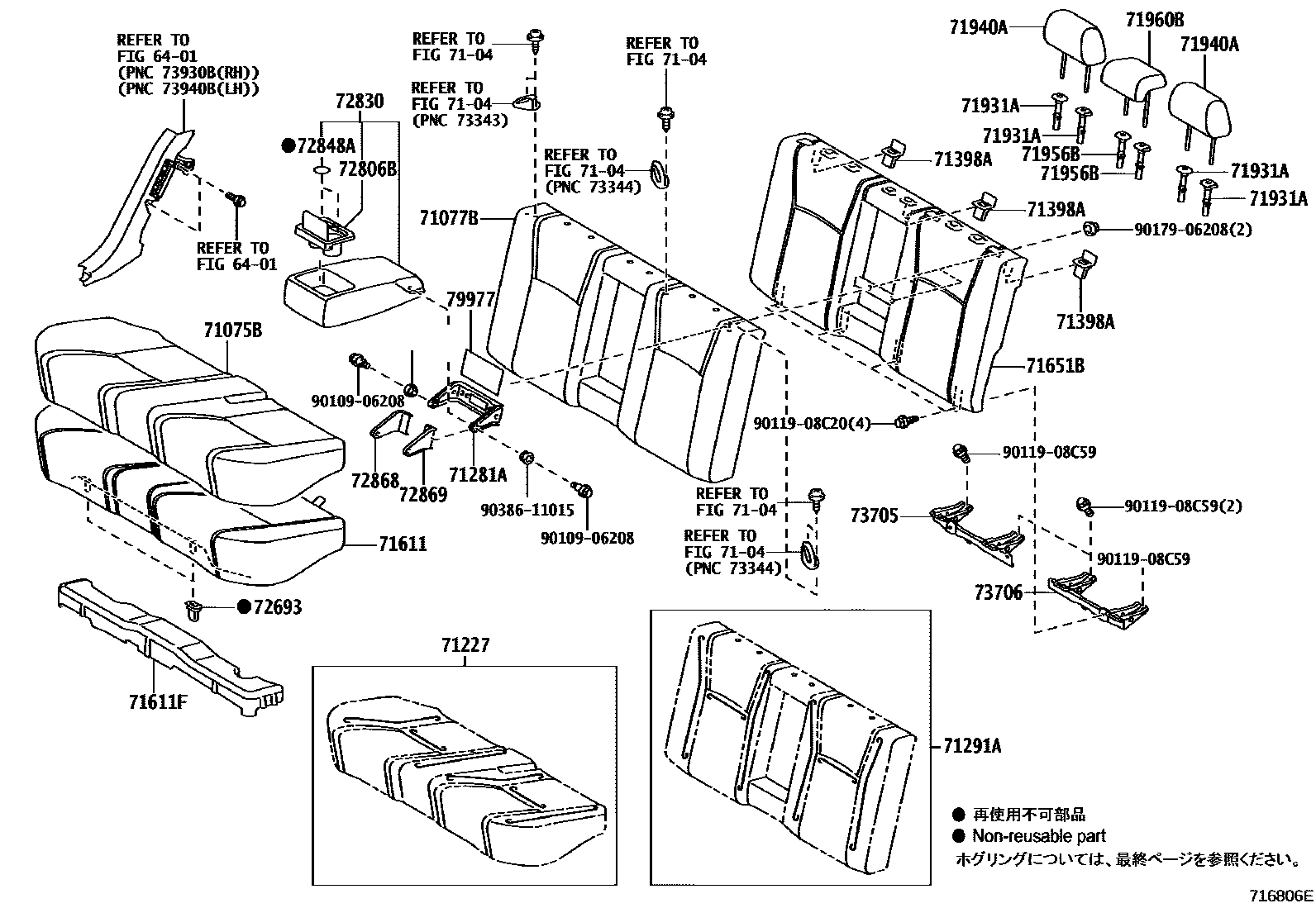

REAR SEAT & SEAT TRACK
6401
7104
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
FLAXEN/AKANE,TRIM01
FLAXEN/FLAXEN,TRIM00
BLACK/BLACK,TRIM2#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
FLAXEN/AKANE,TRIM01
FLAXEN/FLAXEN,TRIM00
BLACK/BLACK,TRIM2#
sub71077-75161
sub71077-75161
71227WIRE, REAR SEAT CUSHION COVER SET
71281AHINGE, REAR SEAT CENTER ARMREST
71291AWIRE, REAR SEATBACK COVER SET
71398AHOLDER, REAR SEATBACK
71611PAD, REAR SEAT CUSHION
71611FPAD, REAR SEAT CUSHION, A
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
71931ASUPPORT, REAR SEAT HEADREST
sub71930-44020
sub71930-44020
sub71930-44020
sub71930-44020
sub71930-44020
sub71930-44020
sub71930-44020
71940AHEADREST ASSY, REAR SEAT
FLAXEN/RED,TRIM01
FLAXEN/BROWN,TRIM00
BLACK/BLACK,TRIM2#
71956BSUPPORT, REAR SEAT HEADREST
sub71930-44020
sub71930-44020
sub71930-44020
sub71930-44020
sub71930-44020
sub71930-44020
sub71930-44020
71960BHEADREST ASSY, REAR SEAT, CENTER
FLAXEN/RED,TRIM01
FLAXEN/BROWN,TRIM00
BLACK/BLACK,TRIM2#
72693HOOK, REAR SEAT CUSHION LOCK
72806BHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP
72830ARMREST ASSY, REAR SEAT, CENTER
FLAXEN,TRIM0#
BLACK,TRIM2#
72848ACAP, SEAT ARMREST, NO.1
72868COVER, CENTER ARMREST HINGE, RH
sub72868-75020
72869COVER, CENTER ARMREST HINGE, LH
sub72869-75010
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
79977FELT, SEATBACK
9010906208
main90109-06208
9011908C20
main90119-08C20
9011908C59
main90119-08C59
9017906208
main90179-06208
9038611015
main90386-11015
29 parts on this diagram · 2 diagrams in section
