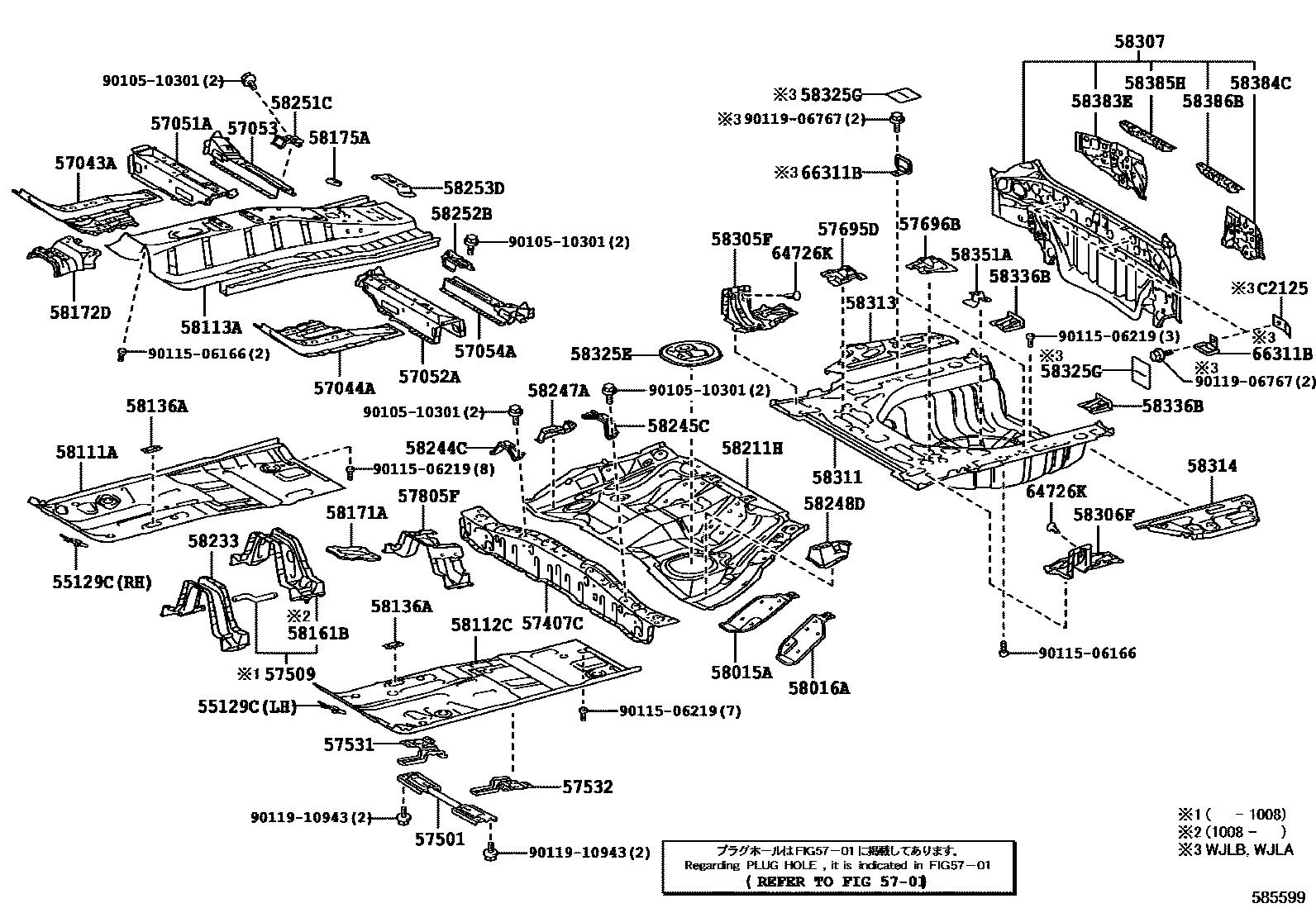

FLOOR PAN & LOWER BACK PANEL
55129CCOVER, DASH PANEL HOLE
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57501BRACKET SUB-ASSY, FRONT SEAT, CENTER
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57531BRACKET, FRONT FLOOR CENTER BRACE, RH
57532BRACKET, FRONT FLOOR CENTER BRACE, LH
57695DBRACKET, REAR FLOOR MOUNTING, NO.2 RH
57696BBRACKET, REAR FLOOR MOUNTING, NO.2 LH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58136ACOVER, FRONT FLOOR SERVICE HOLE
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58171AREINFORCE, PARKING BRAKE BASE
58172DBRACKET, COMPUTER MOUNTING, NO.4
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58233BRACKET, EXHAUST PIPE MOUNTING
58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH
58245CBRACKET, REAR SEAT CUSHION MOUNTING, LH
58251CBRACE, FLOOR PANEL, FRONT RH
58252BBRACE, FLOOR PANEL, FRONT LH
58253DBRACKET, PARKING BRAKE CABLE
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58325GCOVER, REAR FLOOR SERVICE HOLE
58336BREINFORCEMENT, REAR FLOOR PAN
58351ABRACKET, SPARE WHEEL CARRIER
58385HBRACKET, REAR BUMPER COVER, NO.1
58386BBRACKET, REAR BUMPER COVER, NO.2
64726KCLIP, LUGGAGE TRIM, REAR
66311BHOOK, ROPE
C2125PLATE, REAR HOOK BRACKET
9010510301
main90105-10301
9011506166
main90115-06166
9011506219
main90115-06219
9011906767
main90119-06767
9011910943
main90119-10943
57 parts on this diagram · 3 diagrams in section
