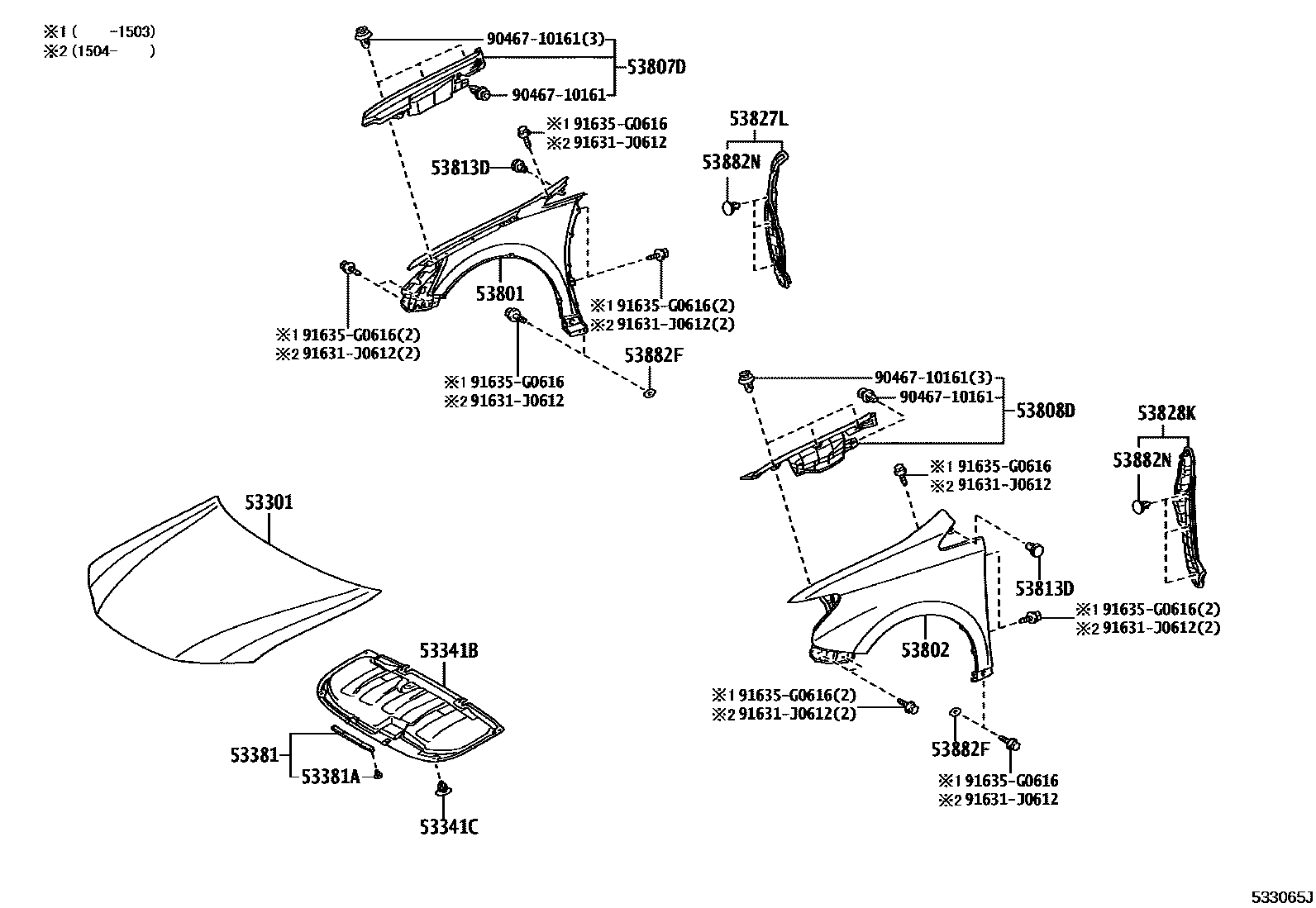

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-75010iAZK10..CBU200911-201308

main53301-75020iAZK10..CBU201308-201802

53341BINSULATOR, HOOD

main53341-75010iAZK10..CBU200911-201308

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iAZK10..CBU200911-201308

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-75010iAZK10..CBU200911-201308

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iAZK10..CBU200911-201308

53801FENDER SUB-ASSY, FRONT RH

main53801-75010iAZK10..CBU200911-201308

main53801-75040iAZK10..CBU201308

53802FENDER SUB-ASSY, FRONT LH

main53802-75010iAZK10..CBU200911-201308

main53802-75040iAZK10..CBU201308

53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH

main53807-75010iAZK10..CBU200911-201308

main53807-75020iAZK10..CBU201308

53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH

main53808-75010iAZK10..CBU200911-201308

main53808-75020iAZK10..CBU201308

53813DEXTENSION, FRONT FENDER

main53813-28090iAZK10..CBU200911-201005

sub53813-48011

main53813-48011iAZK10..CBU201006-201308

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-75010iAZK10..CBU200911-201308

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-75010iAZK10..CBU200911-201308

53882FSEAL, FRONT FENDER

main53882-26010iAZK10..CBU200911-201410

53882NCLIP(FOR FRONT FENDER SEAL)

main53857-47011iAZK10..CBU201301-201308

main90467-06205-C0iAZK10..CBU200911-201212

BLACK

9046710161

main90467-10161

91631J0612

main91631-J0612

91635G0616

main91635-G0616

17 parts on this diagram · 2 diagrams in section
