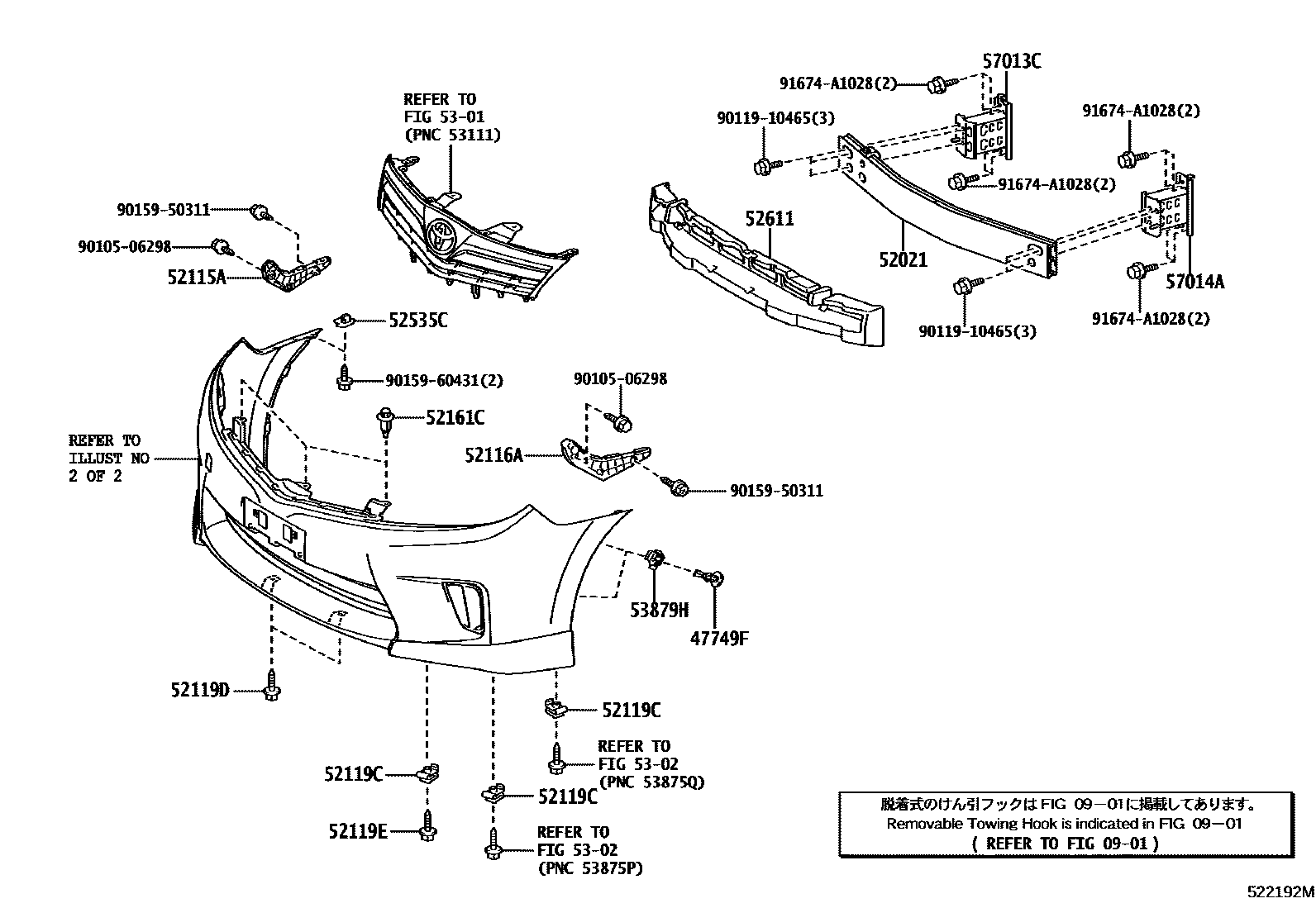

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

0901

47749FCLIP, PIN HOLD

main47749-50090iAZK10..CBU200911-201802

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-75040iAZK10..CBU200911-201308

main52021-75080iAZK10..CBU201308-201802

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-75010iAZK10..CBU200911-201308

main52115-75030iAZK10..CBU201308-201802

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-75010iAZK10..CBU200911-201308

main52116-75030iAZK10..CBU201308-201802

52119CCLIP, FRONT BUMPER COVER

main90467-05114iAZK10..CBU200911-201802

52119DSCREW, NO.1

main90159-60488iAZK10..CBU200911-201802

52119ESCREW, NO.2

main90159-60488iAZK10..CBU200911-201802

52161CPIECE, FRONT BUMPER

main52161-16010iAZK10..CBU200911-201308

52535CRETAINER, FRONT BUMPER SIDE

main52535-50060iAZK10..CBU200911-201308

52611ABSORBER, FRONT BUMPER ENERGY

main52611-75010iAZK10..S..CBU200911-201111

sub52611-75011

main52611-75011iAZK10..CBU201111-201308

main52611-75040iAZK10..CBU201308-201802

5301

5302

53879HRETAINER, FRONT FENDER LINER

main53879-30040iAZK10..CBU200911-201802

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-75030iAZK10..CBU200911-201308

main57013-75050iAZK10..CBU201308-201802

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-75020iAZK10..CBU201308-201802

main57014-75030iAZK10..CBU200911-201308

9010506298

main90105-06298

9011910465

main90119-10465

9015950311

main90159-50311

9015960431

main90159-60431

91674A1028

main91674-A1028

21 parts on this diagram · 4 diagrams in section
