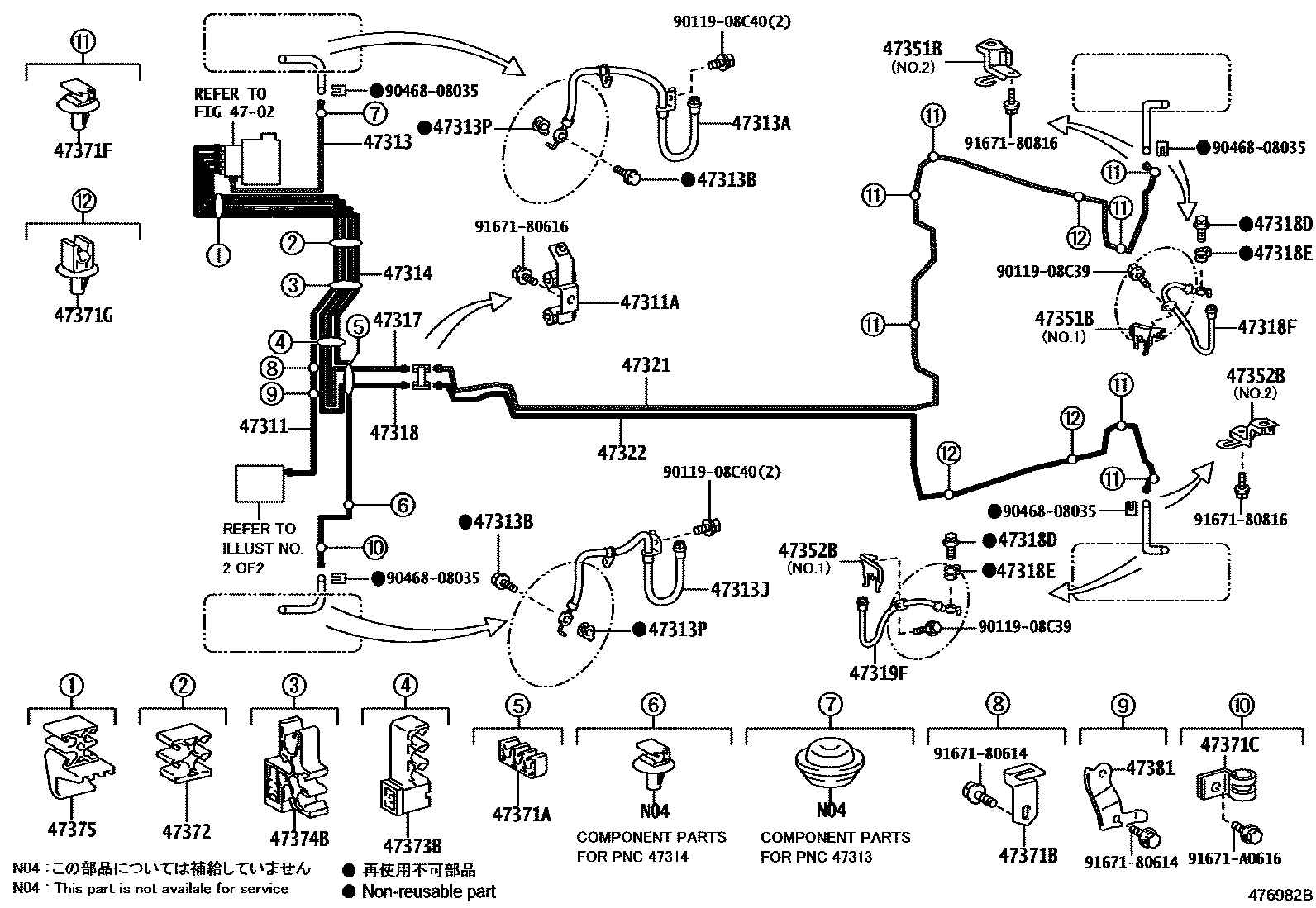

BRAKE TUBE & CLAMP

0001 1 0002 1

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-75030iAZK10..CBU200911-201504

main47311-75031iAZK10..CBU201505

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10279iAZK10..CBU200911-201308

47313TUBE, FRONT BRAKE, NO.3

main47313-75010iAZK10..CBU200911-201504

main47313-76010iAZK10..CBU201505

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02F97iAZK10..CBU200911-201308

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iAZK10..CBU200911-201308

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02F98iAZK10..CBU200911-201308

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iAZK10..CBU200911-201308

47314TUBE, FRONT BRAKE, NO.4

main47314-75010iAZK10..CBU200911-201504

main47314-76020iAZK10..CBU201505

47317TUBE, FRONT BRAKE, NO.7

main47317-75010iAZK10..CBU200911-201504

main47317-76010iAZK10..CBU201505

47318TUBE, FRONT BRAKE, NO.8

main47318-75010iAZK10..CBU200911-201504

main47318-76010iAZK10..CBU201505

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iAZK10..CBU200911-201308

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iAZK10..CBU200911-201308

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02F99iAZK10..CBU200911-201011

main90947-02G67iAZK10..CBU201012-201308

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02G00iAZK10..CBU200911-201011

main90947-02G68iAZK10..CBU201012-201308

47321TUBE, REAR BRAKE, NO.1

main47321-75010iAZK10..CBU200911-201504

main47321-75011iAZK10..CBU201505-201802

47322TUBE, REAR BRAKE, NO.2

main47322-75010iAZK10..CBU200911-201504

main47322-75011iAZK10..CBU201505-201802

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-12210iAZK10..CBU200911-201308

main47351-12220iAZK10..CBU200911-201308

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-12180iAZK10..CBU200911-201308

main47352-12190iAZK10..CBU200911-201308

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00857iAZK10..CBU200911-201308

47371BCLAMP, BRAKE TUBE, NO.6

main47371-47060iAZK10..CBU200911-201308

47371CCLAMP, BRAKE TUBE, NO.7

main90461-10781iAZK10..CBU200911-201308

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01D17iAZK10..CBU200911-201802

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01D29iAZK10..CBU200911-201311

main90949-01E01iAZK10..CBU201312-201802

47372CLAMP, BRAKE TUBE, NO.2

main90464-00876iAZK10..CBU201505

main90464-00883iAZK10..CBU200911-201504

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D08iAZK10..CBU200911-201308

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D63iAZK10..CBU200911-201308

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D77iAZK10..CBU200911-201308

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-75010iAZK10..CBU200911-201308

9011908C39

main90119-08C39

9011908C40

main90119-08C40

9046808035

main90468-08035

9167180614

main91671-80614

9167180616

main91671-80616

9167180816

main91671-80816

91671A0616

main91671-A0616

36 parts on this diagram · 2 diagrams in section
