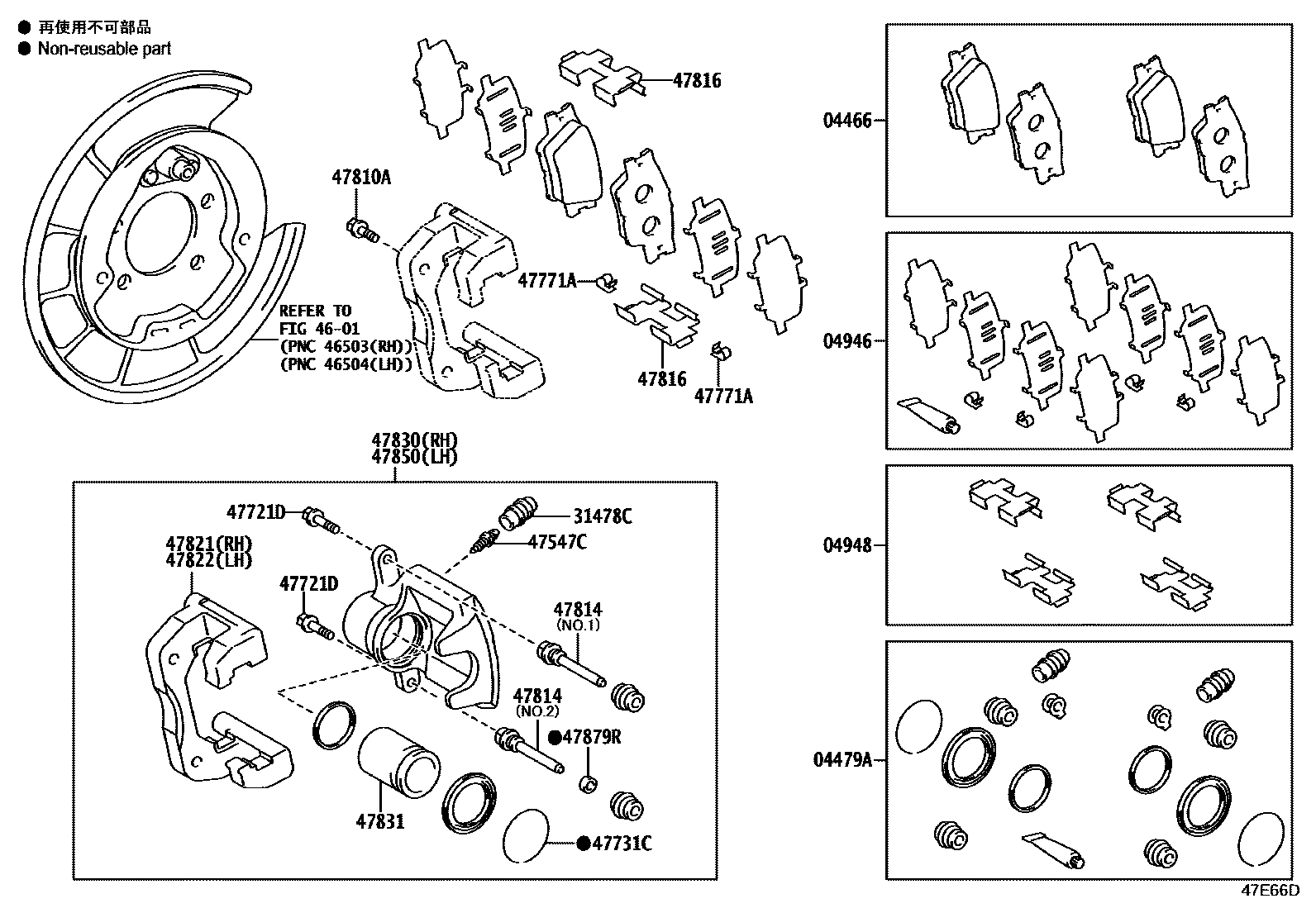

REAR DISC BRAKE CALIPER & DUST COVER
04466PAD KIT, DISC BRAKE, REAR
04479ACYLINDER KIT, DISC BRAKE, REAR
04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04948FITTING KIT, DISC BRAKE, REAR
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
4601
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
47731CRING, SET(FOR REAR DISC BRAKE PISTON)
47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)
47810ABOLT, HEXAGON(FOR REAR CALIPER)
47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47816PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47821MOUNTING, REAR DISC BRAKE CYLINDER, RH
47822MOUNTING, REAR DISC BRAKE CYLINDER, LH
47830CYLINDER ASSY, DISC BRAKE, REAR RH
47831PISTON, REAR DISC BRAKE
47850CYLINDER ASSY, DISC BRAKE, REAR LH
47879RBUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
19 parts on this diagram · 3 diagrams in section
