STANDARD TOOL

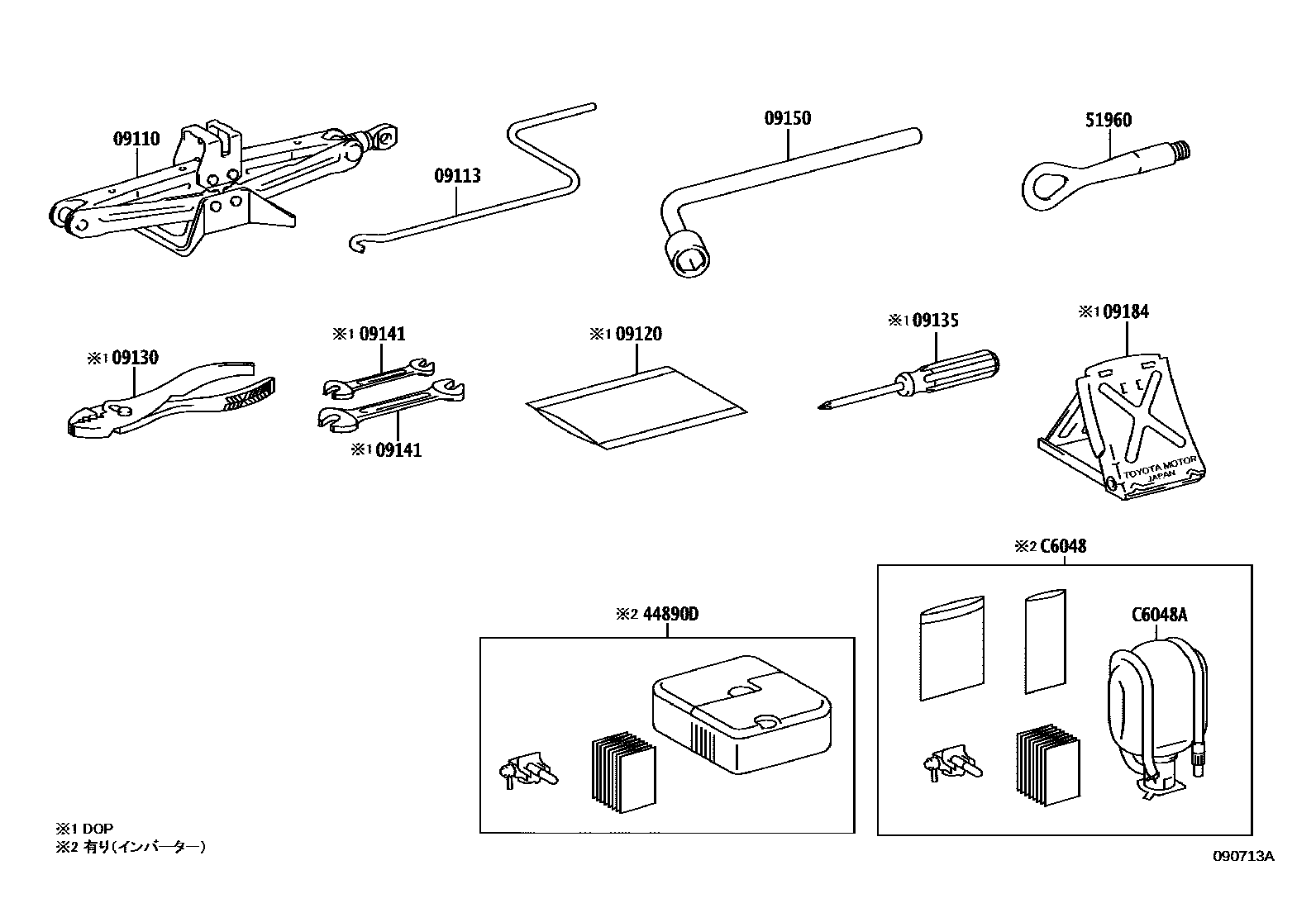

Parts diagram
09110JACK ASSY
main09111-33030i201009-201601
sub09111-76010
main09111-50051i200911-201008
sub09111-76011
main09111-76010i201602
sub09111-76011
09113HANDLE, JACK
main09113-13040i200911-201308
09120BAG, TOOL
main09120-28040i200911-201308
main09120-28040i201308
09130PLIERS
main99913-11500i200911-201308
main99913-11500i201308
09135DRIVER, SCREW
main99915-10700i200911-201308
main99915-10700i201308
09141SPANNER
main99914-10810i200911-201308
main99914-10810i201308
main99914-11214i200911-201308
main99914-11214i201308
09150WRENCH, HUB NUT BOX
main09150-35070i200911-201308
main09150-76010i201308
09184STOPPER, WHEEL
main09184-00010i200911-201308
main09184-00010i201308-201802
44890DCOMPRESSOR ASSY, AIR
main44890-52021i201308-201505
sub44890-52022
main44890-52021i201505
sub44890-52022
51960HOOK ASSY, FRONT
main51961-50040i200911-201204
sub51961-50042
main51961-50042i201205-201308
C6048REPAIR SET, TIRE
main42683-47021i201308-201505
main42683-47021i201505
C6048ASEALANT, REPAIR TIRE
mainC604847051i201308-201505
mainC604847051i201505-201802

12 parts on this diagram · 1 diagram in section
