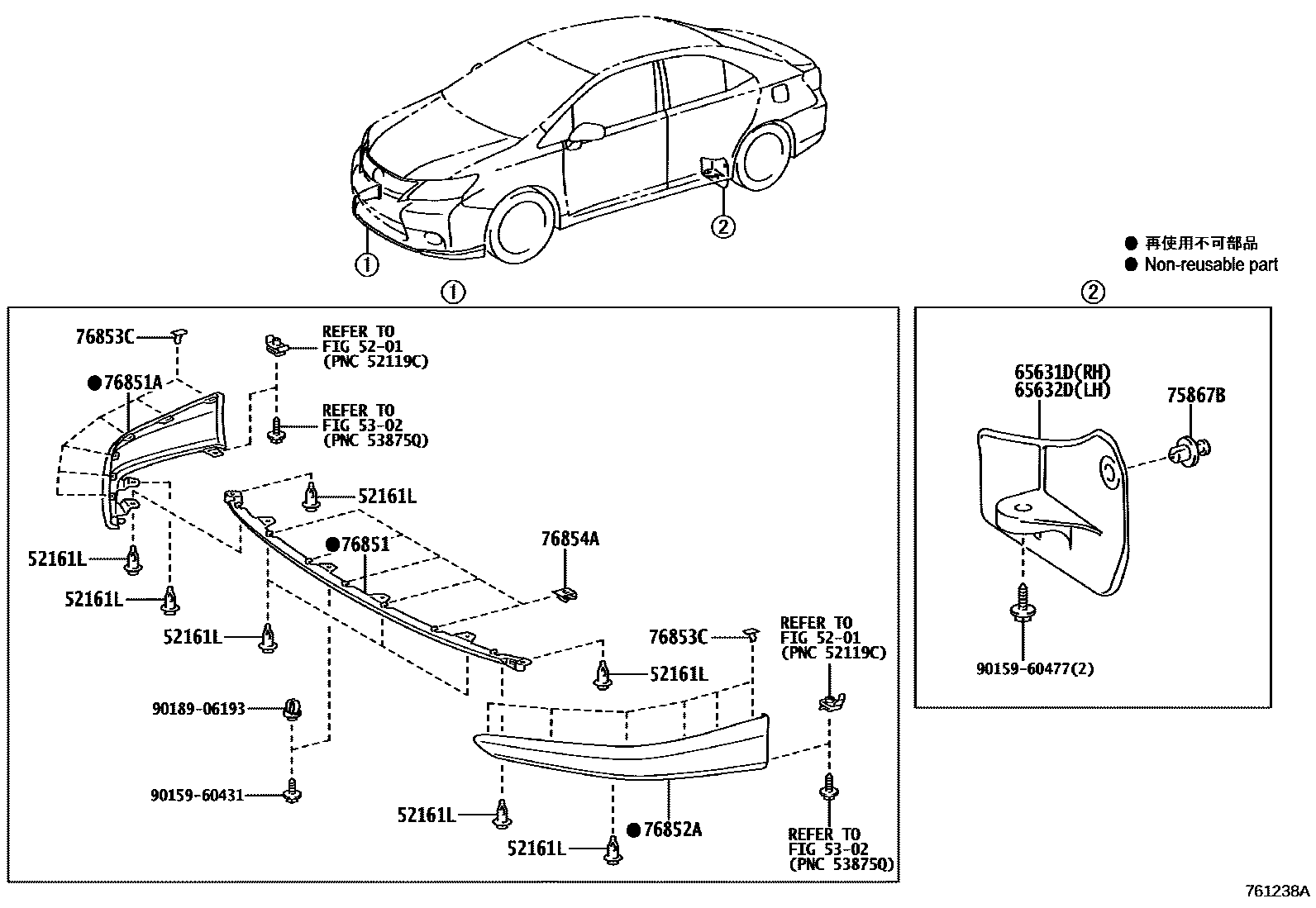

MUDGUARD & SPOILER

0001 1 0002 1 0003 1

5201

52161LPIECE, FRONT SPOILER

5302

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-75010iANF10200907-201301

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-75010iANF10200907-201301

75867BCLIP, ROCKER PANEL MOULDING

main75867-30140iANF10200907-201306

main75867-33050iANF10201307

76851COVER, FRONT SPOILER

main76851-75020

main76851-75030

main76851-75050

76851ACOVER, FRONT SPOILER, RH

76852ACOVER, FRONT SPOILER, LH

76853CRETAINER, FRONT SPOILER, NO.1

76854ARETAINER, FRONT SPOILER, NO.2

9015960431

main90159-60431

9015960477

main90159-60477

9018906193

main90189-06193

14 parts on this diagram · 3 diagrams in section
