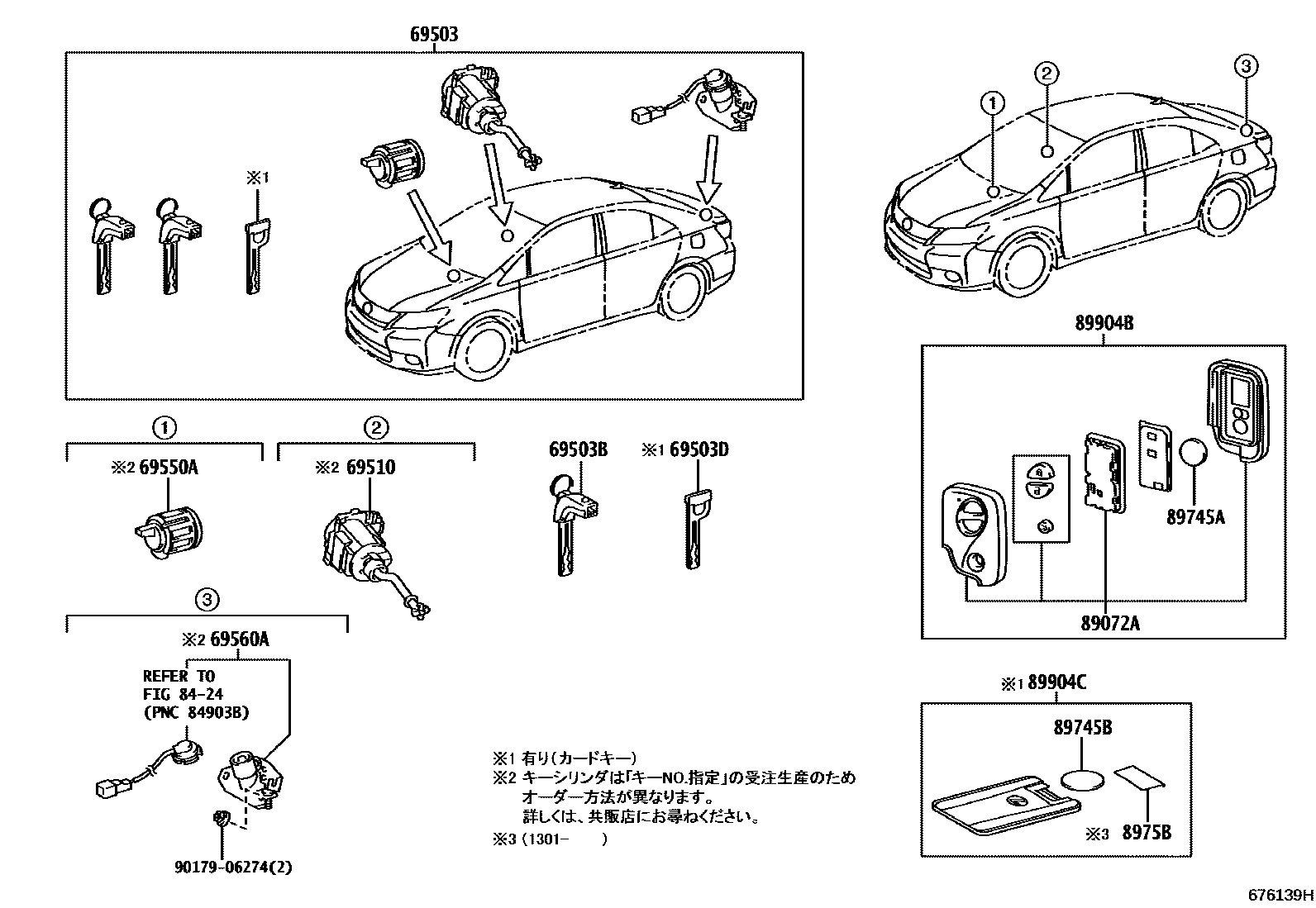

LOCK CYLINDER SET
69503CYLINDER SET, LOCK
69503BKEY, CUT
�}�X�^�[�L�[
�}�X�^�[�L�[
69503DKEY, CUT(CARD KEY)
�}�X�^�[�L�[
�}�X�^�[�L�[
69510CYLINDER ASSY, FRONT DOOR LOCK, RH
69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK
69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK
8424
89072AHOUSING SET, DOOR CONTROL TRANSMITTER
89745BBATTERY, TRANSMITTER(CARD KEY)
8975BCOVER, TRANSMITTER BATTERY HOUSING
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)
9017906274
14 parts on this diagram · 1 diagram in section
