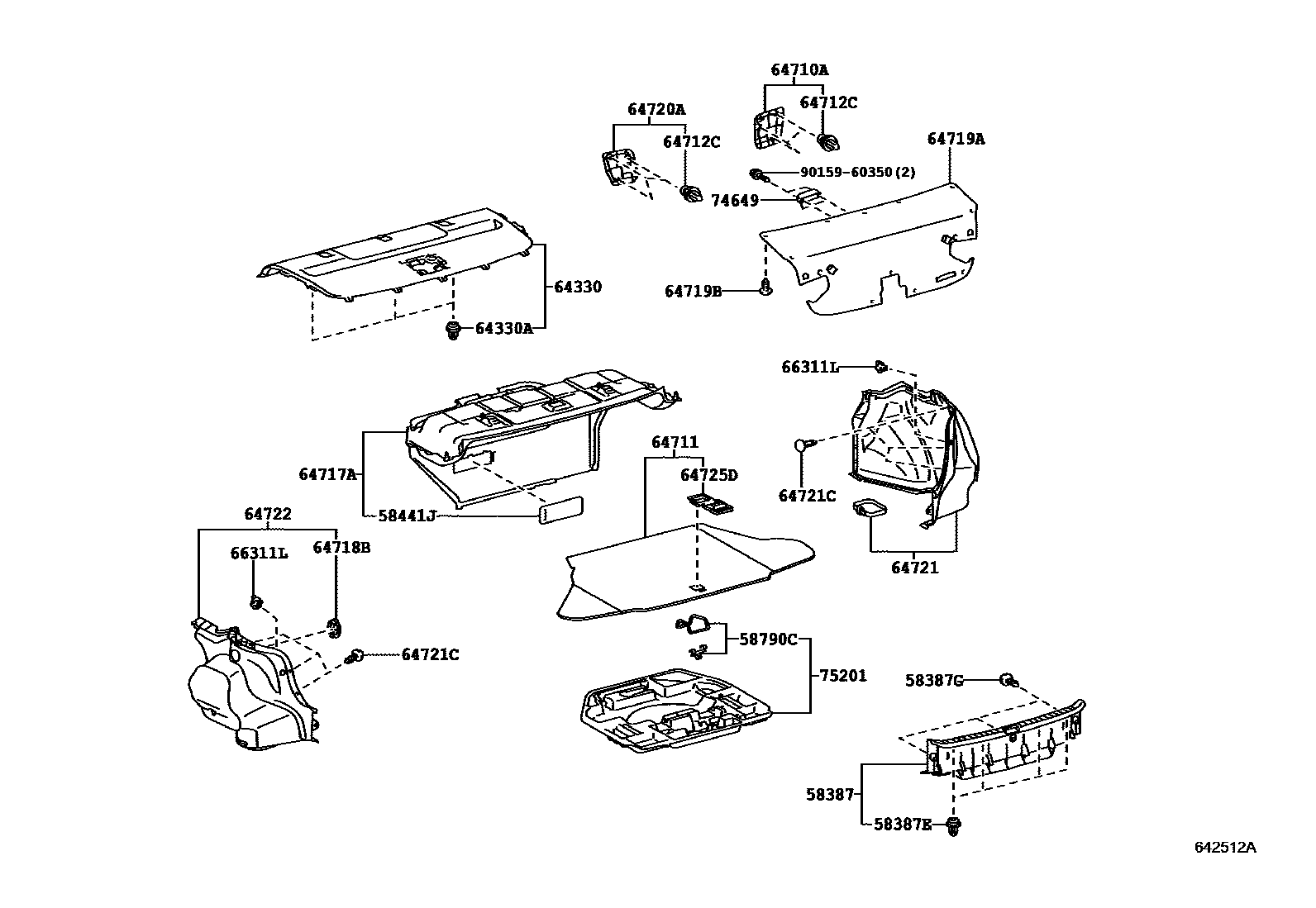

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58387GCLIP(FOR REAR FLOOR FINISH PLATE)
58441JCOVER, BATTERY SERVICE HOLE
BLACK
58790CCARRIER ASSY, JACK
64330PANEL ASSY, PACKAGE TRAY TRIM
IVORY,TRIM0#,27,29
ECRU,TRIM0#
BLACK,TRIM25,28
BLACK,TRIM2#
ECRU,TRIM0#
BLACK,TRIM2#
sub64330-75140
sub64330-75140
sub64330-75140
sub64330-75140
sub64330-75140
sub64330-75140
sub64330-75140
sub64330-75140
sub64330-75140
sub64330-75140
sub64330-75140
sub64330-75140
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
64711MAT, LUGGAGE COMPARTMENT FLOOR
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
64719ACOVER, LUGGAGE COMPARTMENT DOOR
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721CCLIP(LUGGAGE COMPARTMENT)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
9015960350
main90159-60350
23 parts on this diagram · 2 diagrams in section
