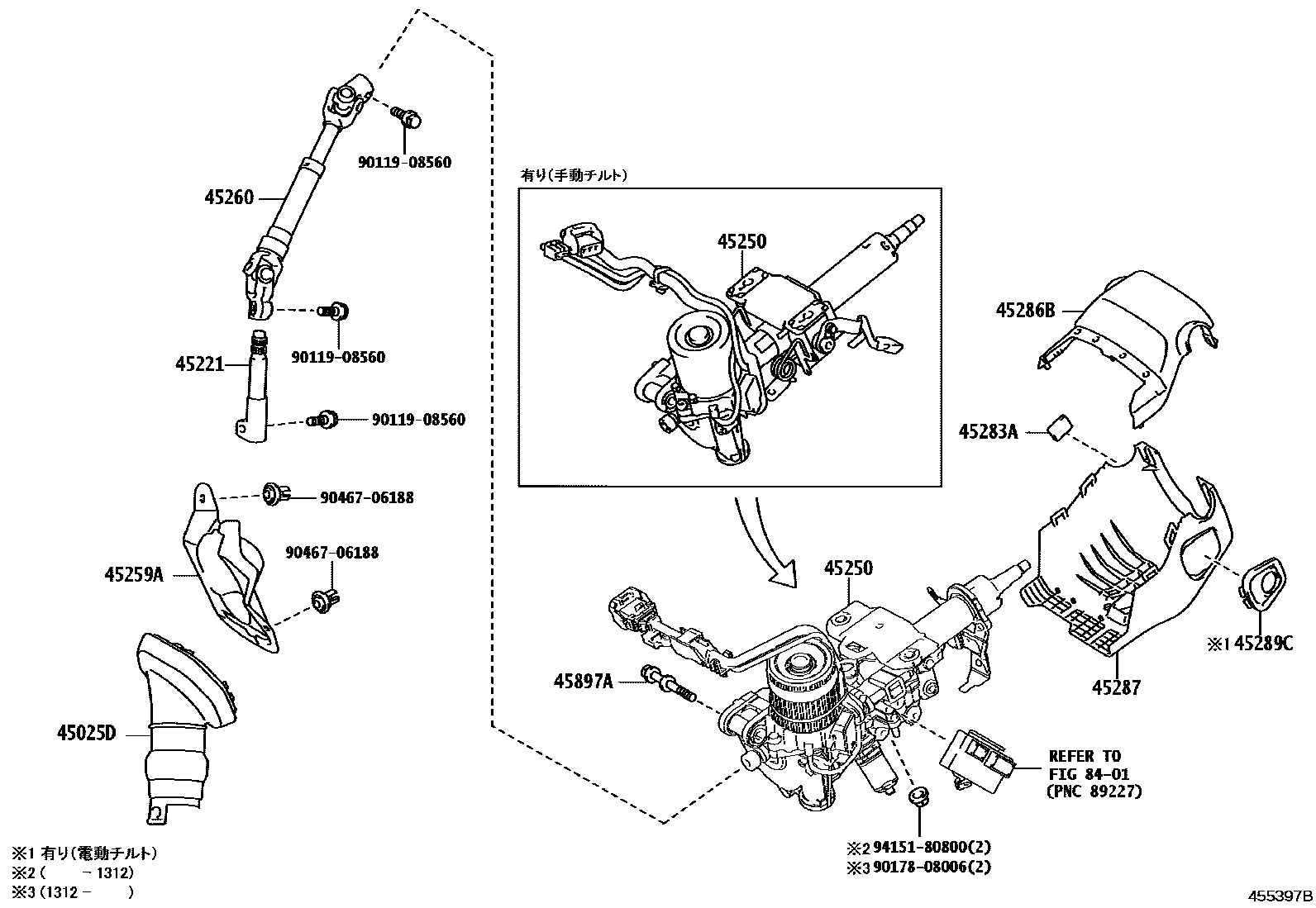

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12290iANF10200907-201301

45221SHAFT, STEERING INTERMEDIATE

main45221-75010iANF10201301

45250COLUMN ASSY, STEERING

main45250-75100supersedes 45250-75150iANF10200907-201109

main45250-75101supersedes 45250-75150iANF10201301-201308

main45250-75160supersedes 45250-75150iANF10201308

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-12060iANF10200907-201301

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-75010iANF10200907-201203

main45260-75030iANF10201204-201301

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iANF10200907-201301

45286BCOVER, STEERING COLUMN, UPR

main45286-75010-C0iANF10200907-201301

BLACK,TRIM2#

main45286-75010-E0iANF10201301-201802

DK. BROWN,TRIM0#

main45286-75020-C0iANF10200907-201301

main45286-75020-E0iANF10200907-201301

main45286-75030-C0iANF10201301-201802

main45286-75030-E0iANF10200907-201301

45287COVER, STEERING COLUMN, LWR

main45287-75010-C0iANF10200907-201301

BLACK,TRIM2#

main45287-75010-E0iANF10200907-201301

DK. BROWN,TRIM0#

main45287-75020-C0iANF10201301-201802

main45287-75020-E0iANF10201301-201802

45289CCOVER, STEERING COLUMN, LWR NO.2

main45289-75010-C0iANF10200907-201301

main45289-75010-E0iANF10200907-201301

45897ABOLT, TILT STEERING PAWL SET

main45897-20020iANF10200907-201209

main90119-10981iANF10201301

8401

9011908560

main90119-08560

9017808006

main90178-08006

9046706188

main90467-06188

9415180800

main94151-80800

15 parts on this diagram · 1 diagram in section
