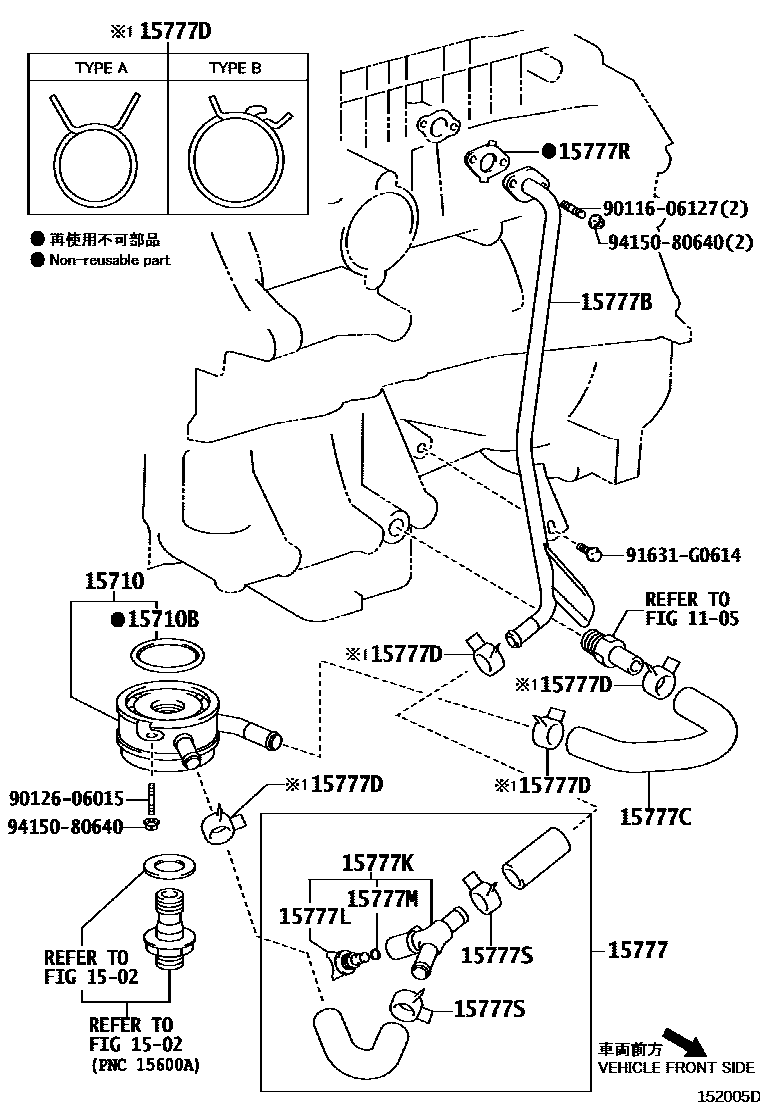

ENGINE OIL COOLER

0001 1 0002 1

1105

1502

15710COOLER ASSY, OIL

main15710-28020i2AZFXE..ANF10200907-201301

15710BRING, O(FOR OIL COOLER)

main90301-52006i2AZFXE..ANF10200907-201301

15777HOSE, OIL COOLER

main16267-28020i2AZFXE..ANF10200907-201212

main16267-28080i2AZFXE..ANF10201212-201301

15777BPIPE, OIL COOLER

main16279-28010i2AZFXE..ANF10200907-201301

15777CHOSE, OIL COOLER

main16281-28010i2AZFXE..ANF10200907-201301

15777DCLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)

main96134-41900×4i2AZFXE..ANF10200907-201207

main96136-42201×4i2AZFXE..ANF10201207-201301

15777KCOCK ASSY, DRAIN(FOR OIL COOLER HOSE)

main90910-09119i2AZFXE..ANF10200907-201212

15777LPLUG,AIR(FOR OIL COOLER DRAIN COCK)

main23322-54010i2AZFXE..ANF10200907-201212

15777MRING, O(FOR OIL COOLER DRAIN COCK)

main16492-21050i2AZFXE..ANF10200907-201212

15777RGASKET(FOR OIL COOLER PIPE UNION BOLT)

main16258-28040i2AZFXE..ANF10200907-201301

15777SCLAMP OR CLIP, HOSE

main96134-41900×2i2AZFXE..ANF10200907-201212

9011606127

main90116-06127

9012606015

main90126-06015

91631G0614

main91631-G0614

9415080640

main94150-80640

17 parts on this diagram · 2 diagrams in section
