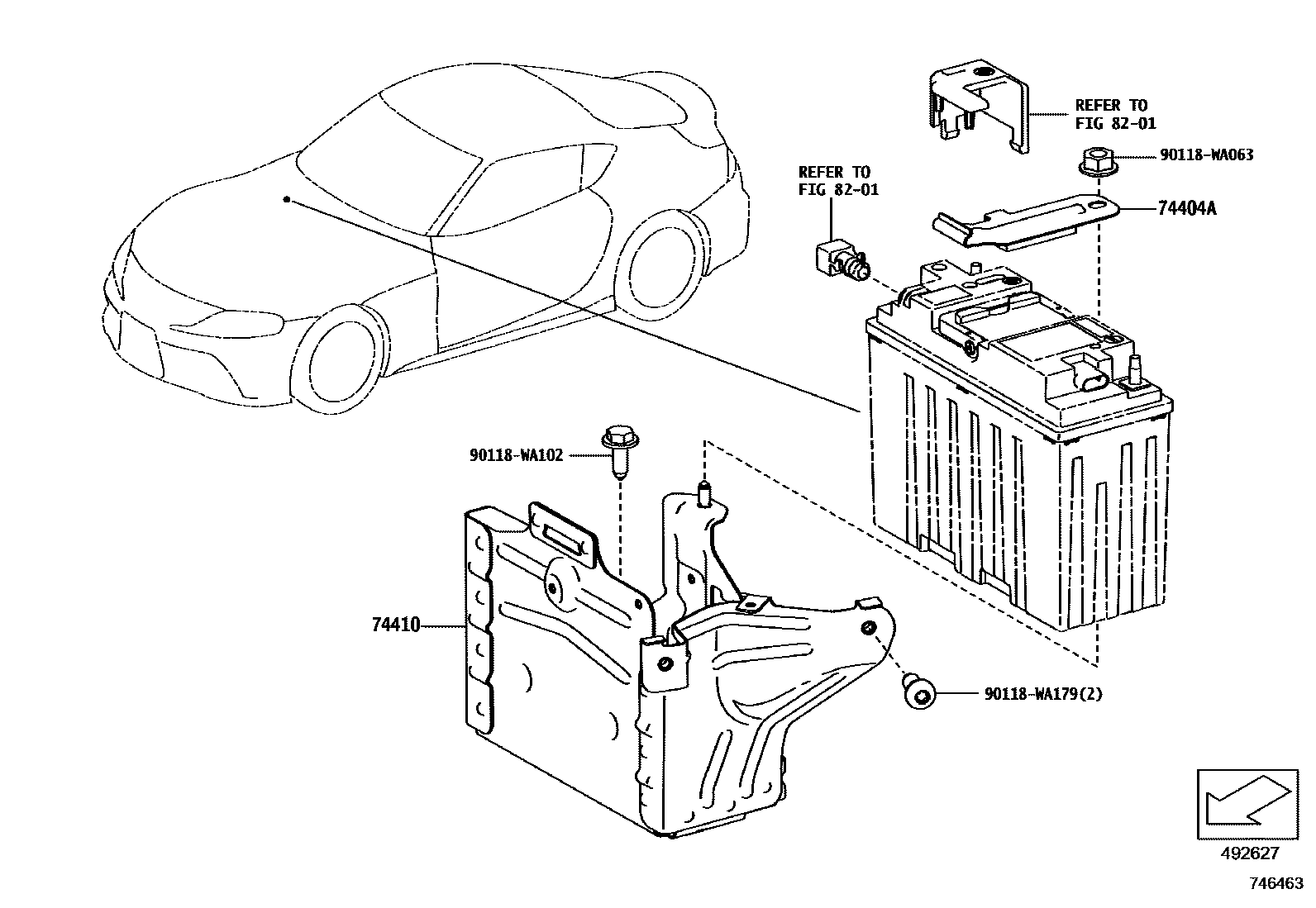

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-WAA01iDB06,26,86202207

74410CARRIER ASSY, BATTERY

main74410-WAA01iDB06,26,86202207

8201

90118WA063

main90118-WA063

90118WA102

main90118-WA102

90118WA179

main90118-WA179

6 parts on this diagram · 1 diagram in section
