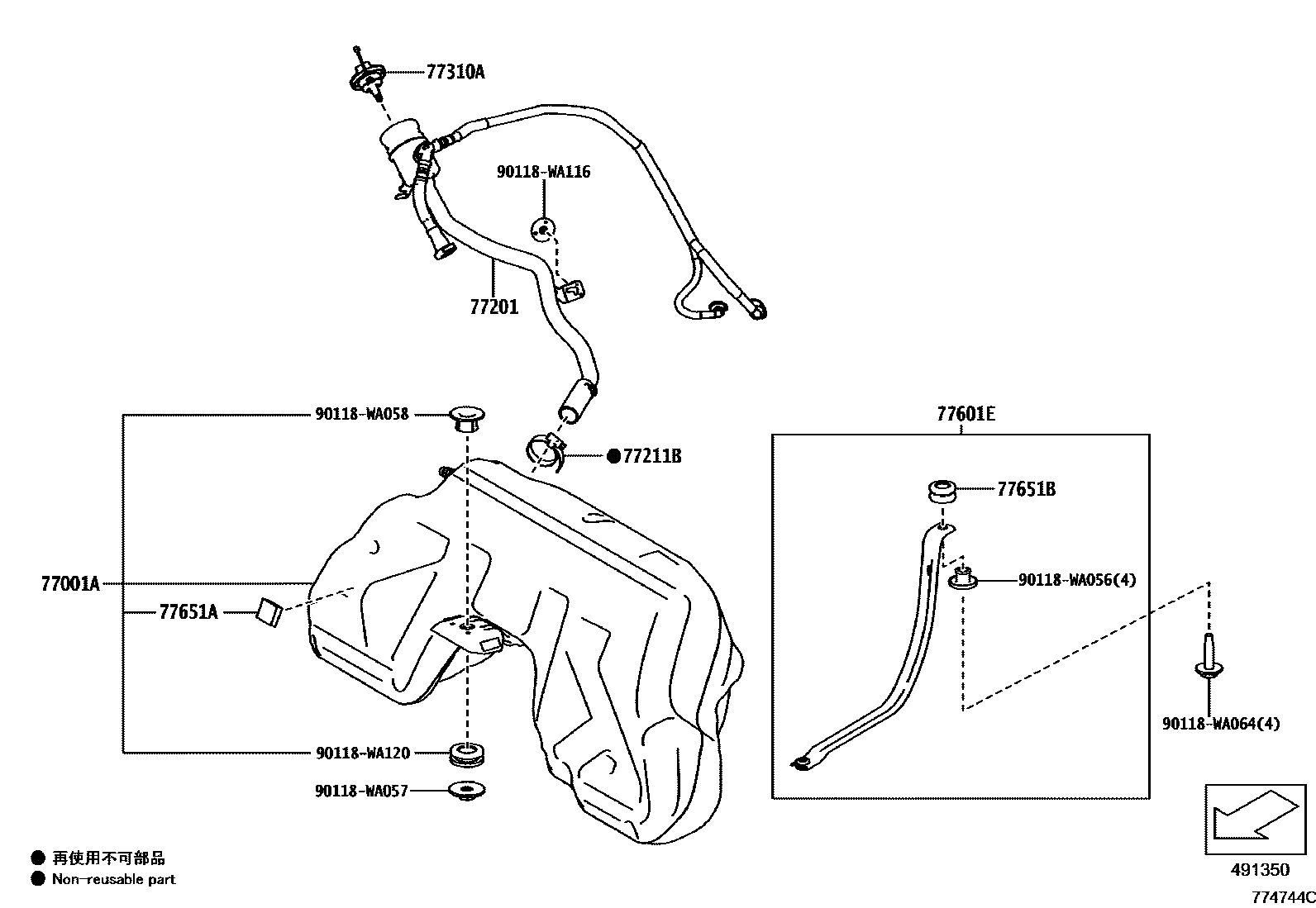

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

77001ATANK SUB-ASSY, FUEL

main77001-WAA01iDB22,82201903

77201PIPE SUB-ASSY, FUEL TANK INLET

main77210-WAA01iDB42201903-202002

77211BCLAMP (FOR FUEL FILLER PIPE)

main90118-WA685iDB42201903-202002

77310ACAP ASSY, FUEL TANK

main77300-WAA01iDB42201903-202002

77601EBAND SUB-ASSY, FUEL TANK

main77601-WAA01×2iDB42201903-202002

77651ACUSHION, FUEL TANK, NO.1

main77651-WAA01×8iDB42201903-202002

77651BCUSHION, FUEL TANK

main77656-WAA01×4iDB42201903-202002

90118WA056

main90118-WA056

90118WA057

main90118-WA057

90118WA058

main90118-WA058

90118WA064

main90118-WA064

90118WA116

main90118-WA116

90118WA120

main90118-WA120

13 parts on this diagram · 5 diagrams in section
