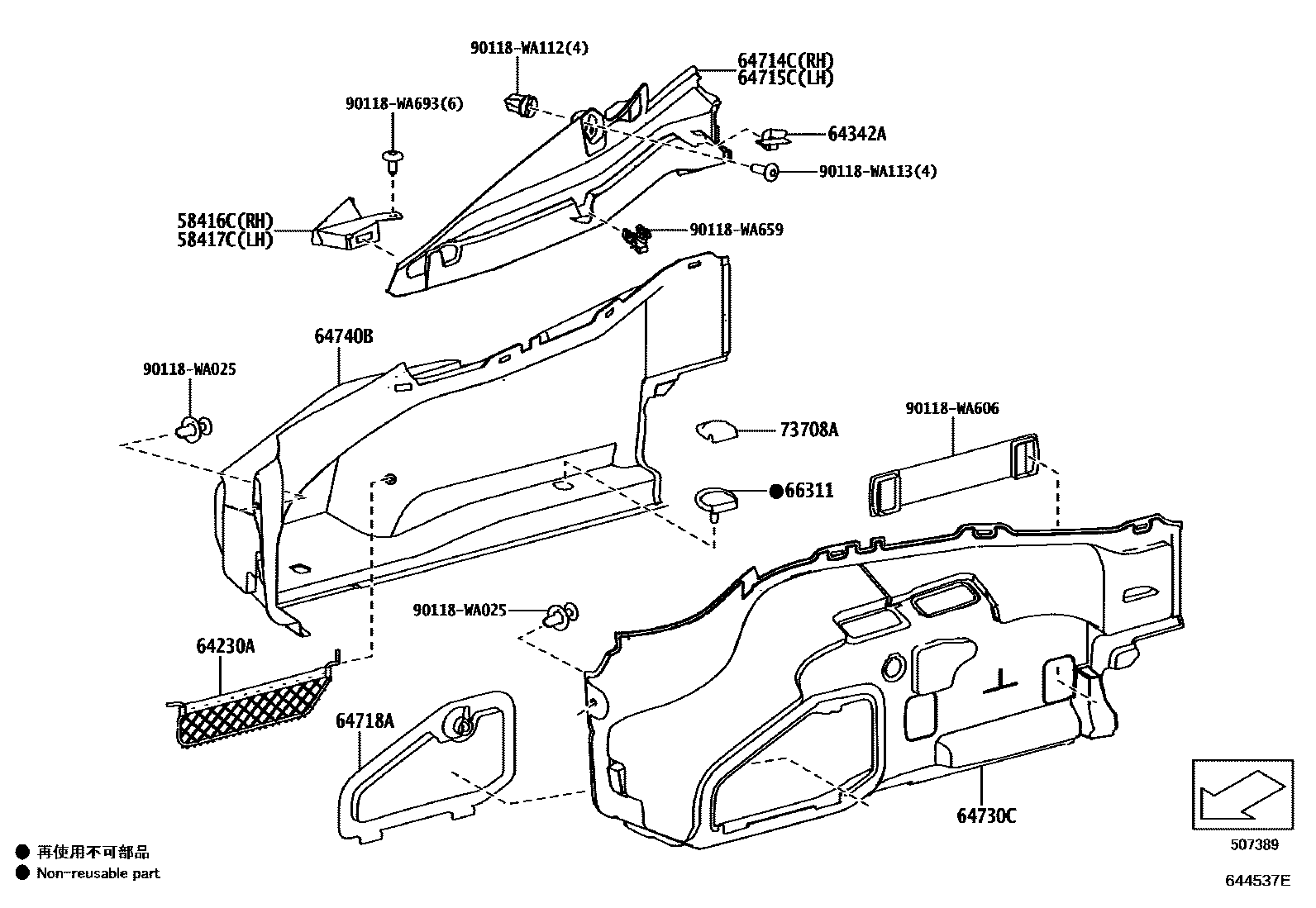

DECK BOARD & DECK TRIM COVER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

58416CBRACKET, DECK BOARD, NO.1 RH

main58416-WAA01iDB22,82201903

58417CBRACKET, DECK BOARD, NO.1 LH

main58417-WAA02iDB42201903-202002

64230ANET ASSY, ROOM PARTITION

main64230-WAA01iDB22,82201903

64342ACLIP

main90118-WA660iDB42201903-202002

main90118-WA661iDB22,82201903

64714CCOVER, DECK SIDE TRIM, RH

main64714-WAA01iDB42201903-202002

64715CCOVER, DECK SIDE TRIM, LH

main64715-WAA01iDB22,82201903

64718ACOVER, DECK TRIM SERVICE HOLE

main64718-WAA03iDB42201903-202002

64730CBOARD, DECK TRIM SIDE, RH

main64721-WAA01iDB42201903-202002

64740BBOARD, DECK TRIM SIDE, LH

main64722-WAA01iDB42201903-202002

66311HOOK, ROPE

main66311-WAA01×4iDB22,82201903

73708ABRACKET SET, TETHER ANCHOR

main73708-WAA01×4iDB42201903-202002

90118WA025

main90118-WA025

90118WA112

main90118-WA112

90118WA113

main90118-WA113

90118WA606

main90118-WA606

90118WA659

main90118-WA659

90118WA693

main90118-WA693

17 parts on this diagram · 6 diagrams in section
