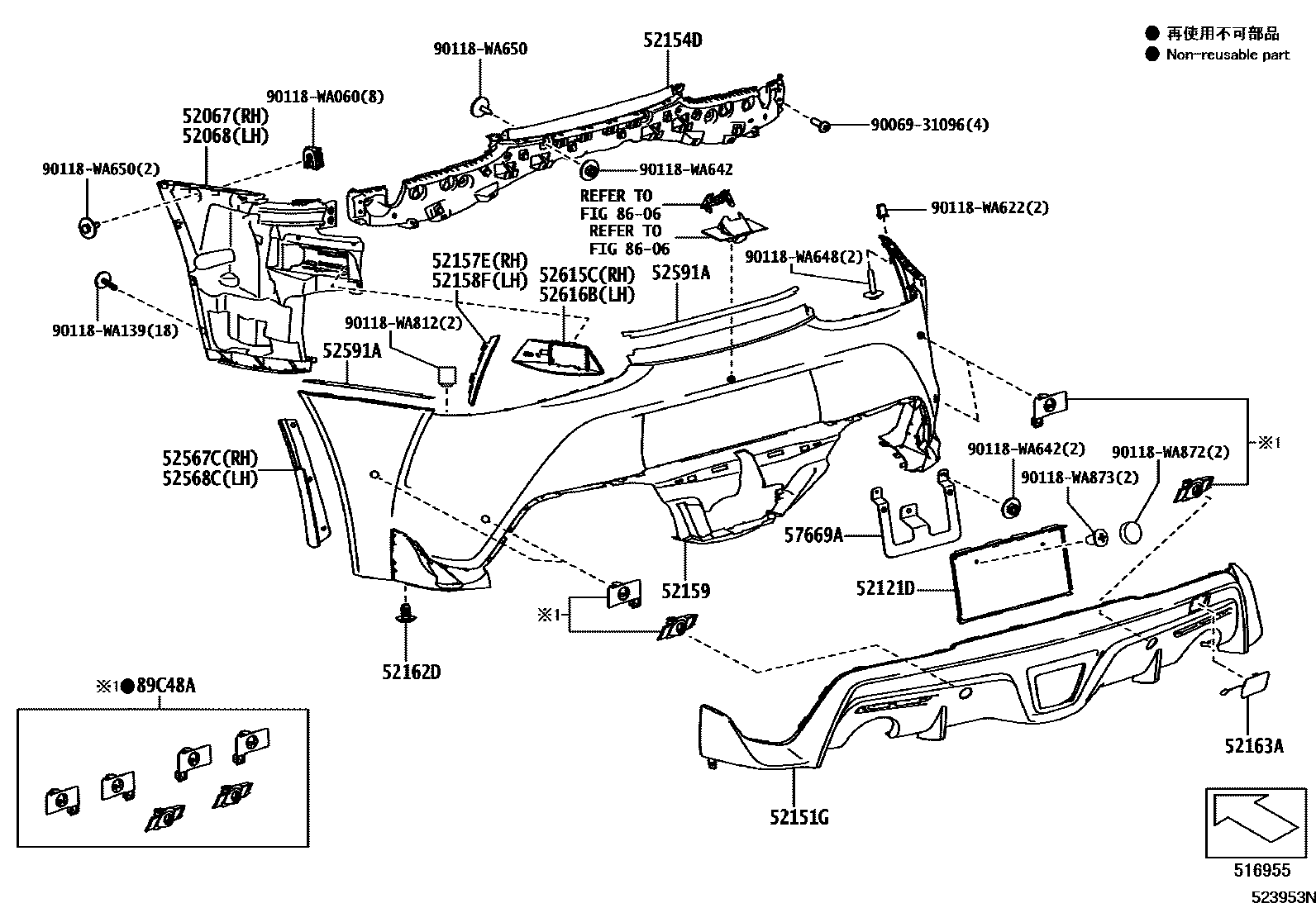

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52067SUPPORT SUB-ASSY, REAR BUMPER SIDE, RH

main52155-WAA01iDB42201903-202002

52068SUPPORT SUB-ASSY, REAR BUMPER SIDE, LH

main52156-WAA01iDB42201903-202002

52121DBRACKET, REAR LICENSE PLATE MOUNTING

main52453-WAA01iDB22,82201903

main52453-WAA01iDB02201903-202002

52151GEXTENSION, REAR BUMPER

main52108-WAA01iDB22,82201903-202002

sub52108-WAA05

main52108-WAA02iDB22,82201903-202002

main52108-WAA05iDB22,82201903

52154DSUPPORT, REAR BUMPER, NO.1

main52154-WAA01iDB02201903-202002

52157ETRIM, AIR INLET, RH

main52157-WAA01iDB42201903-202002

52158FTRIM, AIR INLET, LH

main52158-WAA01iDB42201903-202002

52159COVER, REAR BUMPER

main52159-WAA07iDB42201903-202002

main52159-WAA08iDB22,82201903-202002

52162DPIECE, REAR BUMPER

main90118-WA025iDB42201903-202002

52163APLATE, REAR BUMPER, RH

main52161-WAA02iDB42201903-202512

52567CRETAINER, REAR BUMPER LOWER SIDE, RH

main52567-WAA01iDB42201903-202002

52568CRETAINER, REAR BUMPER LOWER SIDE, LH

main52568-WAA01iDB42201903-202002

52591ASEAL, REAR BUMPER

main90118-WA646iDB02201903-202002

main90118-WA647iDB22,82201903-202002

main90118-WA768iDB42201903-202002

52615ABSORBER, REAR BUMPER ENERGY

main52615-WAA01iDB42201903-202002

52615CABSORBER FUNNEL, RH

main52615-WAA02iDB42201903-202002

52616BABSORBER FUNNEL, LH

main52616-WAA02iDB42201903-202002

57669ABRACKET, REAR LICENSE PLATE SUPPORT

main57669-WAA01iDB42201903-202002

8606

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-WAA03iDB42201903-202002

9006931096

main90069-31096

90118WA060

main90118-WA060

90118WA139

main90118-WA139

90118WA622

main90118-WA622

90118WA642

main90118-WA642

90118WA648

main90118-WA648

90118WA650

main90118-WA650

90118WA812

main90118-WA812

90118WA872

main90118-WA872

90118WA873

main90118-WA873

29 parts on this diagram · 2 diagrams in section
