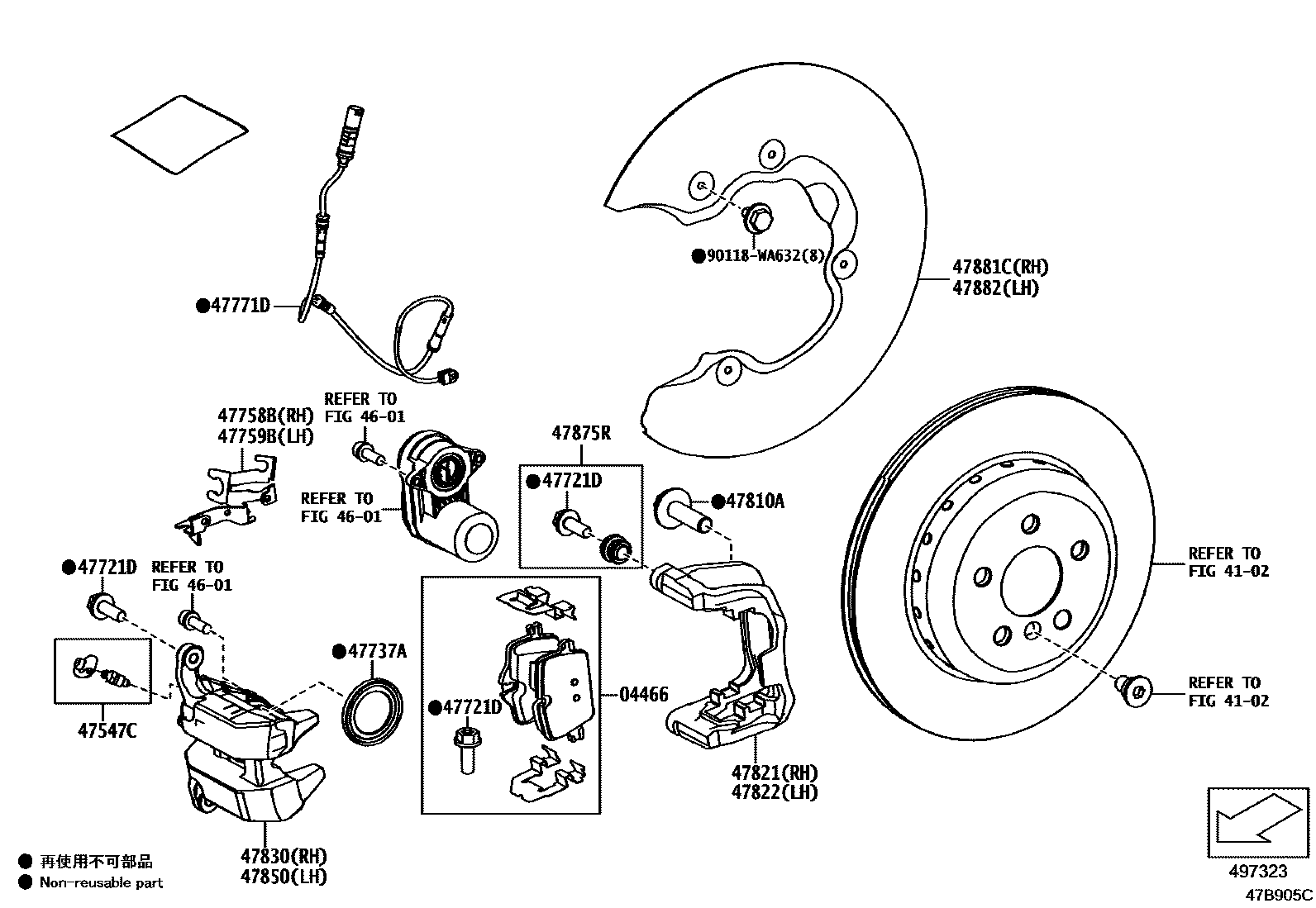

REAR DISC BRAKE CALIPER & DUST COVER
4102
4601
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
47758BBRACKET, WIRE CLAMP, RH NO.1
47759BBRACKET, WIRE CLAMP, LH NO.1
47771DWIRE, PAD WEAR INDICATOR RH
47810ABOLT, HEXAGON(FOR REAR CALIPER)
47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)
47881CCOVER, DISC BRAKE DUST, REAR RH
47882COVER, DISC BRAKE DUST, REAR LH
90118WA632
main90118-WA632
18 parts on this diagram · 1 diagram in section
