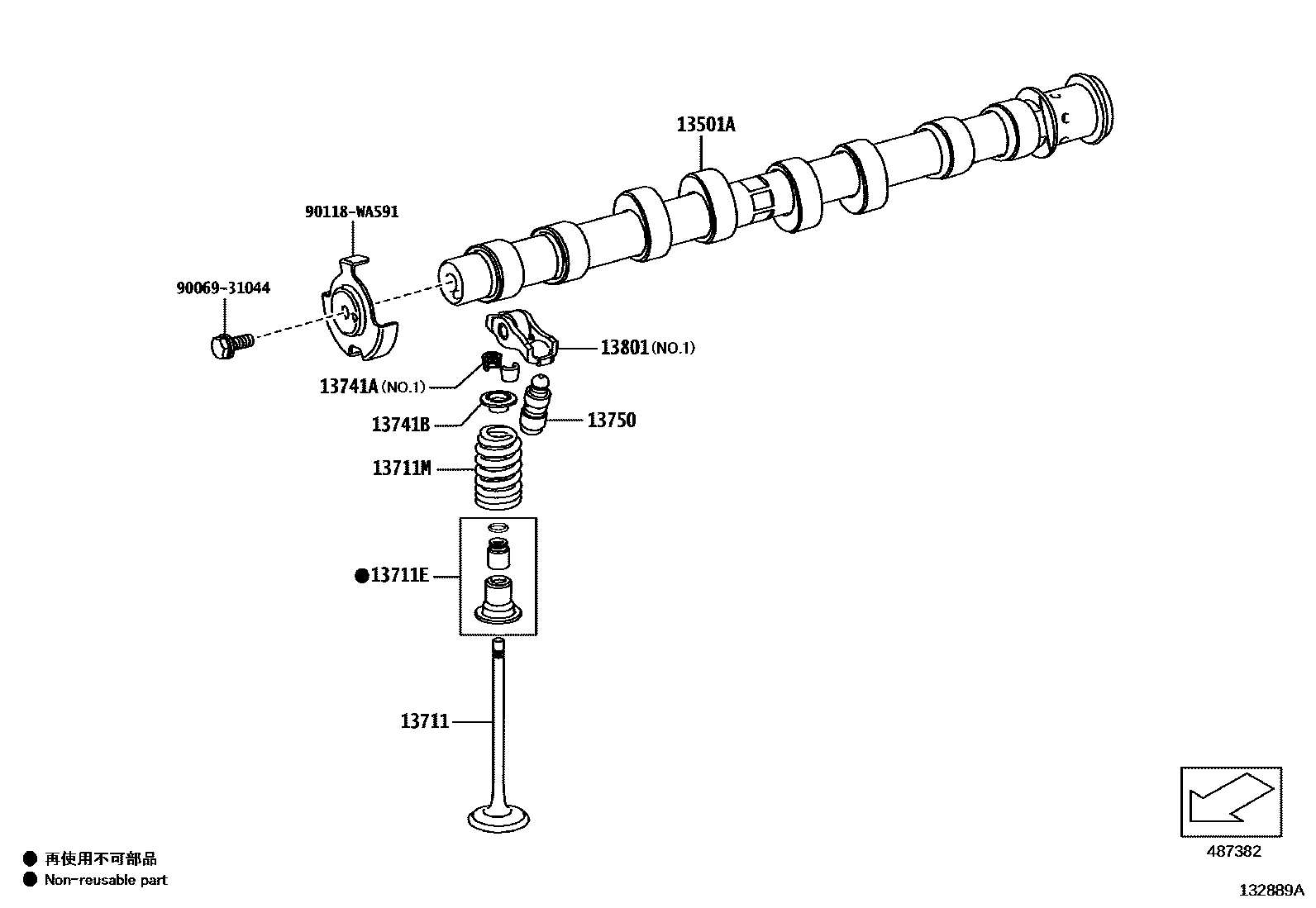

CAMSHAFT & VALVE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

13501ACAMSHAFT SUB-ASSY, INTAKE

main13501-WAA01iB48#..DB22,82201903

main13501-WAA02iB58..DB42201903-202002

13711VALVE, INTAKE

main13711-WAA01×12iB58..DB42201903-202002

13711ESEAL, INTAKE VALVE STEM OIL

main13734-WAA01iB48#..DB22,82201903

main13734-WAA03iB58H..DB02202007

13711MSPRING, COMPRESSION(FOR INTAKE VALVE)

main90118-WA772×12iB58..DB42201903-202002

13741ALOCK, VALVE SPRING RETAINER

main90118-WA001×24iB58H..DB02202007

main90118-WA004×24iB58..DB42201903-202002

13741BRETAINER, INTAKE VALVE SPRING

main13741-WAA01×12iB58..DB42201903-202002

13750ADJUSTER ASSY, VALVE LASH

main13750-WA012×12iB58..DB42201903-202002

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-WAA01×12iB58H..DB02202007

main13801-WAA02×12iB58..DB42201903-202002

main13801-WAA03×12iB58..DB42201903-202002

main13801-WAA04×8iB48#..DB22,82201903

main13801-WAA05×8iB48#..DB22,82201903

main13801-WAA06×12iB58..DB42201903-202002

9006931044

main90069-31044

90118WA591

main90118-WA591

10 parts on this diagram · 7 diagrams in section
