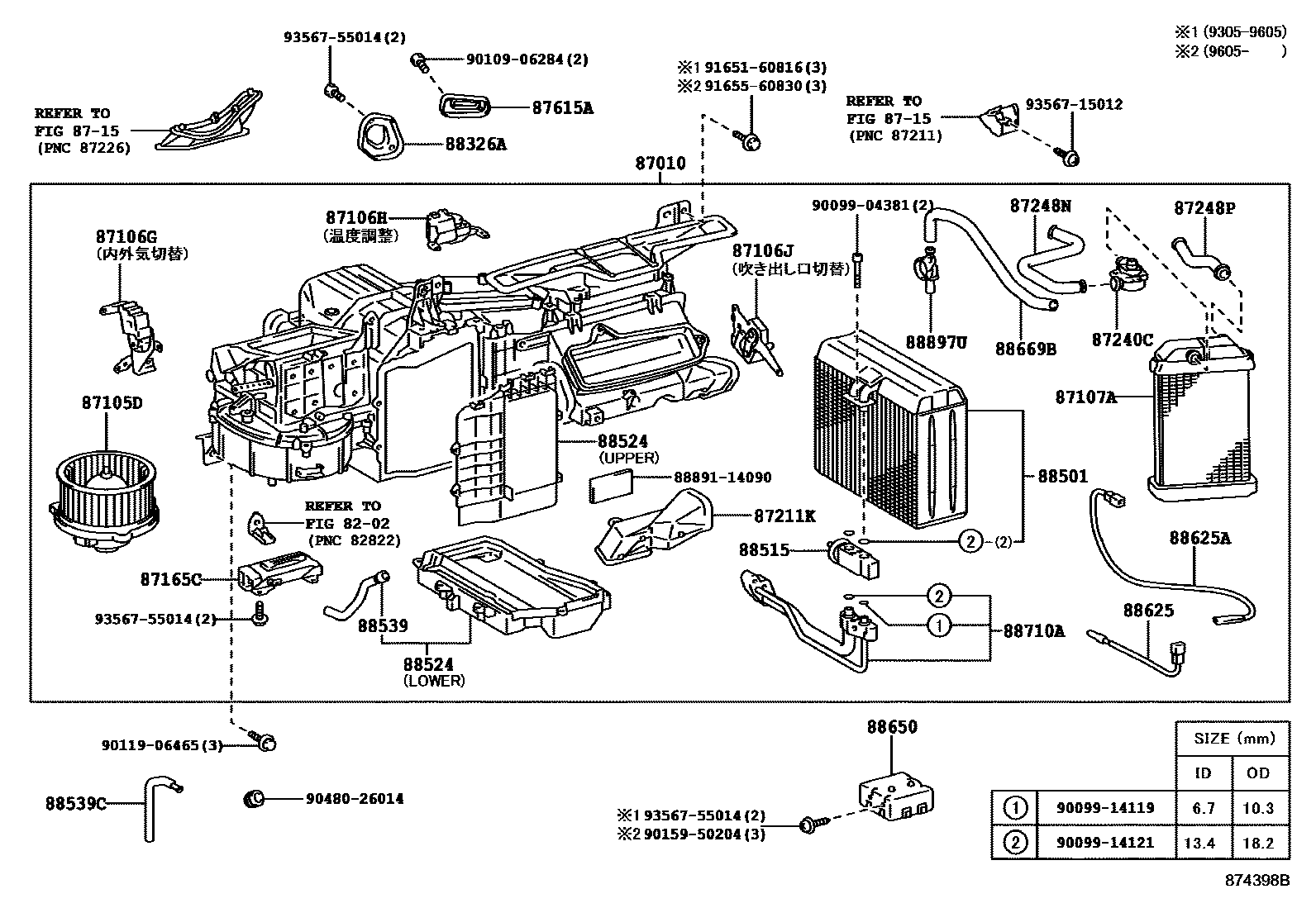

HEATING & AIR CONDITIONING - COOLER UNIT

8202

87010UNIT ASSY, AIR CONDITIONER

main87010-14010iJZA80199305-199605

main87010-14030iJZA80199605-199908

87105DFAN SUB-ASSY, BLOWER

main87105-14040iJZA80199305-199908

87106GSERVO SUB-ASSY, DAMPER(FOR BLOWER)

main87106-14080iJZA80199305-199908

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-14090iJZA80199305-199908

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-14100iJZA80199305-199908

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-14190iJZA80199305-199908

8715

87165CCONTROL, BLOWER MOTOR

main87165-14010iJZA80199305-199908

main87165-14020iJZA80200103

87211KDUCT, AIR

main87211-14090iJZA80199305-199908

87240CVALVE ASSY, HEATER WATER

main87240-14150iJZA80199305-199908

87248NPIPE, HEATER WATER INLET

main87248-14230iJZA80199305-199908

87248PPIPE, HEATER WATER OUTLET

main87248-14240iJZA80199305-199908

87615ARETAINER, INSULATOR

main87615-24010iJZA80199305-199908

88326APLATE, COVER

main88326-24010iJZA80199305-199908

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-14240iJZA80199305-199410

main88501-14241iJZA80199410-199908

88515VALVE, COOLER EXPANSION

main88515-20100iJZA80199305-199908

sub88515-22240

88524PANEL, COOLING BOX, BOTTOM

main88524-14010iJZA80199908

LOWER

main88524-14030iJZA80199305-199908

UPPER

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-24060iJZA80199305-199908

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88539-14100iJZA80199305-199908

88625THERMISTOR, COOLER, NO.1

main88625-14120iJZA80199908

sub88625-24050

88625ATHERMISTOR, COOLER NO.2

main88790-14130iJZA80199305-199908

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-14270iJZA80199305-199508

main88650-14271iJZA80199508-199605

main88650-14272iJZA80199605-199908

88669BHOSE, COOLER AIR

main88669-14030iJZA80199305-199908

88710ATUBE ASSY, AIR CONDITIONER

main88710-14110iJZA80199305-199605

main88710-14160iJZA80199605-199908

88897UPIPE, ASPIRATOR

main88897-22100iJZA80199305-199908

8889114090PACKING (FOR COOLER)

main88891-14090

9009904381

main90099-04381

9009914119

main90099-14119

9009914121

main90099-14121

9010906284

main90109-06284

9011906465

main90119-06465

9015950204

main90159-50204

9048026014

main90480-26014

9165160816

main91651-60816

9165560830

main91655-60830

9356715012

main93567-15012

9356755014

main93567-55014

38 parts on this diagram · 1 diagram in section
