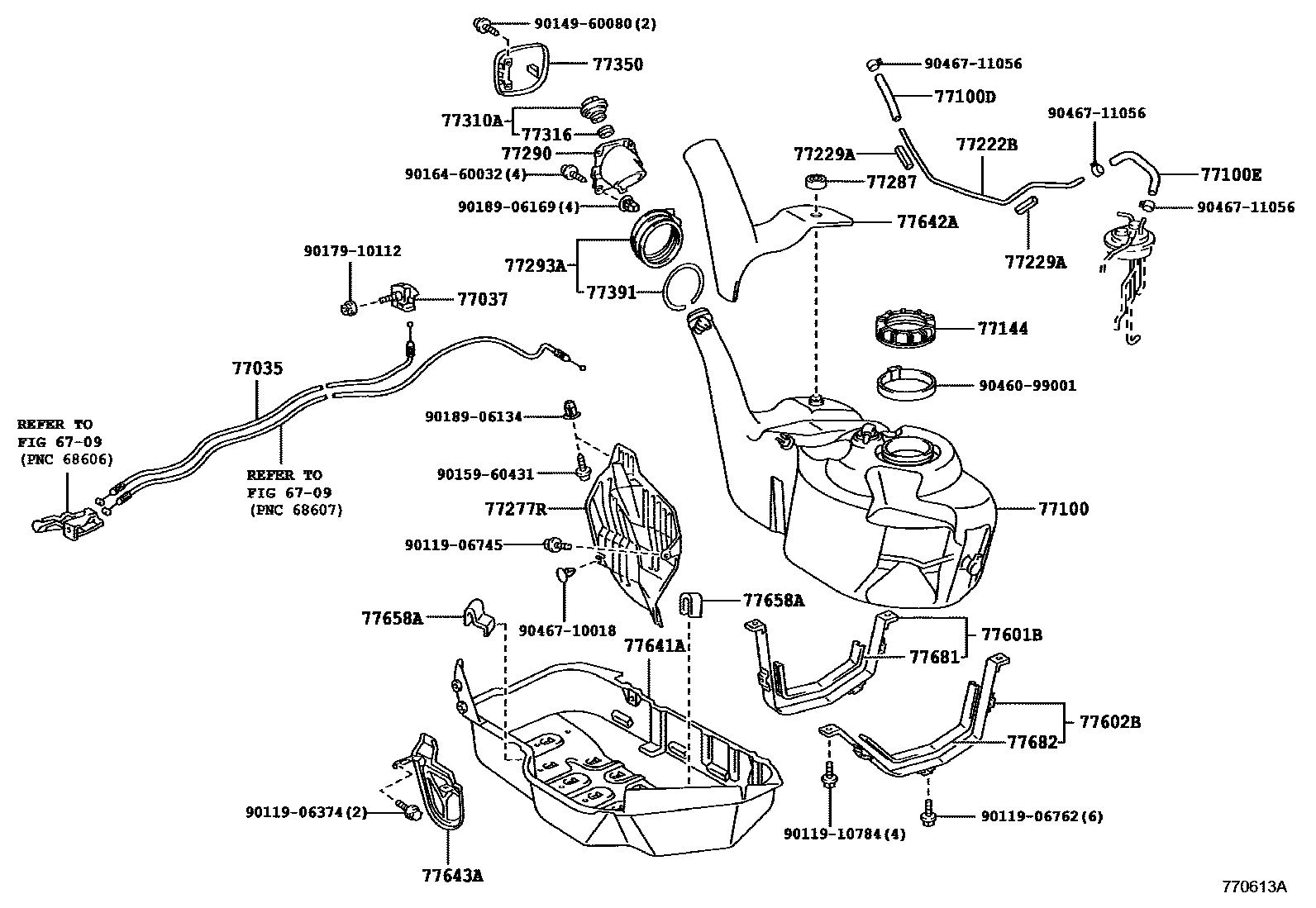

FUEL TANK & TUBE
6709
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
CHUUHATU
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100TANK ASSY, FUEL
77100DHOSE, FUEL, NO.1(FOR FUEL TANK)
sub95337-06020
77100EHOSE, FUEL, NO.2(FOR FUEL TANK)
sub95337-06020
77144RETAINER, FUEL PUMP GAUGE
77222BTUBE, FUEL TANK BREATHER, NO.2
77229APLATE, FUEL TANK BREATHER TUBE SEPARATE
77277RPROTECTOR, FUEL TANK FILLER PIPE
77287SUPPORT, TANK TO CANISTER TUBE, NO.1
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77310ACAP ASSY, FUEL TANK
sub77310-14090
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77391RING, FUEL INLET BOX
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77641APROTECTOR, FUEL TANK, NO.1
77642APROTECTOR, FUEL TANK, NO.2
77643APROTECTOR, FUEL TANK, NO.3
77658APROTECTOR, FUEL TANK EDGE, NO.1
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
9011906374
main90119-06374
9011906745
main90119-06745
9011906762
main90119-06762
9011910784
main90119-10784
9014960080
main90149-60080
9015960431
main90159-60431
9016460032
main90164-60032
9017910112
main90179-10112
9018906134
main90189-06134
9018906169
main90189-06169
9046099001
main90460-99001
9046710018
main90467-10018
9046711056
main90467-11056
38 parts on this diagram · 2 diagrams in section
