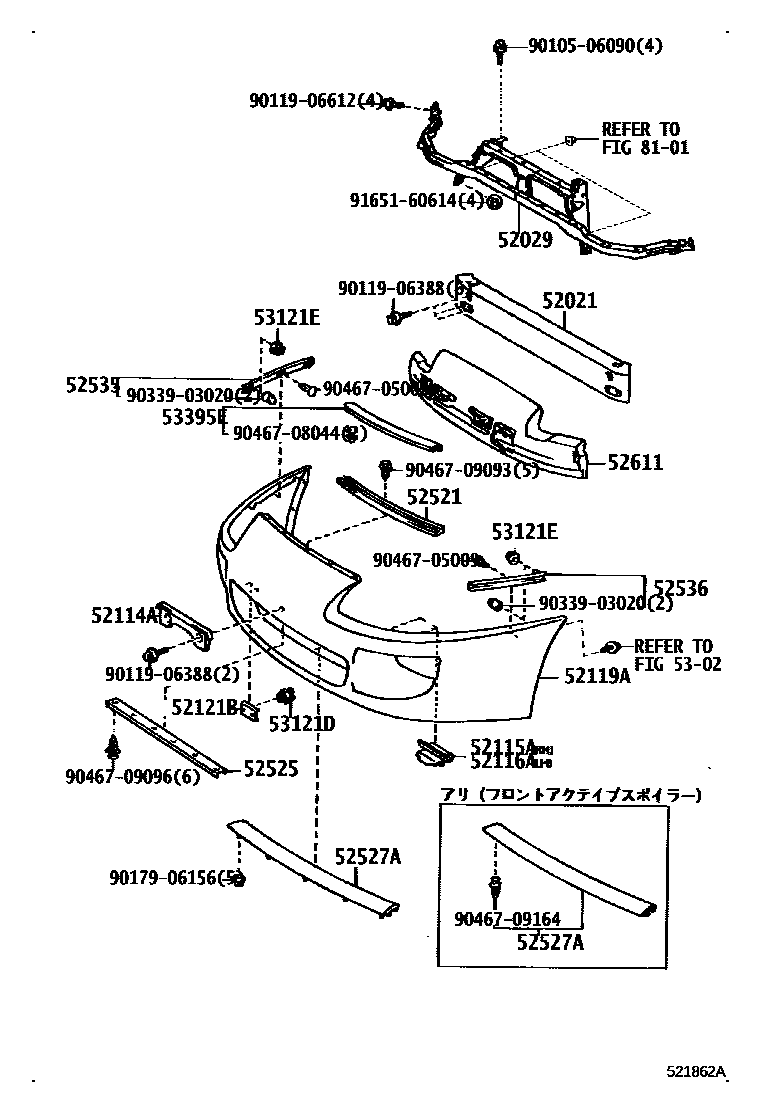

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
52121BBRACKET, FRONT LICENCE PLATE MOUNTING
52521RETAINER, FRONT BUMPER, UPPER CENTER
52525RETAINER, FRONT BUMPER, LOWER CENTER
52527ARETAINER, FRONT BUMPER, LOWER CENTER NO.2
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
5302
53121DCLIP(FOR FRONT BUMPER), NO.2
53395ESEAL, HOOD TO FRONT END PANEL
8101
9010506090
main90105-06090
9011906388
main90119-06388
9011906612
main90119-06612
9017906156
main90179-06156
9033903020
main90339-03020
9046705009
main90467-05009
9046708044
main90467-08044
9046709093
main90467-09093
9046709096
main90467-09096
9046709164
main90467-09164
9165160614
main91651-60614
29 parts on this diagram · 1 diagram in section
