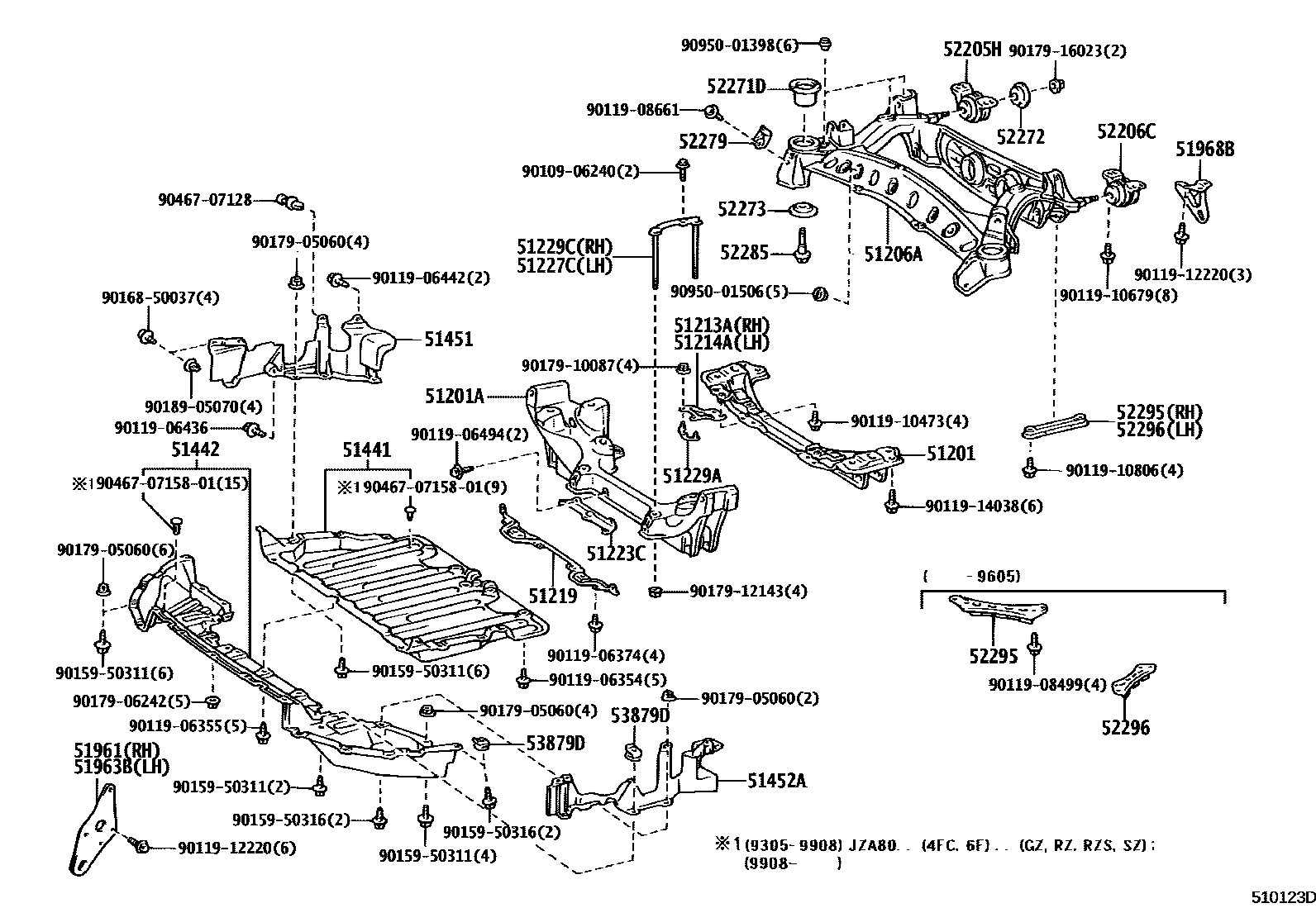

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1��(���� ������ �����)

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-24030iJZA80199305-199709

main51201-24031iJZA80199709

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51211-24020iJZA80199305

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-14090iJZA80199605-199709

main51206-14091iJZA80199709

main51206-14100iJZA80199305-199605

sub90119-10806

51213AEXTENSION, FRONT CROSSMEMBER, UPPER RH

main51213-24010iJZA80199305-199709

main51213-24011iJZA80199709

51214AEXTENSION, FRONT CROSSMEMBER, UPPER LH

main51214-24010iJZA80199305-199709

main51214-24011iJZA80199709

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-24011iJZA80199305

51223CBRACKET, FRONT SUSPENSION MEMBER BRACKT, NO.1

main51223-24010iJZA80199305

51227CPLATE, SUSPENSION MEMBER SET, NO.2

main51227-24010iJZA80199305

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main51229-24030×2iJZA80199305

51229CPLATE, SUSPENSION MEMBER SET

main51229-24020iJZA80199305

51441COVER, ENGINE UNDER, NO.1

main51440-14010iJZA80..(4FC,6F)..(GZ,RZ,RZS,SZ)199305-199908

main51441-14140iJZA80..MTM..TWC199305-199908

51442COVER, ENGINE UNDER, NO.2

main51420-14010iJZA80199908

main51442-14040iJZA80..MTM..TWC199305-199908

51451COVER, ENGINE UNDER, NO.4 RH

main51451-14010iJZA80..RZ,RZS,SZ,SZR199305

main51451-14020iJZA80..RZ199305-199408

51452ACOVER, ENGINE UNDER, NO.4 LH

main51452-14030iJZA80..RZ,RZS,SZ,SZR199305

main51452-14040iJZA80..GZ199305-199605

51961HOOK, NO.1

main51960-24010iJZA80..TWT199305

main51964-24010iJZA80..TWC199305

51963BHOOK, TRANSPORT, FRONT RH

main51964-24010iJZA80199305

51968BHOOK, TRANSPORT, REAR LH

main51968-14100iJZA80199305

52205HCUSHION SUB-ASSY, BODY MOUNTING, REAR RH

main52205-14020iJZA80199305-199605

main52205-14030iJZA80199605-199609

main52205-14040iJZA80199609

52206CCUSHION SUB-ASSY, BODY MOUNTING, REAR LH

main52206-14010iJZA80199305-199605

main52206-14020iJZA80199605-199609

main52206-14030iJZA80199609

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-14070×2iJZA80199305-199605

main52271-14080×2iJZA80199605

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-14040iJZA80199305

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-14040×2iJZA80199305-199404

main52273-14060×2iJZA80199404

52279RETAINER, REAR SUSPENSION MEMBER CUSHION

main52279-24010×2iJZA80199305-199605

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-50010×2iJZA80199305-199505

main52285-50011×2iJZA80199505

52295BRACE, REAR SUSPENSION MEMBER, RH

main51503-14020iJZA80199305-199605

main52295-14010iJZA80199605

52296BRACE, REAR SUSPENSION MEMBER, LH

main51503-14020iJZA80199305-199605

main52295-14010iJZA80199605

53879DRETAINER, FRONT FENDER LINER

main53879-17020×2iJZA80199305

9010906240

main90109-06240

9011906354

main90119-06354

9011906355

main90119-06355

9011906374

main90119-06374

9011906436

main90119-06436

9011906442

main90119-06442

9011906494

main90119-06494

9011908499

main90119-08499

9011908661

main90119-08661

9011910473

main90119-10473

9011910679

main90119-10679

9011910806

main90119-10806

9011912220

main90119-12220

9011914038

main90119-14038

9015950311

main90159-50311

9015950316

main90159-50316

9016850037

main90168-50037

9017905060

main90179-05060

9017906242

main90179-06242

9017910087

main90179-10087

9017912143

main90179-12143

9017916023

main90179-16023

9018905070

main90189-05070

9046707128

main90467-07128

904670715801

main90467-0715801

9095001398

main90950-01398

9095001506

main90950-01506

54 parts on this diagram · 2 diagrams in section
