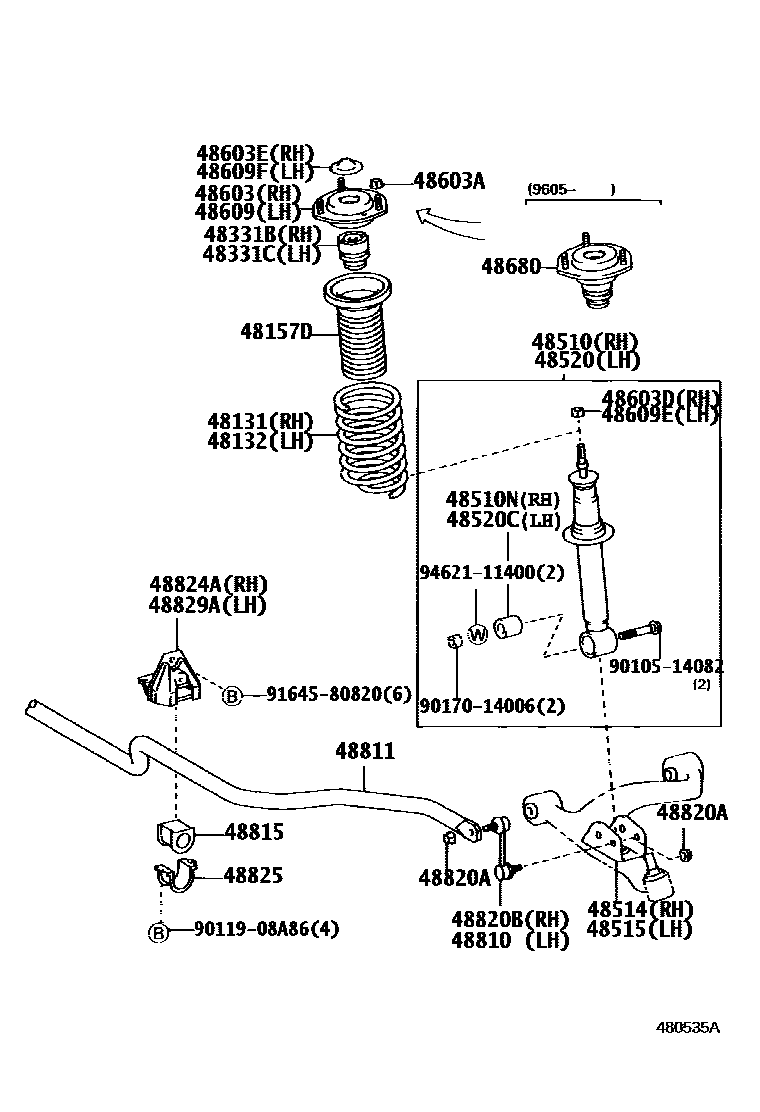

FRONT SPRING & SHOCK ABSORBER

0001 1 0003 1

48131SPRING, FRONT COIL, RH

main48131-1D561iJZA80..TWC199305-199312

sub48131-1D572

main48131-1D582iJZA80..TWC199312-199605

sub48131-1D572

main48131-1D601iJZA80..TWT199305-199312

main48131-1D602iJZA80..TWT199312-199605

sub48131-1D612

main48131-1D630iJZA80..RZ;JZA80..4FC..TWT199605

main48131-1D660iJZA80..SZR199605-199709

main48131-1D670iJZA80..SZ199605

main48131-1D710iJZA80..SZR199709

main48131-24450iJZA80..6F..RZS199605

48132SPRING, FRONT COIL, LH

main48131-1D561iJZA80..TWC199305-199312

sub48131-1D572

main48131-1D582iJZA80..TWC199312-199605

sub48131-1D572

main48131-1D601iJZA80..TWT199305-199312

main48131-1D602iJZA80..TWT199312-199605

sub48131-1D612

main48131-1D630iJZA80..RZ;JZA80..4FC..TWT199605

main48131-1D660iJZA80..SZR199605-199709

main48131-1D670iJZA80..SZ199605

main48131-1D710iJZA80..SZR199709

main48131-24450iJZA80..6F..RZS199605

48157DINSULATOR, FRONT COIL SPRING

main48157-24010×2iJZA80199305

48331BBUMPER, FRONT SPRING, RH

main48331-14080iJZA80199305-199605

48331CBUMPER, FRONT SPRING, LH

main48331-14080iJZA80199305-199605

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09015iJZA80..RZ,RZS,SZR199505-199511

BILSTEIN

main48510-09016iJZA80..RZ,RZS,SZR199511-199605

BILSTEIN

main48510-19275iJZA80..SZ199505-199605

main48510-19285iJZA80..SZ199305-199605

main48510-19305iJZA80..GZ199305-199605

main48510-19555iJZA80..SZ199605-200208

main48510-19565iJZA80..6F..RZS199605-200208

main48510-19575iJZA80..4FC..TWT199605-200208

MARK 48510-14730 OR 48510-14740

main48510-80001iJZA80..RZ,SZR199605-199709

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main90389-14028iJZA80..GZ,RZS,SZ199305

48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH

main48514-14020iJZA80..RZ,SZR199709-200208

main48514-24010iJZA80..RZS,SZ199709-200208

48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH

main48515-24010iJZA80199305

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-09015iJZA80..RZ,RZS,SZR199505-199511

BILSTEIN

main48510-09016iJZA80..RZ,RZS,SZR199511-199605

BILSTEIN

main48510-19275iJZA80..SZ199505-199605

main48510-19285iJZA80..SZ199305-199605

main48510-19305iJZA80..GZ199305-199605

main48510-19555iJZA80..SZ199605-200208

main48510-19565iJZA80..6F..RZS199605-200208

main48510-19575iJZA80..4FC..TWT199605-200208

MARK 48510-14730 OR 48510-14740

main48510-80001iJZA80..RZ,SZR199605-199709

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main90389-14028iJZA80..GZ,RZS,SZ199305

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48680-14050iJZA80199305-199506

main48680-14051iJZA80199506-199605

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-10200×6iJZA80199305

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-12002iJZA80200003

main94187-11200iJZA80199305-200003

48603EPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT RH)

main90950-01659iJZA80199305

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48680-14050iJZA80199305-199506

main48680-14051iJZA80199506-199605

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-12002iJZA80200003

main94187-11200iJZA80199305-200003

48609FPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT LH)

main90950-01659iJZA80199305

48680SUPPORT ASSY, FRONT SUSPENSION

main48680-14060×2iJZA80199605

48810LINK ASSY, FRONT STABILIZER, LH

main48820-24010iJZA80199305

48811BAR, STABILIZER, FRONT

main48811-14440iJZA80..TWC199305-199605

main48811-14460iJZA80..TWC199605

main48811-24100iJZA80..TWT199305

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14080×2iJZA80..TWT199305

main48815-14090×2iJZA80..TWC199305

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10054×4iJZA80199305

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-24010iJZA80199305

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-24010iJZA80199305

48825BRACKET, STABILIZER, NO.2

main48824-24030×2iJZA80199305

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48809-24020iJZA80199305

9010514082

main90105-14082

9011908A86

main90119-08A86

9017014006

main90170-14006

9164580820

main91645-80820

9462111400

main94621-11400

32 parts on this diagram · 2 diagrams in section
