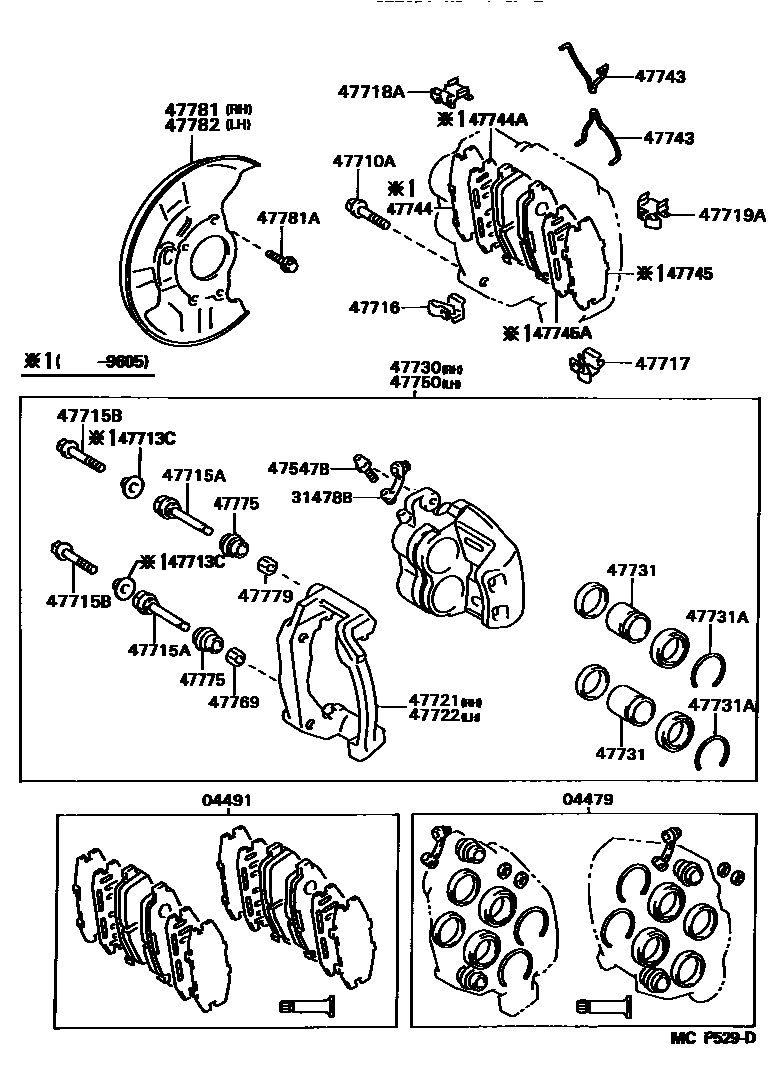

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1��(17��� ����� ��-�) 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-14120iJZA80..RZS,SZ,SZR199908

main04479-14140iJZA80199505-199605

04491PAD KIT, DISC BRAKE, FRONT

main04491-14320iJZA80199305-199401

main04491-14331iJZA80..TWT199408-199505

main04491-14360iJZA80199401-199505

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010×2iJZA80..TWT199408-199505

main31478-24030×2iJZA80199305-199605

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030×2iJZA80..RZ199605

main47547-27040×2iJZA80..RZS,SZ,SZR199908

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12175×4iJZA80199305-199908

47713CCOLLAR(FOR FRONT DISC BRAKE CYLINDER)

main90389-08101×4iJZA80199305-199508

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-24010×4iJZA80199305-199605

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90109-08214×4iJZA80199305-199605

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-24010×2iJZA80..RZS,SZ,SZR199605-199908

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-24020×2iJZA80199305-199605

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-24010×2iJZA80199305-199605

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-24020×2iJZA80199305-199605

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-14170iJZA80199305-199605

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-14060iJZA80199305-199605

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-14250iJZA80199305-199408

sub47730-24082

main47730-14260iJZA80..RZ199605

main47730-14280iJZA80199408-199508

main47730-14281iJZA80..RZS,SZ,SZR199908

47731PISTON, FRONT DISC BRAKE

main47731-14110×8iJZA80..RZS,SZ,SZR199605-199908

main47731-14130×4iJZA80..RZS,SZ,SZR199908

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-48044×8iJZA80..TWT199408-199505

main90522-50002×4iJZA80199305-199605

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-24020×4iJZA80..RZS,SZ,SZR199605-199908

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47745-14060×2iJZA80199305-199605

main47745-14100iJZA80199505-199605

main47745-14110iJZA80..TWT199408-199505

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-14130×2iJZA80199305-199605

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-14060×2iJZA80199305-199605

main47745-14100iJZA80..TWT199408-199505

main47745-14110iJZA80199505-199605

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47744-14130×2iJZA80199305-199605

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-14260iJZA80199305-199408

sub47750-24082

main47750-14270iJZA80..TWT199408-199505

main47750-14290iJZA80199408-199508

main47750-14291iJZA80..RZS,SZ,SZR199605-199908

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010×2iJZA80199305-199605

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-50010×4iJZA80199305-199605

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47769-50020×2iJZA80..RZS,SZ,SZR199605-199908

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-14150iJZA80..RZS,SZ,SZR199605-199908

main47781-14160iJZA80..RZ199605

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227×8iJZA80199908

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-14150iJZA80..RZS,SZ,SZR199605-199908

main47782-14160iJZA80..RZS,SZ,SZR199605-199908

29 parts on this diagram · 3 diagrams in section
