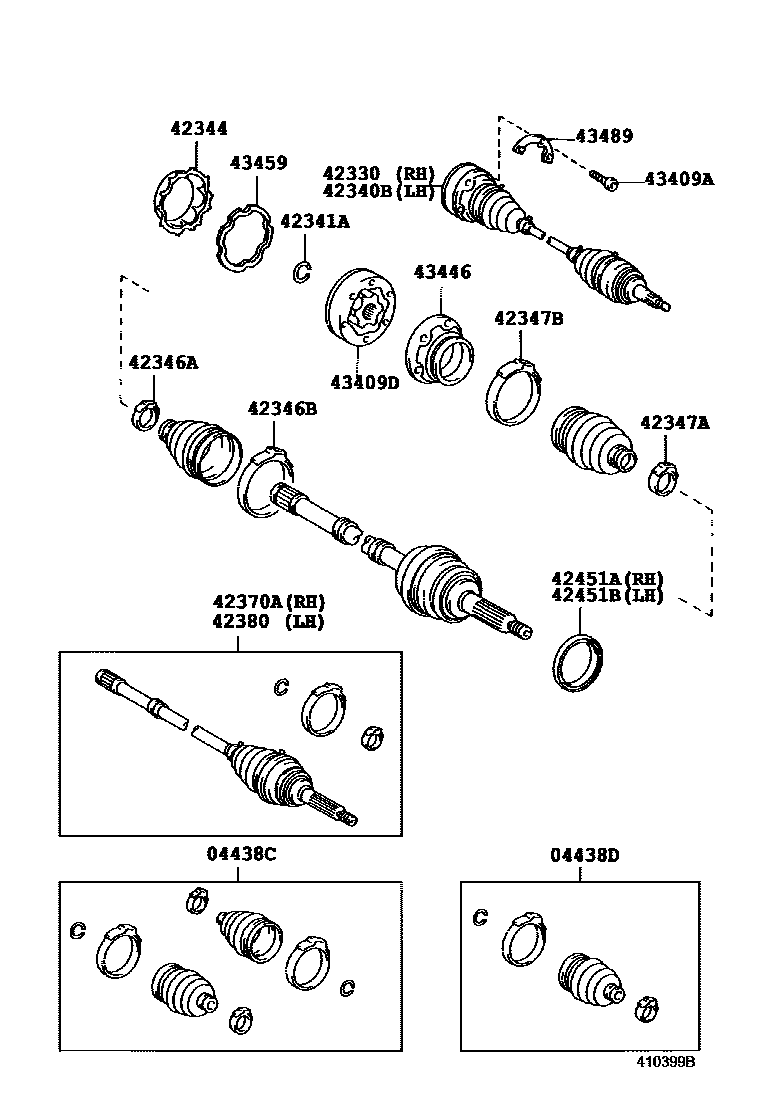

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1��(ABS)

04438CBOOT KIT, REAR DRIVE SHAFT

main04437-17040iJZA80..SZ199605-199709

sub04437-17041

main04437-24020iJZA80199305-199308

sub04437-24021

main04437-24021iJZA80199308-199404

sub04437-24040

main04437-24040iJZA80..RZ,RZS,SZR199404-199909

sub04437-24041

main04437-24041iJZA80..RZ,RZS,SZR199909

sub04429-22020

main04437-30060iJZA80..SZ199709

sub04429-30040

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04437-17030iJZA80..SZ199605-199709

sub04438-33011

main04437-24010iJZA80199305-199308

TOYODA GOUSEI

sub04437-24011

main04437-24011iJZA80199308-199404

TOYODA GOUSEI

sub04437-24030

main04437-24030iJZA80..RZ,RZS,SZR199404-199909

sub04437-24031

main04437-24031iJZA80..RZ,RZS,SZR199909

sub04439-22020

main04437-24050iJZA80199305-199404

main04437-30050iJZA80..SZ199709

sub04439-30030

42330SHAFT ASSY, REAR DRIVE, RH

main42330-22030iJZA80..SZ199605-199709

main42330-24010iJZA80..SZ199305-199605

sub42330-24020

sub42451-50010

main42330-24020iJZA80..SZ199305-199605

main42330-24020iJZA80..SZR199408

main42330-24030iJZA80..6F..(RZ,RZS);JZA80..LB..4FC..(GZ,RZS)199305-199504

main42330-30110iJZA80..SZ199709

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-14140iJZA80..6F..(RZ,RZS)199305-199605

main42340-22110iJZA80..SZ199605-199709

main42340-24040iJZA80..SZ199305-199605

sub42340-24050

sub42451-50010

main42340-24050iJZA80..SZ199305-199605

main42340-24050iJZA80..SZR199408

main42340-24060iJZA80..LB..4FC..(GZ,RZS)199305-199605

main42340-30110iJZA80..SZ199709

42341ARING, SNAP (FOR REAR DRIVE SHAFT)

main90520-26028iJZA80..6F..RZ;JZA80..RZS,SZ,SZR;JZA80..LB..4FC..GZ199305-199504

42344COVER, REAR AXLE INBOARD JOINT END

main42344-22030iJZA80..SZ199605-199709

main42344-30030iJZA80..SZ199709

main42344-50011iJZA80..6F..RZ;JZA80..RZS,SZ,SZR;JZA80..LB..4FC..GZ199305-199605

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-16030iJZA80..SZ199605-199709

main42345-30080iJZA80..SZ199709-200208

main90949-01837iJZA80..RZ,RZS,SZR199305-200208

42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-16070iJZA80..SZ199605-199709

main42345-30070iJZA80..SZ199709-200208

main90949-01838iJZA80..6F..RZ;JZA80..RZS,SZ,SZR;JZA80..LB..4FC..GZ199305-200208

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-16030iJZA80..SZ199605-199709

main42345-30080iJZA80..SZ199709-200208

main90949-01837iJZA80..6F..RZ;JZA80..RZS,SZ,SZR;JZA80..LB..4FC..GZ199305-200208

42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-16100iJZA80..SZ199605-199709

main42345-30070iJZA80..SZ199709-200208

main90949-01838iJZA80199305-200208

42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

main42370-29096iJZA80..TWC199305-199308

sub42370-29097

main42370-29097iJZA80..TWC199308-199404

main42370-29098iJZA80..SZ199404-199605

sub42370-29108

main42370-29106iJZA80..TWC199305-199308

sub42370-29107

main42370-29107iJZA80..TWC199308-199404

main42370-29108iJZA80..SZR199408

sub42370-29725

main42370-29108iJZA80..SZ199404-199605

sub42370-29725

main42370-29116iJZA80..TWT199305-199308

sub42370-29117

main42370-29117iJZA80..TWT199308-199404

main42370-29118iJZA80..TWT199404-199504

sub42370-29119

main42370-29155iJZA80..SZ199605-199709

sub42370-29156

main42370-39125iJZA80..SZ199709

42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH

main42380-19025iJZA80..6F199305-199308

sub42380-19026

main42380-19026iJZA80..6F199308-199404

sub42380-19027

main42380-19027iJZA80..6F..(RZ,RZS)199404-199605

main42380-29016iJZA80..TWC199305-199308

sub42380-29017

main42380-29017iJZA80..TWC199308-199404

main42380-29018iJZA80..SZ199404-199605

sub42380-29028

main42380-29026iJZA80..TWC199305-199308

sub42380-29027

main42380-29027iJZA80..TWC199308-199404

main42380-29028iJZA80..SZR199408

sub42380-29245

main42380-29028iJZA80..SZ199404-199605

sub42380-29245

main42380-29036iJZA80..4FC..TWT199305-199308

sub42380-29037

main42380-29037iJZA80..4FC..TWT199308-199404

main42380-29038iJZA80..4FC..TWT199404-199605

sub42380-29039

main42380-29055iJZA80..SZ199605-199709

sub42380-29056

main42380-39045iJZA80..SZ199709

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42452-22030iJZA80..SZ199305-199605

main42453-50010iJZA80..SZ199305

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42452-22030iJZA80..SZ199305-199605

main42453-50010iJZA80..SZ199305

43409ABOLT (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)

main90110-10015iJZA80..SZ199605-199709

main90110-10016iJZA80..SZ199709

main90110-12003iJZA80199305-199605

43409DJOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE

main43409-22020iJZA80..SZ199605-199709

sub43409-28010

main43409-24010iJZA80199305-199605

main43409-30030iJZA80..SZ199709

43446COVER, REAR AXLE INBOARD JOINT

main43446-22010iJZA80..SZ199605-199709

main43446-24020iJZA80199305-199605

main43446-30010iJZA80..SZ199709

43459GASKET, REAR AXLE INBOARD JOINT END COVER

main43459-50011iJZA80..6F..RZ;JZA80..RZS,SZ,SZR;JZA80..LB..4FC..GZ199305-199605

43489WASHER, REAR DRIVE SHAFT CROSS GROOVE JOINT

main43489-17010iJZA80..SZ199605-199709

main43489-30020iJZA80..SZ199709

main43489-50010iJZA80199305-199605

19 parts on this diagram · 3 diagrams in section
