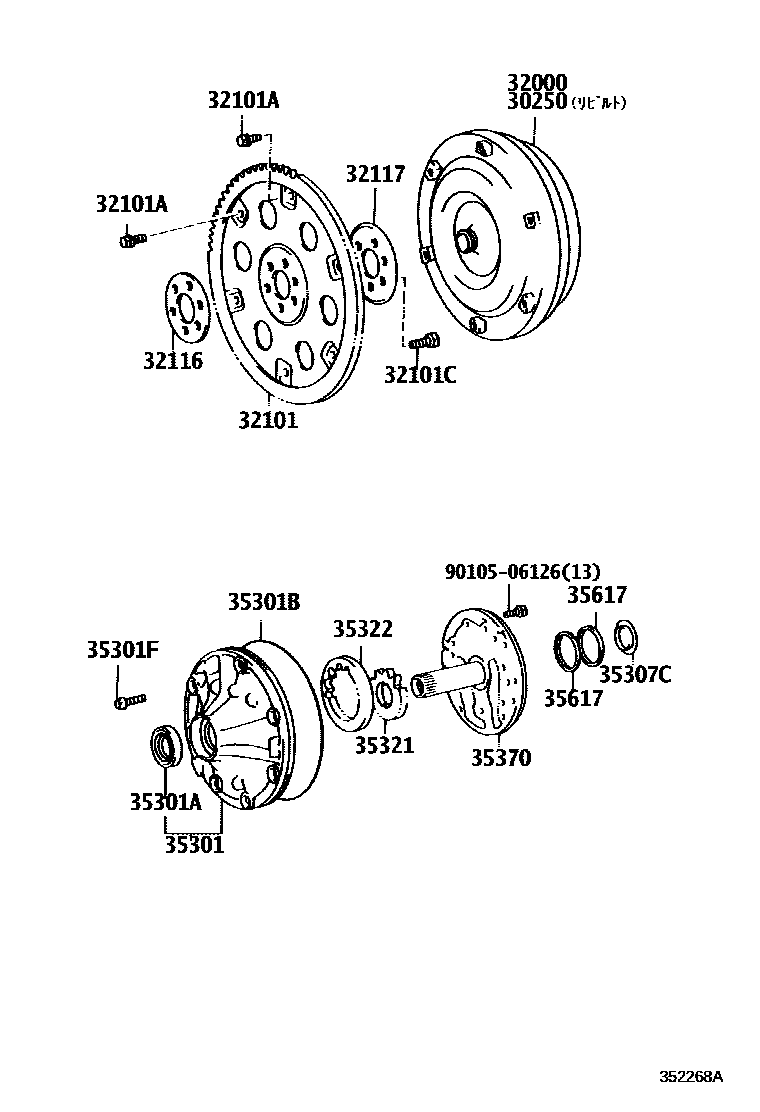

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-30251iJZA80..4FC..TWT199705-199709

main30250-30270iJZA80..4FC..TWC199305

main30250-30360iJZA80..4FC..TWT199709

32000CONVERTER ASSY, TORQUE

main32000-30250iJZA80..4FC..TWT199305-199705

main32000-30251iJZA80..4FC..TWT199705-199709

main32000-30270iJZA80..4FC..TWC199305

main32000-30360iJZA80..4FC..TWT199709

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-22050iJZA80..4FC..TWC199305-199908

main32101-30090iJZA80..4FC..TWT199305

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10340×5iJZA80..4FC..TWT199305

main90105-10341iJZA80..4FC..TWT199305

sub90105-10547

main90119-09009×5iJZA80..4FC..TWC199305-199707

main90119-09010iJZA80..4FC..TWC199305-199707

main90119-09026iJZA80..4FC..TWC199707-199908

main90119-09027×5iJZA80..4FC..TWC199707-199908

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10294×8iJZA80..4FC199908

32116SPACER, DRIVE PLATE, FRONT

main32116-22020iJZA80..4FC199305-199908

32117SPACER, DRIVE PLATE, REAR

main32117-22020iJZA80..4FC199305-199908

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-30040iJZA80..4FC..TWC199305-200208

main35301-35010iJZA80..4FC..TWT199305-200208

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38029iJZA80..4FC199305-200208

sub90311-38020

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99033iJZA80..4FC199305-200208

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091×7iJZA80..4FC199305-200208

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-30020iJZA80..4FC199305-199906

main35789-30340iJZA80..4FC199906-200208

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12020iJZA80..4FC..TWT199605-200208

main35321-12030iJZA80..4FC..TWT199511-200208

main35321-12040iJZA80..4FC..TWT199511-200208

main35321-12050iJZA80..4FC..TWT199511-200208

main35321-12060iJZA80..4FC..TWT199511-200208

main35321-12070iJZA80..4FC..TWC199307-200208

main35321-12080iJZA80..4FC..TWC199307-200208

main35321-12090iJZA80..4FC..TWC199305-200208

main35321-12100iJZA80..4FC..TWC199307-200208

main35321-12110iJZA80..4FC..TWC199307-200208

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12010iJZA80..4FC..TWT199305-199511

main35322-12020iJZA80..4FC..TWT199511-200208

main35322-12030iJZA80..4FC..TWT199511-200208

main35322-12040iJZA80..4FC..TWT199511-200208

main35322-12050iJZA80..4FC..TWT199511-200208

main35322-12060iJZA80..4FC..TWC199307-200208

main35322-12070iJZA80..4FC..TWC199307-200208

main35322-12080iJZA80..4FC..TWC199305-200208

main35322-12090iJZA80..4FC..TWC199307-200208

main35322-12100iJZA80..4FC..TWC199307-200208

35370SHAFT ASSY, STATOR

main35370-30031iJZA80..4FC..TWC199305-200208

main35370-50010iJZA80..4FC..TWT199305-200208

35617RING, CLUTCH DRUM OIL SEAL

main35617-30020×2iJZA80..4FC199305-200208

9010506126

main90105-06126

17 parts on this diagram · 1 diagram in section
