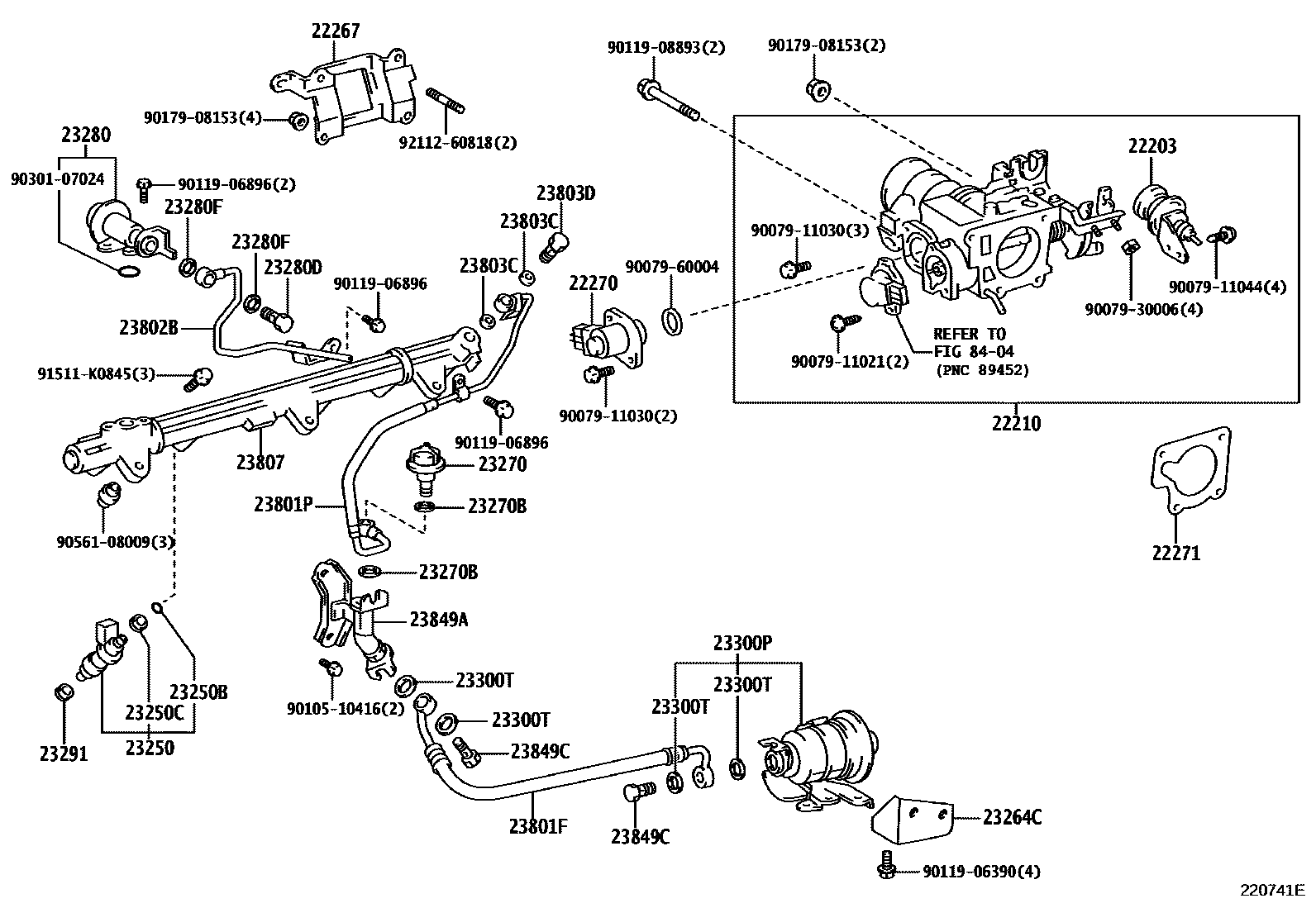

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

22203DASH POT SUB-ASSY(FOR THROTTLE BODY)

main22202-46040i2JZGTE..JZA80199305-199306

main22202-46050i2JZGTE..JZA80199306-199709

main22202-46060i2JZGE..JZA80199305

22210BODY ASSY, THROTTLE

main22030-46050i2JZGTE..JZA80199305-199709

main22030-46160i2JZGTE..JZA80199709

main22210-46080i2JZGE..JZA80..5F199305-199507

main22210-46081i2JZGE..JZA80..MTM199507

main22210-46091i2JZGE..JZA80..4FC199305

22267BRACKET, THROTTLE BODY

main22267-46020i2JZGE..JZA80199305

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-46050i2JZGE..JZA80199305

main22270-46060i2JZGTE..JZA80199305-199709

22271GASKET, THROTTLE BODY

main22271-46020i2JZGE..JZA80199305

main22271-46030i2JZGTE..JZA80199305-199709

main22271-46080i2JZGTE..JZA80199709

23250INJECTOR ASSY, FUEL

main23209-46030×6i2JZGE..JZA80199305-199511

main23209-46031×6i2JZGE..JZA80199511

main23209-46100×6i2JZGTE..JZA80199709

main23209-49025×6i2JZGTE..JZA80199305-199709

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001×6i2JZGE..JZA80199305-199812

main90301-07024×6i2JZGE..JZA80199812

main90301-14006×6i2JZGTE..JZA80199305

main90301-17007×6i2JZGTE..JZA80199305

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005×6i2JZGE..JZA80199305

23264CBRACKET, FUEL FILTER

main23264-46020i2JZ#..JZA80199305

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-46021i2JZ#..JZA80199305

23270BGASKET(FOR PULSATION DAMPER HOSE)

main90430-12026i2JZ#..JZA80199305

DERIVERY PIPE SIDE

main90430-14008i2JZ#..JZA80199305

DAMPER SIDE

23280REGULATOR ASSY, FUEL PRESSURE

main23280-46010i2JZGE..JZA80199305

main23280-46030i2JZGTE..JZA80199305

23280DBOLT, UNION(FOR FUEL PIPE OR HOSE SET)

main90401-10038i2JZ#..JZA80199305

23280FGASKET(FOR FUEL PRESSURE REGULATOR)

main90430-10012×2i2JZ#..JZA80199305

23291INSULATOR, INJECTOR VIBRATION

main23291-41010×6i2JZGE..JZA80199305-199309

main23291-46010×6i2JZGE..JZA80199309

main23291-75010×12i2JZGTE..JZA80199305

INJECTOR SIDE

main23291-76010×6i2JZGTE..JZA80199305

DELIVERY PIPE SIDE

23300PFILTER, FUEL(FOR EFI)

main23300-49185i2JZ#..JZA80199305-199403

MARK 23300-46060

main23300-49195i2JZ#..JZA80199403

MARK 23300-46080

23300TGASKET(FOR FUEL FILTER)

main90430-12026×4i2JZ#..JZA80199305

23801FHOSE, FUEL, NO.1

main90923-01403i2JZ#..JZA80199305

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-46020i2JZGE..JZA80199305-199308

main23801-46021i2JZGE..JZA80199308

main23801-46040i2JZGTE..JZA80199305

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-46030i2JZGE..JZA80199305-199311

main23802-46050i2JZGTE..JZA80199305

main23802-46060i2JZGE..JZA80199311

23803CGASKET(NOZZLE LEKAGE PIPE NO.3)

main90430-12026×2i2JZ#..JZA80199305

23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

main90401-12023i2JZ#..JZA80199305

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-46011i2JZGE..JZA80199305-199709

main23807-46021i2JZGE..JZA80199709

main23814-46030i2JZGTE..JZA80199305-199704

main23814-46031i2JZGTE..JZA80199704-200005

sub23814-46033

main23814-46032i2JZGTE..JZA80200005

sub23814-46033

23849ASUPPORT, FUEL PIPE

main23849-46010i2JZ#..JZA80199305

23849CBOLT, UNION(FOR FUEL PIPE SUPPORT)

main90401-12097×2i2JZ#..JZA80199305

8404

9007911021

main90079-11021

9007911030

main90079-11030

9007911044

main90079-11044

9007930006

main90079-30006

9007960004

main90079-60004

9010510416

main90105-10416

9011906390

main90119-06390

9011906896

main90119-06896

9011908893

main90119-08893

9017908153

main90179-08153

9030107024

main90301-07024

9056108009

main90561-08009

91511K0845

main91511-K0845

9211260818

main92112-60818

40 parts on this diagram · 4 diagrams in section
