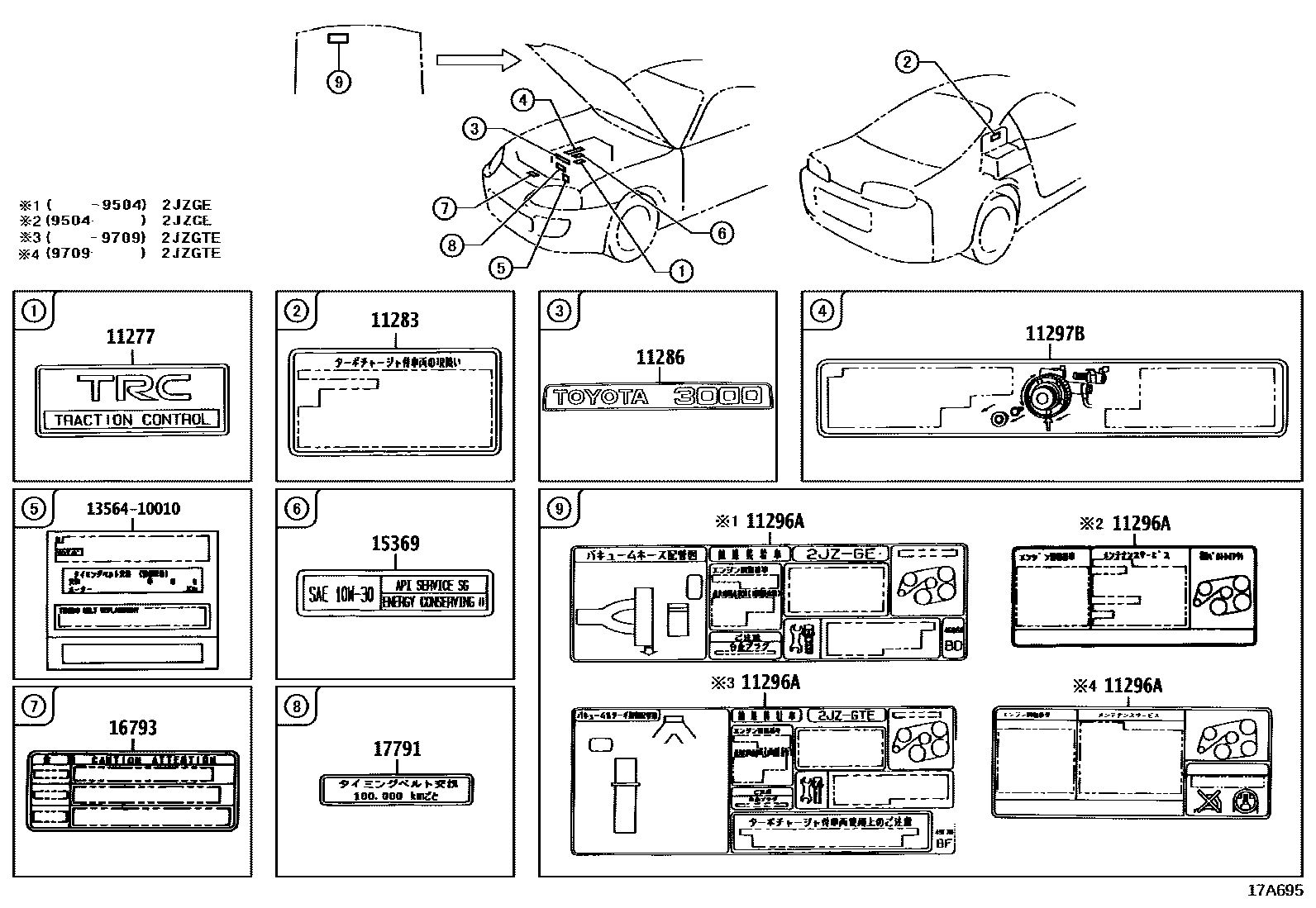

CAUTION PLATE & NAME PLATE (ENGINE)

11277PLATE, ENGINE SPECIFICATION, NO.2

main11277-46080i2JZGTE..JZA80199305-199709

main11277-46120i2JZGTE..JZA80199709

11283PLATE, TURBOCHARGER CAUTION

main11294-46010i2JZGTE..JZA80199305-199308

sub11294-55010

main11294-55010i2JZGTE..JZA80199308-199710

main11294-55020i2JZGTE..JZA80199710

11286PLATE, ENGINE SPECIFICATION

main11286-46060i2JZGE..JZA80199305-199308

sub11286-46061

main11286-46061i2JZGE..JZA80199308

11296ALABEL, ENGINE SERVICE INFORMATION

main11296-46080i2JZGE..JZA80199504-200011

sub11296-46360

main11296-46140i2JZGE..JZA80199305-199504

sub11296-46080

main11296-46170i2JZGTE..JZA80199305-199504

sub11296-46220

main11296-46220i2JZGTE..JZA80199504-199709

main11296-46310i2JZGTE..JZA80199709-200205

main11296-46311i2JZGTE..JZA80200205

main11296-46360i2JZGE..JZA80200011-200205

main11296-46361i2JZGE..JZA80200205

11297BLABEL, ENGINE SERVICE INFORMATION, NO.2

main11297-46020i2JZGTE..JZA80199709

15369PLATE, ENGINE OIL CAUTION

main15369-46010i2JZGTE..JZA80199305-199403

sub15369-46020

main15369-46020i2JZGTE..JZA80199403-199709

16793PLATE, FAN CAUTION

main16793-46010i2JZGTE..JZA80199605

17791LABEL, MAINTENANCE INFORMATION

main17791-74040i2JZ#..JZA80199305

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

9 parts on this diagram · 1 diagram in section
