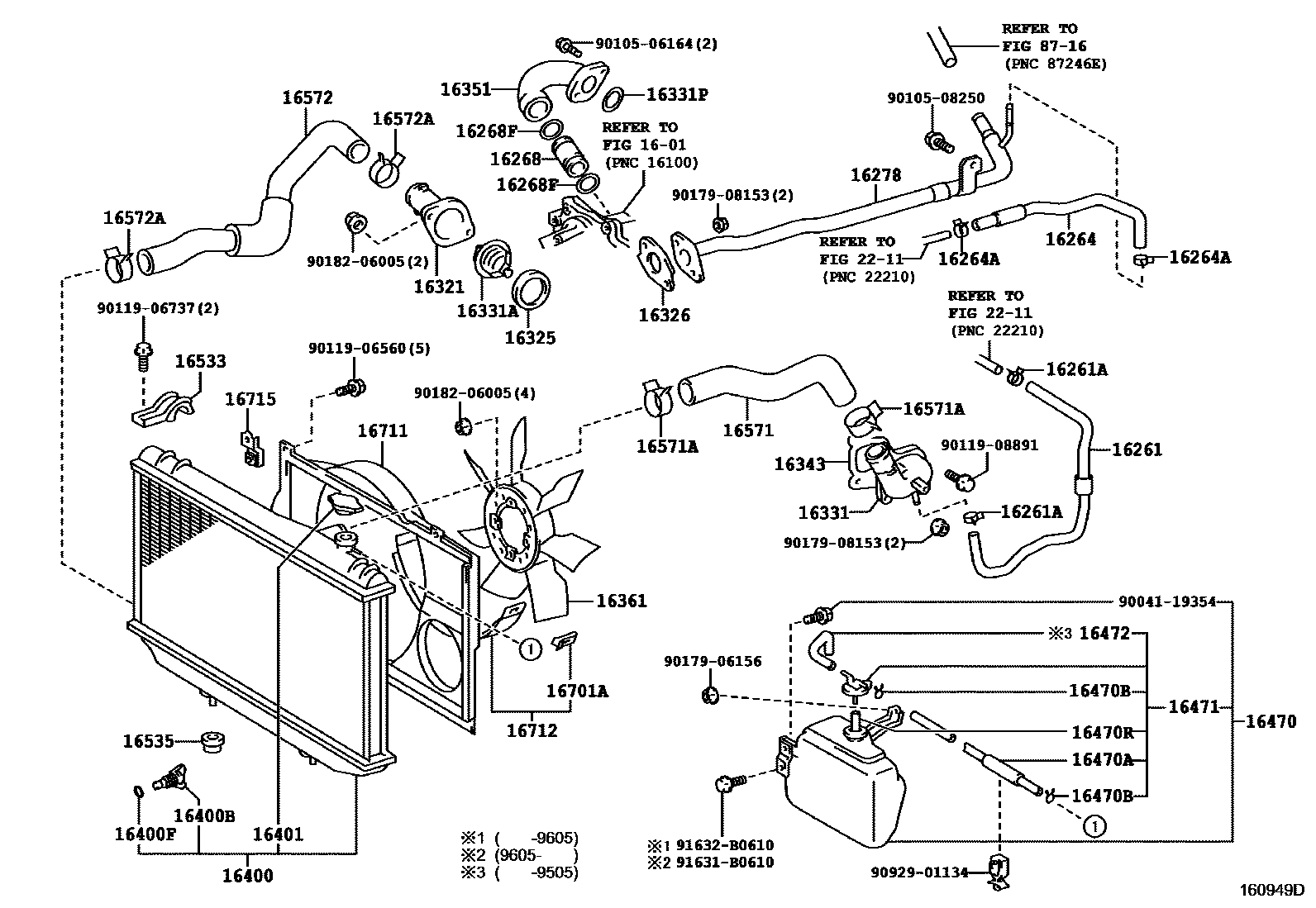

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

1601

16261HOSE, WATER BY-PASS

main16261-46020i2JZGE..JZA80199305

main16261-46040i2JZGTE..JZA80199305-199708

main16261-46050i2JZGTE..JZA80199708

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13050×2i2JZ#..JZA80199305-199709

sub96135-51300

16264HOSE, WATER BY-PASS, NO.2

main16264-46010i2JZGE..JZA80199305-199508

main16264-46030i2JZGTE..JZA80199305-199709

main16264-46040i2JZGE..JZA80199508-199707

main16264-46041i2JZGE..JZA80199707

main16264-46060i2JZGTE..JZA80199709

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-13050×2i2JZ#..JZA80199305-199709

sub96135-51300

16268PIPE, WATER BY-PASS, NO.1

main16268-46011i2JZGE..JZA80199305

main16268-46020i2JZGTE..JZA80199305

16268FRING, O(FOR WATER BY-PASS PIPE)

main96761-24022×2i2JZGE..JZA80199305

main96761-24023×2i2JZGTE..JZA80199305

16278PIPE, WATER BY-PASS, NO.2

main16278-46010i2JZGE..JZA80199305-199705

main16278-46030i2JZGTE..JZA80199305-199708

main16278-46040i2JZGE..JZA80199705

main16278-46090i2JZGTE..JZA80199708

16321INLET, WATER

main16321-46040i2JZGE..JZA80199305

main16321-46050i2JZGTE..JZA80199305

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i2JZ#..JZA80199305

16326GASKET, WATER INLET HOUSING, NO.2

main16325-46010i2JZ#..JZA80199305

16331OUTLET, WATER

main16331-46040i2JZGE..JZA80199305-199509

main16331-46041i2JZGE..JZA80199509

main16331-46050i2JZGTE..JZA80199305-199709

main16331-46080i2JZGTE..JZA80199709

16331ATHERMOSTAT

main90916-03093i2JZ#..JZA80199305

16331PRING,O(FOR WATER OUTLET)

main96761-24028i2JZGE..JZA80199305

16343GASKET, WATER OUTLET HOUSING

main16343-46020i2JZGE..JZA80199305

main16343-46030i2JZGTE..JZA80199305

16351OUTLET, WATER BY-PASS

main16351-46020i2JZGE..JZA80199305-199508

main16351-46021i2JZGE..JZA80199508-199707

main16351-46022i2JZGE..JZA80199707

16361FAN

main16361-46040i2JZGE..JZA80..4FC,5F199305-200003

main16361-46060i2JZGTE..JZA80;2JZGE..JZA80..MTM200003

16400RADIATOR ASSY

main16400-46290i2JZGE..JZA80..MTM199305

main16400-46300i2JZGE..JZA80..4FC199305

main16400-46310i2JZGTE..JZA80..6F199305-199605

main16400-46320i2JZGTE..JZA80..4FC199305-199605

main16400-46420i2JZGTE..JZA80..6F199605

main16400-46430i2JZGTE..JZA80..4FC199605

16400BPLUG, RADIATOR DRAIN COCK

main23322-54010i2JZ#..JZA80199305

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2JZ#..JZA80199902

main96711-19007i2JZ#..JZA80199305-199901

16401CAP SUB-ASSY, RADIATOR

main16401-62100i2JZ#..JZA80199305

sub16401-31520

16470TANK ASSY, RADIATOR RESERVE

main16470-46100i2JZGE..JZA80199305-199505

main16470-46110i2JZGTE..JZA80199305-199505

main16470-46120i2JZGE..JZA80199505

main16470-46130i2JZGTE..JZA80199505

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90099-33534i2JZ#..JZA80199305

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i2JZ#..JZA80199305

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i2JZ#..JZA80199305-199505

16471CAP SUB-ASSY, RESERVE TANK

main16405-46100i2JZ#..JZA80199305-199505

main16405-46120i2JZ#..JZA80199505

16472HOSE, BREATHER

main85338-73012i2JZ#..JZA80199305-199505

16533SUPPORT, RADIATOR, UPPER

main16505-46040×2i2JZ#..JZA80199305

16535SUPPORT, RADIATOR, LOWER

main90480-40012×2i2JZ#..JZA80199305

16571HOSE, RADIATOR, INLET

main16571-46140i2JZGE..JZA80199305

main16571-46150i2JZGTE..JZA80199305-199709

main16571-46220i2JZGTE..JZA80199709

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37005×2i2JZ#..JZA80200204

main90467-37006×2i2JZ#..JZA80199305-200204

16572HOSE, RADIATOR, OUTLET

main16572-46160i2JZ#..JZA80199305

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37005i2JZ#..JZA80200204

main90467-37006i2JZ#..JZA80199305-200204

main90467-41002i2JZ#..JZA80200204

INLET SIDE

sub90466-41008

main90467-41007i2JZGE..JZA80199305-199605

INLET SIDE

16701ACLIP(FOR FAN SHROUD)

main90468-05109×2i2JZ#..JZA80199305

16711SHROUD, FAN

main16711-46150i2JZGE..JZA80..4FC,5F199305-200003

main16711-46160i2JZGTE..JZA80199305-199605

main16711-46161i2JZGE..JZA80..MTM200003

main16711-46170i2JZGTE..JZA80199305-199605

main16711-46200i2JZGTE..JZA80199605

16712SHROUD, FAN, NO.2

main16702-46010i2JZ#..JZA80199305

16715BRACKET, FAN SHROUD

main16715-46010i2JZ#..JZA80199305

2211

8716

9004119354

main90041-19354

9010506164

main90105-06164

9010508250

main90105-08250

9011906560

main90119-06560

9011906737

main90119-06737

9011908891

main90119-08891

9017906156

main90179-06156

9017908153

main90179-08153

9018206005

main90182-06005

9092901134

main90929-01134

91631B0610

main91631-B0610

91632B0610

main91632-B0610

51 parts on this diagram · 4 diagrams in section
