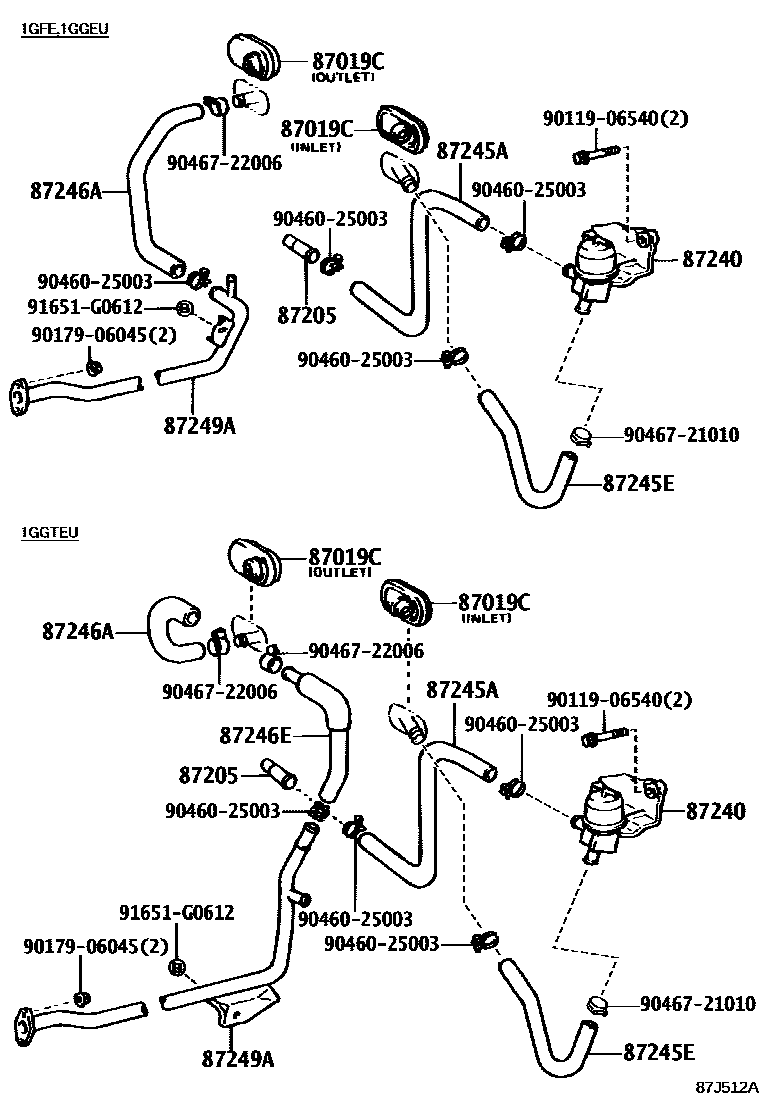

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87019CGROMMET, HEATER HOSE

main90480-01272iGA70,JZA70,MA70198808-199305

INLET

main90480-01337iGA70,JZA70,MA70198808-199305

OUTLET

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main90406-17001iGA70..GT,GTT198808-199008

sub90406-17012

main90406-17012iGA70..GT199008-199305

87240VALVE ASSY, HEATER WATER

main87240-24020iGA70,JZA70,MA70198808-199305

87245AHOSE, HEATER WATER, INLET A

main87245-1B270iGA70198808-199305

main87245-1B280iJZA70199008-199305

main87245-24180iMA70198808-199008

87245EHOSE, HEATER WATER, INLET E

main87245-24130iGA70,JZA70,MA70198808-199305

87246AHOSE, HEATER WATER, OUTLET A

main87245-1B290iJZA70199008-199305

main87245-24160iGA70..G,GT198808-199305

main87245-24170iGA70..GTT198808-199305

main87245-24190iMA70198808-199008

87246EHOSE, HEATER WATER, OUTLET E

main87209-24050iGA70..GTT198808-199305

87249APIPE, HEATER WATER OUTLET, A

main87208-22012iGA70..GT198808-199007

sub87208-22270

main87208-22181iGA70..G198808-198809

sub87208-22182

main87208-22182iGA70..G198809-199007

sub87208-22260

main87208-22260iGA70..G199007-199008

sub87208-22261

main87208-22270iGA70..GT199007-199111

sub87208-22271

main87208-22271iGA70..GT199111-199205

main87208-22272iGA70..GT199205-199305

main87208-24010iGA70..GTT198808-199006

sub87208-24020

main87208-24020iGA70..GTT199006-199203

sub87208-24021

main87208-24021iGA70..GTT199203-199305

9011906540

main90119-06540

9017906045

main90179-06045

9046025003

main90460-25003

9046721010

main90467-21010

9046722006

main90467-22006

91651G0612

main91651-G0612

14 parts on this diagram · 2 diagrams in section
