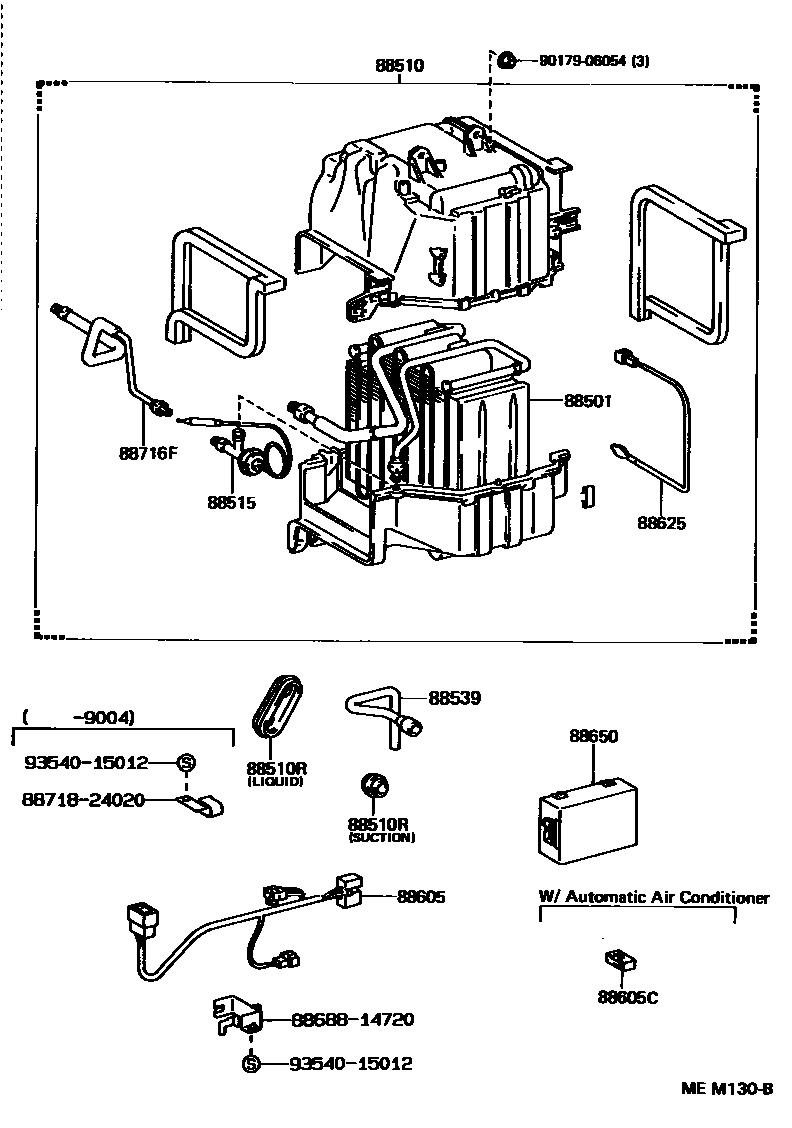

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0003 1

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-24031iGA70..NOB198808-199108

main88501-24040iGA70,JZA70198908-199305

88510UNIT ASSY, COOLER

main88510-14420iGA70198908-199305

main88510-14440iGA70..NOB199004-199108

main88510-14450iJZA70199008-199305

main88510-24090iGA70..NOB198808-199004

88510RGROMMET (FOR COOLER UNIT)

main90480-24008iGA70,JZA70,MA70198808-199305

LIQUID PIPE

sub90099-32137

main90480-26004iGA70,JZA70,MA70¥0198808-199305

SUCTION PIPE

88515VALVE, COOLER EXPANSION

main88515-16040iGA70,JZA70¥7,100198908-199305

main88515-20050iGA70..NOB¥9,900198808-199108

sub88515-20051¥9,500

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-24031iGA70,JZA70,MA70..WIB¥470198908-199305

main88539-24050iGA70..NOB198808-199108

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-14780iGA70..NOB198808-199108

main88605-14870iGA70198908-199305

main88605-14880iJZA70199008-199305

88605CHARNESS SUB-ASSY, COOLER WIRING, NO.2

main88605-14850iGA70,MA70198808-199108

88625THERMISTOR, COOLER, NO.1

main88625-24050iGA70,JZA70,MA70198808-199305

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-14250iGA70,MA70198808-199305

main88650-14260iJZA70199008-199305

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-1B050iGA70,JZA70,MA70..WIB¥3,340198908-199305

main88716-24070iGA70,MA70¥3,090198808-199108

8868814720BRACKET, COOLER DIAPHRAGM

main88688-14720

8871824020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-24020

9017906054

main90179-06054¥100

9354015012

main93540-15012¥70

14 parts on this diagram · 2 diagrams in section
