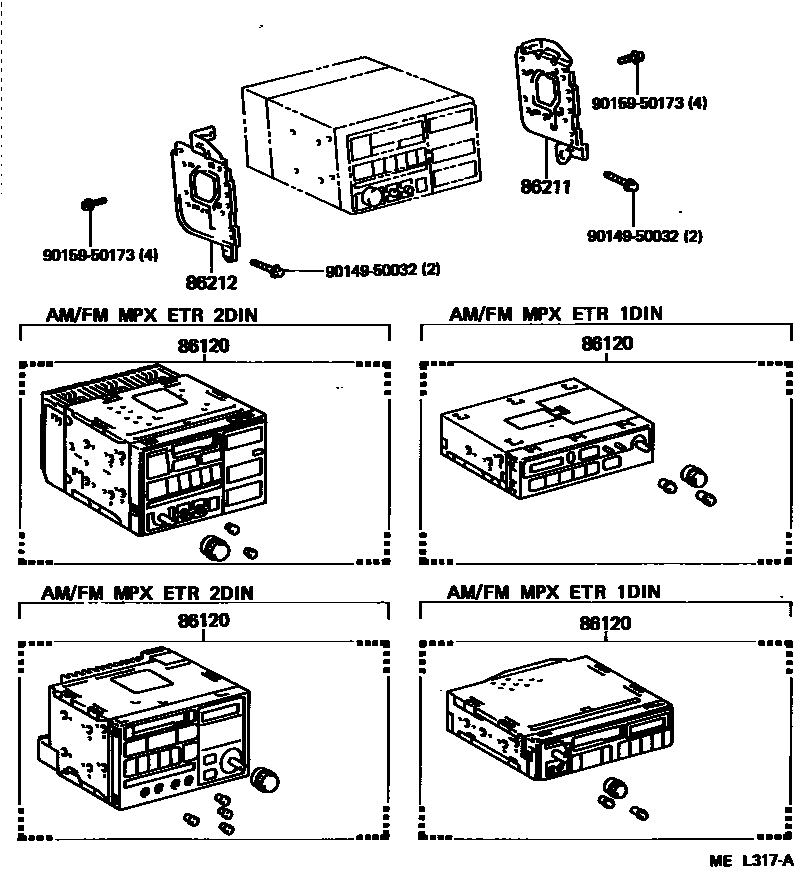

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86120RECEIVER ASSY, RADIO

main86120-14750iMA70¥305,000198808-198908

main86120-14790iGA70¥187,000198808-198908

main86120-14830iGA70..G,GT;GA70..AET..NOB..4FC..GTT¥300,000198908-199008

main86120-14831iGA70..NOB¥296,000199008-199305

main86120-14840iGA70..NOB¥195,000198908-199305

main86120-14850iGA70,MA70..WIB¥300,000198908-199008

main86120-14851iGA70,JZA70..WIB¥296,000199008-199305

main86120-20870iGA70,JZA70..WIB¥160,000198908-199203

sub86120-20871¥160,000

main86120-20871iGA70,JZA70..WIB¥160,000199203-199305

main86120-2B370iGA70..NOB¥323,000199108-199305

main86120-32300iMA70¥127,000198808-198908

main86120-32310iGA70..NOB¥79,200198808-199305

main86120-32320iGA70..G,GT;GA70..AET..4FC..GTT¥276,000198808-198908

main86120-32320iGA70..GTT¥276,000198902-198904

main86120-32460iGA70,JZA70..WIB¥342,000199108-199305

86211BRACKET, RADIO, NO.1

main86211-14220iGA70,JZA70,MA70¥750198808-199011

sub86211-14221¥740

main86211-14221iGA70,JZA70¥740199011-199305

86212BRACKET, RADIO, NO.2

main86212-14190iGA70,JZA70,MA70¥750198808-199011

sub86212-14191¥740

main86212-14191iGA70,JZA70¥740199011-199305

9014950032

main90149-50032¥80

9015950173

main90159-50173¥70

5 parts on this diagram · 2 diagrams in section
