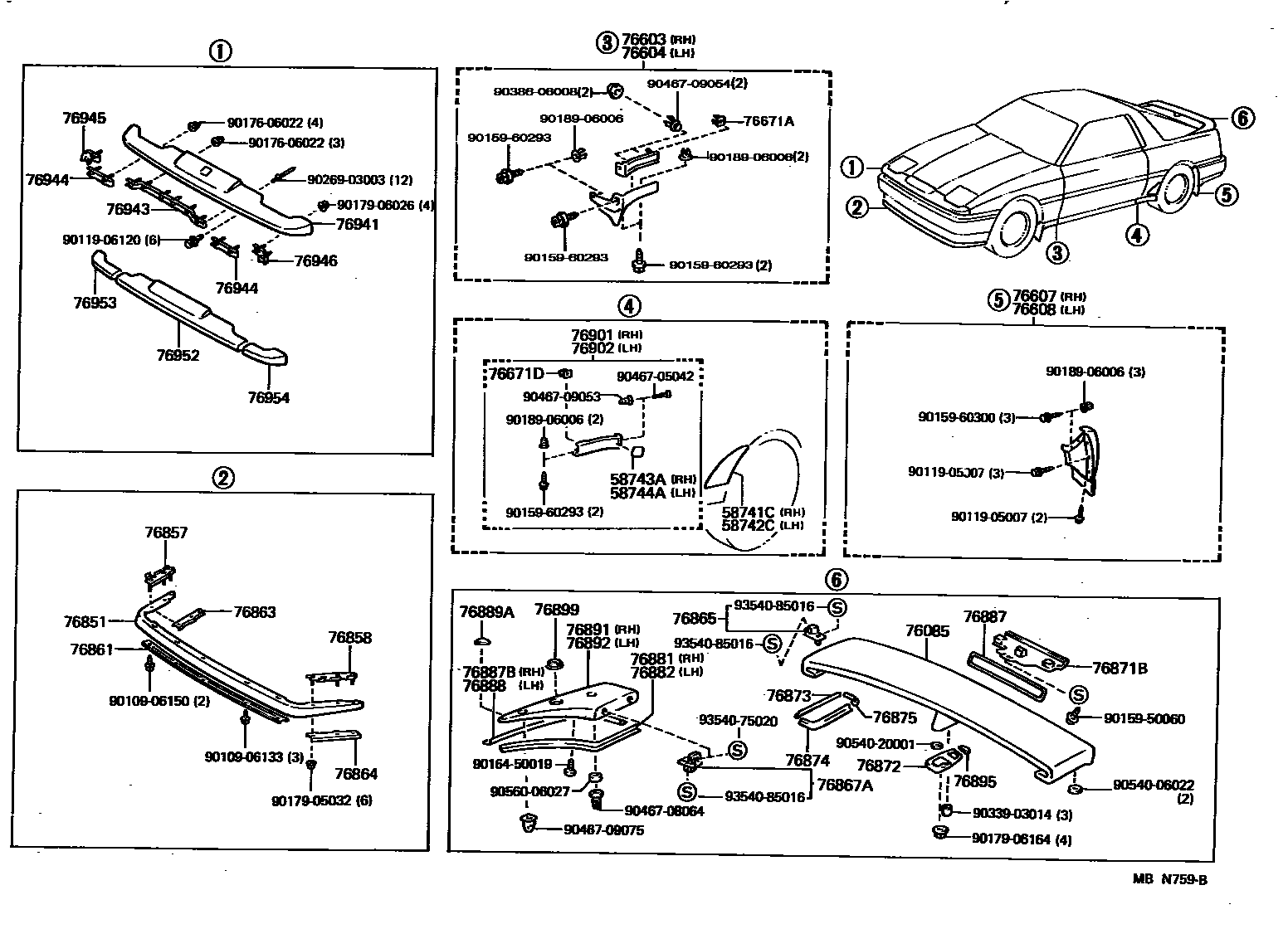

MUDGUARD & SPOILER
58741CPROTECTOR, QUARTER PANEL, RH
58742CPROTECTOR, QUARTER PANEL, LH
58743APROTECTOR, REAR WHEEL EXTENSION, NO.2 RH
58744APROTECTOR, REAR WHEEL EXTENSION, NO.2 LH
76085SPOILER SUB-ASSY, REAR
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76671ACLIP, FRONT FENDER MUDGUARD
76671DCLIP, SIDE MUDGUARD
76851COVER, FRONT SPOILER
76857RETAINER, FRONT SPOILER SIDE, RH
76858RETAINER, FRONT SPOILER SIDE, LH
76861RETAINER, FRONT SPOILER, LOWER NO.1
76863RETAINER, FRONT SPOILER, LOWER NO.2 RH
76864RETAINER, FRONT SPOILER, LOWER NO.2 LH
76865RETAINER, REAR SPOILER, NO.1
76867ARETAINER, REAR SPOILER, NO.3
76871BCOVER, REAR SPOILER
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76874PROTECTOR, REAR SPOILER, NO.3
76875PROTECTOR, REAR SPOILER, NO.4
76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH
76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH
76887SEAL, REAR SPOILER
76887BPROTECTOR, REAR SPOILER SIDE, NO.2
76888PROTECTOR, REAR SPOILER SIDE, NO.3
76889APROTECTOR, REAR SPOILER SIDE, NO.4
76891SPOILER, REAR NO.1
76892SPOILER, REAR NO.2
76895PROTECTOR, REAR SPOILER, NO.5
76899PROTECTOR, REAR SPOILER, SIDE NO.6
76901MUDGUARD SUB-ASSY, SIDE, RH
BLACK MICA,206
SUPER RED 2,3E5
GRAY M,167
BLUE MICA,8E3
DARK GREEN MICA,6L9
WHITE PEARL MICA,042
BLACK,202
RED MICA,3H4
SUPER WHITE 3,043
RED MICA,3H8
BLUEISH GRAY M,182
DARK BLUE M M,8G5
SUPER WHITE 4,050
BLUE M,8J3
S.WHITE PEARL MICA,051
MEDIUM TORQUOISE M.,749
BLUE MICA,8E3
BLACK MICA,206
RED MICA,3H4
GRAY M,167
DARK BLUE M M,8G5
BLACK,202
RED MICA,3H8
BLUEISH GRAY M,182
BLUE M.,8J3
SUPER WHITE 3,043
SUPER WHITE 4,050
SUPER RED 2,3E5
MEDIUM TORQUOISE M.,749
76902MUDGUARD SUB-ASSY, SIDE, LH
BLACK MICA,206
SUPER RED 2,3E5
GRAY M,167
BLUE MICA,8E3
DARK GREEN MICA,6L9
WHITE PEARL MICA,042
BRACK,202
RED MICA,3H4
SUPER WHITE 3,043
RED MICA,3H8
BLUEISH GRAY M,182
DARK BLUE M M,8G5
SUPER WHITE 4,050
BLUE M.,8J3
S.WHITE PEARL MICA,051
MEDIUM TORQUOISE M.,749
BLUE MICA,8E3
BLACK MICA,206
RED MICA,3H4
GRAY M,167
DARK BLUE M M,8G5
BLACK,202
RED MICA,3H8
BLUEISH GRAY M,182
BLUE M.,8J3
SUPER WHITE 3,043
SUPER WHITE 4,050
SUPER RED,3E5
MEDIUM TORQUOISE M.,749
76941COVER, FRONT FACIA
76943RETAINER, FRONT FACIA, NO.1
76944RETAINER, FRONT FACIA, NO.2
76945RETAINER, FRONT FACIA, NO.3 RH
76946RETAINER, FRONT FACIA, NO.3 LH
76952ABSORBER, FRONT FACIA, NO.1
76953ABSORBER, FRONT FACIA, NO.2 RH
76954ABSORBER, FRONT FACIA, NO.2 LH
9010906133
9010906150
9011905007
9011906120
9015950060
9015960293
9015960300
9016450019
9017606022
9017905032
9017906026
9017906164
9018906006
9026903003
9033903014
9038606008
9046705042
9046708064
9046709053
9046709054
9046709075
9054006022
9054020001
9056006027
9354075020
9354085016
70 parts on this diagram · 2 diagrams in section
