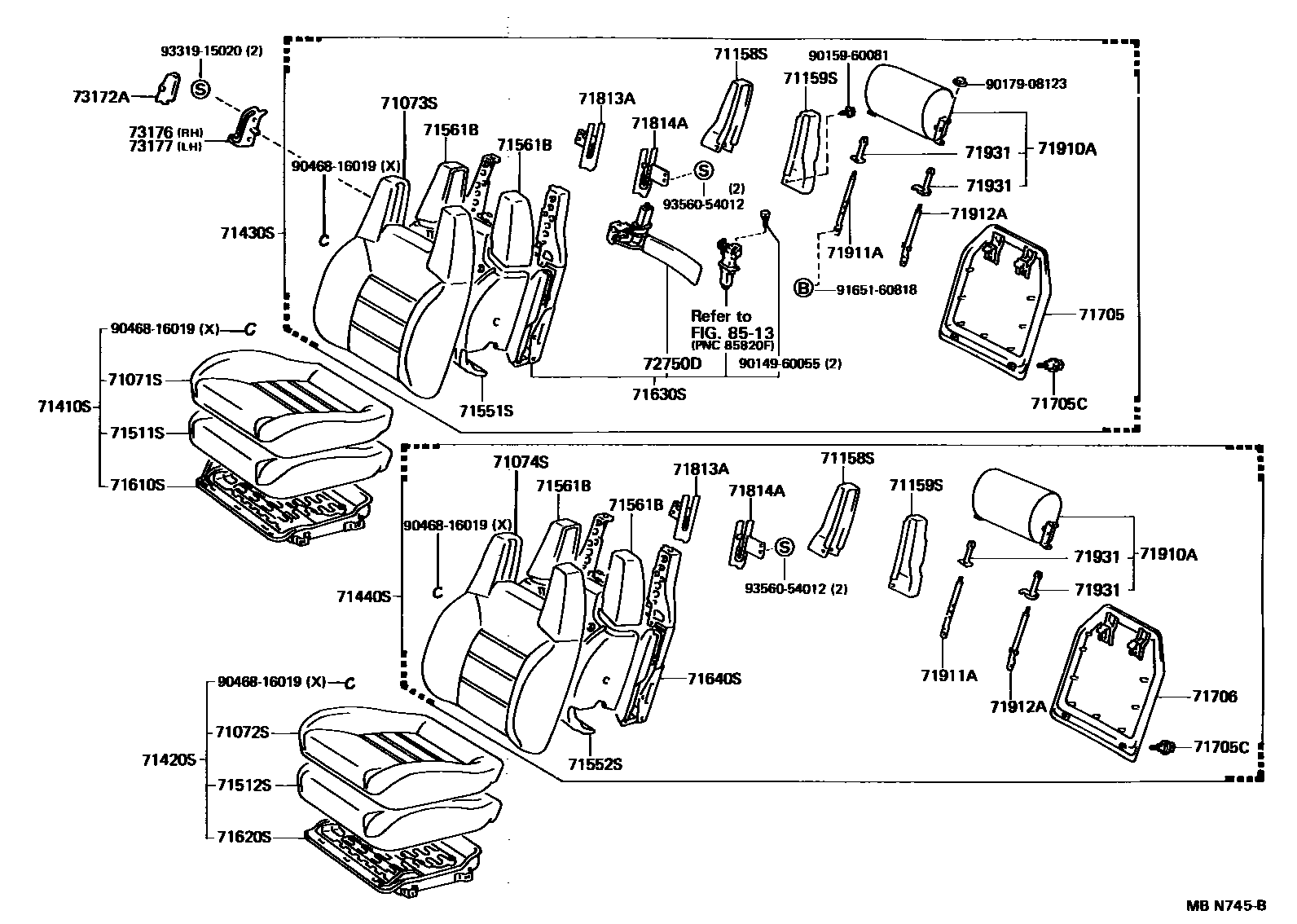

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-1D151-02iGA70198808-199008

MAROON,TRIM3#

main71071-1D151-03iGA70198808-199008

MEDIUM GRAY,TRIM1#

main71071-1D151-04iGA70198808-199008

DEEP BLUE,TRIM8#

main71071-1D163-02iMA70..GTT198908-199008

main71071-1D163-03iMA70..GTT198908-199008

main71071-1D163-04iMA70..GTT198908-199008

main71071-1D191-02iMA70..GTL,GTT198808-198908

MAROON,TRIM3#

main71071-1D191-03iMA70..GTL,GTT198808-198908

MEDIUM GRAY,TRIM1#

main71071-1D191-04iMA70..GTL,GTT198808-198908

DEEP BLUE,TRIM8#

main71071-1D192-02iMA70198908-199008

MAROON,TRIM3#

main71071-1D192-03iMA70198908-199008

MEDIUM GRAY,TRIM1#

main71071-1D192-04iMA70198908-199008

DEEP BLUE,TRIM8#

main71071-1D193-02iJZA70..GTT199008-199305

DEEP RED,TRIM3#

main71071-1D193-03iJZA70..GTT199008-199108

LIGHT GRAY,TRIM1#

main71071-1D193-B0iJZA70..GTT199108-199305

SHADOW GRAY,TRIM1#

main71071-1D221-03iMA70..GTL,GTT198808-199008

main71071-1D222-03iJZA70..GTL199008-199108

main71071-1D222-C0iJZA70..GTL199108-199305

main71071-1D322-02iGA70199008-199305

DEEP RED,TRIM3#

main71071-1D322-03iGA70199008-199108

LIGHT GRAY,TRIM1#

main71071-1D322-B0iGA70199108-199305

SHADOW GRAY,TRIM1#

main71071-1D330-03iMA70..GTTL198808-198809

MEDIUM GRAY,TRIM1#

main71071-1D390-02iJZA70..GTT199008-199305

DEEP RED,TRIM3#

main71071-1D390-02iJZA70..GTL199008-199305

main71071-1D390-03iJZA70..GTL199008-199108

LIGHT GRAY,TRIM1#

main71071-1D390-03iJZA70..GTT199008-199108

main71071-1D390-C0iJZA70..GTT199108-199305

main71071-1D390-C0iJZA70..GTL199108-199305

BLACK,TRIM1#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-1D181-02iMA70..GTL,GTT198808-198908

MAROON,TRIM3#

main71072-1D181-03iMA70..GTL,GTT198808-198908

MEDIUM GRAY,TRIM1#

main71072-1D181-04iMA70..GTL,GTT198808-198908

DEEP BLUE,TRIM8#

main71072-1D182-02iMA70198908-199008

MAROON,TRIM3#

main71072-1D182-03iMA70198908-199008

MEDIUM GRAY,TRIM1#

main71072-1D182-04iMA70198908-199008

DEEP BLUE,TRIM8#

main71072-1D221-03iMA70..GTL,GTT198808-199008

main71072-1D221-13iMA70..GTTL198808-198809

MEDIUM GRAY,TRIM1#

main71072-1D222-03iJZA70..GTL199008-199108

main71072-1D222-C0iJZA70..GTL199108-199305

main71072-1D261-02iGA70198808-199008

MAROON,TRIM3#

main71072-1D261-03iGA70198808-199008

MEDIUM GRAY,TRIM1#

main71072-1D261-04iGA70198808-199008

DEEP BLUE,TRIM8#

main71072-1D382-02iGA70,JZA70..GT,GTT199008-199305

DEEP RED,TRIM3#

main71072-1D382-03iGA70,JZA70..GT,GTT199008-199108

LIGHT GRAY,TRIM1#

main71072-1D382-B0iGA70,JZA70..GT,GTT199108-199305

SHADOW GRAY,TRIM1#

main71072-1D460-02iJZA70..GTL199008-199305

main71072-1D460-02iJZA70..GTL199008-199305

DEEP RED,TRIM3#

main71072-1D460-03iJZA70..GTT199008-199108

main71072-1D460-03iJZA70..GTT199008-199108

LIGHT GRAY,TRIM1#

main71072-1D460-C0iJZA70..GTT199108-199305

BLACK,TRIM1#

main71072-1D460-C0iJZA70..GTL199108-199305

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-1B604-02iGA70,JZA70..GT,GTT199008-199305

DEEP RED,TRIM3#

main71073-1B604-03iGA70,JZA70..GT,GTT199008-199108

LIGHT GRAY,TRIM1#

main71073-1B604-B0iGA70,JZA70..GT,GTT199108-199305

SHADOW GRAY,TRIM1#

main71073-1B631-03iJZA70..GTL;MA70..GTL,GTT198808-199108

main71073-1B631-13iMA70..GTTL198808-198809

MEDIUM GRAY,TRIM1#

main71073-1B631-C0iJZA70..GTL199108-199305

main71073-1B641-02iGA70198808-199008

MAROON,TRIM3#

main71073-1B641-03iGA70198808-199008

MEDIUM GRAY,TRIM1#

main71073-1B641-04iGA70198808-199008

DEEP BLUE,TRIM8#

main71073-1B651-02iMA70..GTL,GTT198808-198908

MAROON,TRIM3#

main71073-1B651-03iMA70..GTL,GTT198808-198908

MEDIUM GRAY,TRIM1#

main71073-1B651-04iMA70..GTL,GTT198808-198908

DEEP BLUE,TRIM8#

main71073-1B652-02iMA70198908-199008

MAROON,TRIM3#

main71073-1B652-03iMA70198908-199008

MEDIUM GRAY,TRIM1#

main71073-1B652-04iMA70198908-199008

DEEP BLUE,TRIM8#

main71073-1B820-02iJZA70..GTT199008-199305

DEEP RED,TRIM3#

main71073-1B820-02iJZA70..GTL199008-199305

main71073-1B820-03iJZA70..GTT199008-199108

LIGHT GRAY,TRIM1#

main71073-1B820-03iJZA70..GTT199008-199108

main71073-1B820-C0iJZA70..GTL199108-199305

main71073-1B820-C0iJZA70..GTT199108-199305

BLACK,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-14711-03iJZA70..GTL;MA70..GTL,GTT198808-199108

main71074-14711-13iMA70..GTTL198808-198809

MEDIUM GRAY,TRIM1#

main71074-14711-C0iJZA70..GTL199108-199305

main71074-14721-02iGA70198808-199008

MAROON,TRIM3#

main71074-14721-03iGA70198808-199008

MEDIUM GRAY,TRIM1#

main71074-14721-04iGA70198808-199008

DEEP BLUE,TRIM8#

main71074-14731-02iMA70..GTL,GTT198808-198908

MAROON,TRIM3#

main71074-14731-03iMA70..GTL,GTT198808-198908

MEDIUM GRAY,TRIM1#

main71074-14731-04iMA70..GTL,GTT198808-198908

DEEP BLUE,TRIM8#

main71074-14732-02iMA70198908-199008

MAROON,TRIM3#

main71074-14732-03iMA70198908-199008

MEDIUM GRAY,TRIM1#

main71074-14732-04iMA70198908-199008

DEEP BLUE,TRIM8#

main71074-14813-02iGA70,JZA70..GT,GTT199008-199305

DEEP RED,TRIM3#

main71074-14813-03iGA70,JZA70..GT,GTT199008-199108

LIGHT GRAY,TRIM1#

main71074-14813-B0iGA70,JZA70..GT,GTT199108-199305

SHADOW GRAY,TRIM1#

main71074-14890-02iJZA70..GTL199008-199305

DEEP RED,TRIM3#

main71074-14890-02iJZA70..GTL199008-199305

main71074-14890-03iJZA70..GTL199008-199108

LIGHT GRAY,TRIM1#

main71074-14890-03iJZA70..GTT199008-199108

main71074-14890-C0iJZA70..GTL199108-199305

BLACK,TRIM1#

main71074-14890-C0iJZA70..GTL199108-199305

71158SFRAME, FRONT SEATBACK, UPPER RH

main71158-14060iGA70,JZA70,MA70..G,GT,GTL,GTT,GTTL198808-199305

main71158-14070iGA70,JZA70,MA70..G,GT,GTL,GTT,GTTL198808-199305

71159SFRAME, FRONT SEATBACK, UPPER LH

main71159-14050iGA70,JZA70,MA70..G,GT,GTL,GTT,GTTL198808-199305

main71159-14060iGA70,JZA70,MA70..G,GT,GTL,GTT,GTTL198808-199305

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-1B793-02iMA70..GTT198908-198912

main71410-1B793-03iMA70..GTT198908-198912

main71410-1B793-04iMA70..GTT198908-198912

main71410-1D251-02iGA70198808-199008

***,MAROON,TRIM3#

main71410-1D251-03iGA70198808-199008

***,MEDIUM GRAY,TRIM1#

main71410-1D251-04iGA70198808-199008

***,DEEP BLUE,TRIM8#

main71410-1D281-02iMA70..GTL,GTT198808-198908

***,MAROON,TRIM3#

main71410-1D281-03iMA70..GTL,GTT198808-198908

***,MEDIUM GRAY,TRIM1#

main71410-1D281-04iMA70..GTL,GTT198808-198908

***,DEEP BLUE,TRIM8#

main71410-1D282-02iMA70198908-199008

***,MAROON,TRIM3#

main71410-1D282-03iMA70198908-199008

***,MEDIUM GRAY,TRIM1#

main71410-1D282-04iMA70198908-199008

***,DEEP BLUE,TRIM8#

main71410-1D283-02iJZA70..GTT199008-199305

***,DEEP RED,TRIM3#

main71410-1D283-03iJZA70..GTT199008-199108

***,LIGHT GRAY,TRIM1#

main71410-1D283-B0iJZA70..GTT199108-199305

***,SHADOW GRAY,TRIM1#

main71410-1D311-03iMA70..GTL,GTT198808-199008

main71410-1D312-03iJZA70..GTL199008-199108

main71410-1D312-C0iJZA70..GTL199108-199305

main71410-1D382-02iGA70199008-199305

***,DEEP RED,TRIM3#

main71410-1D382-03iGA70199008-199108

***,LIGHT GRAY,TRIM1#

main71410-1D382-B0iGA70199108-199305

***,SHADOW GRAY,TRIM1#

main71410-1D390-03iMA70..GTTL198808-198809

***,MEDIUM GRAY,TRIM1#

main71410-1D480-02iJZA70..GTT199008-199305

***,DEEP RED,TRIM3#

main71410-1D480-02iJZA70..GTL199008-199305

main71410-1D480-03iJZA70..GTL199008-199108

***,LIGHT GRAY,TRIM1#

main71410-1D480-03iJZA70..GTL199008-199108

main71410-1D480-C0iJZA70..GTT199108-199305

main71410-1D480-C0iJZA70..GTL199108-199305

***,BLACK,TRIM1#

main71410-1D520-01iJZA70..GTTR199008-199305

BLACK,TRIM1#

sub71410-17130

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-1D081-02iGA70198808-199008

***,MAROON,TRIM3#

main71420-1D081-03iGA70198808-199008

***,MEDIUM GRAY,TRIM1#

main71420-1D081-04iGA70198808-199008

***,DEEP BLUE,TRIM8#

main71420-1D271-02iMA70..GTL,GTT198808-198908

***,MAROON,TRIM3#

main71420-1D271-03iMA70..GTL,GTT198808-198908

***,MEDIUM GRAY,TRIM1#

main71420-1D271-04iMA70..GTL,GTT198808-198908

***,DEEP BLUE,TRIM8#

main71420-1D272-02iMA70198908-199008

***,MAROON,TRIM3#

main71420-1D272-03iMA70198908-199008

***,MEDIUM GRAY,TRIM1#

main71420-1D272-04iMA70198908-199008

***,DEEP BLUE,TRIM8#

main71420-1D341-03iMA70..GTL,GTT198808-199008

main71420-1D341-13iMA70..GTTL198808-198809

***,MEDIUM GRAY,TRIM1#

main71420-1D342-03iJZA70..GTL199008-199108

main71420-1D342-C0iJZA70..GTL199108-199305

main71420-1D413-02iGA70,JZA70..GT,GTT199008-199305

***,DEEP RED,TRIM3#

main71420-1D413-03iGA70,JZA70..GT,GTT199008-199108

***,LIGHT GRAY,TRIM1#

main71420-1D413-B0iGA70,JZA70..GT,GTT199108-199305

***,SHADOW GRAY,TRIM1#

main71420-1D530-02iJZA70..GTL199008-199305

***,DEEP RED,TRIM3#

main71420-1D530-02iJZA70..GTL199008-199305

main71420-1D530-03iJZA70..GTL199008-199108

***,LIGHT GRAY,TRIM1#

main71420-1D530-03iJZA70..GTT199008-199108

main71420-1D530-C0iJZA70..GTL199108-199305

***,BLACK,TRIM1#

main71420-1D530-C0iJZA70..GTT199108-199305

main71420-1D570-01iJZA70..GTTR199008-199305

BLACK,TRIM1#

sub71420-17130

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-1B881-02iGA70198808-199008

***,MAROON,TRIM3#

main71430-1B881-03iGA70198808-199008

***,MEDIUM GRAY,TRIM1#

main71430-1B881-04iGA70198808-199008

***,DEEP BLUE,TRIM8#

main71430-1B882-02iGA70199008-199305

***,DEEP RED,TRIM3#

main71430-1B882-03iGA70199008-199108

***,LIGHT GRAY,TRIM1#

main71430-1B882-B0iGA70199108-199305

***,SHADOW GRAY,TRIM1#

main71430-1D051-02iMA70..GTL,GTT198808-198908

***,MAROON,TRIM3#

main71430-1D051-03iMA70..GTL,GTT198808-198908

***,MEDIUM GRAY,TRIM1#

main71430-1D051-04iMA70..GTL,GTT198808-198908

***,DEEP BLUE,TRIM8#

main71430-1D052-02iMA70198908-199008

***,MAROON,TRIM3#

main71430-1D052-03iMA70198908-199008

***,MEDIUM GRAY,TRIM1#

main71430-1D052-04iMA70198908-199008

***,DEEP BLUE,TRIM8#

main71430-1D053-02iJZA70..GTT199008-199305

***,DEEP RED,TRIM3#

main71430-1D053-03iJZA70..GTT199008-199108

***,LIGHT GRAY,TRIM1#

main71430-1D053-B0iJZA70..GTT199108-199305

***,SHADOW GRAY,TRIM1#

main71430-1D061-03iJZA70..GTL;MA70..GTL,GTT198808-199108

main71430-1D061-13iMA70..GTTL198808-198809

***,MEDIUM GRAY,TRIM1#

main71430-1D061-C0iJZA70..GTL199108-199305

main71430-1D330-02iJZA70..GTT199008-199305

***,DEEP RED,TRIM3#

main71430-1D330-02iJZA70..GTL199008-199305

main71430-1D330-03iJZA70..GTL199008-199108

***,LIGHT GRAY,TRIM1#

main71430-1D330-03iJZA70..GTL199008-199108

main71430-1D330-C0iJZA70..GTT199108-199305

main71430-1D330-C0iJZA70..GTL199108-199305

***,BLACK,TRIM1#

main71430-1D370-01iJZA70..GTTR199008-199305

BLACK,TRIM1#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-1D011-02iGA70198808-199008

***,MAROON,TRIM3#

main71440-1D011-03iGA70198808-199008

***,MEDIUM GRAY,TRIM1#

main71440-1D011-04iGA70198808-199008

***,DEEP BLUE,TRIM8#

main71440-1D012-02iGA70199008-199305

***,DEEP RED,TRIM3#

main71440-1D012-03iGA70199008-199108

***,LIGHT GRAY,TRIM1#

main71440-1D012-B0iGA70199108-199305

***,SHADOW GRAY,TRIM1#

main71440-1D021-02iMA70..GTL,GTT198808-198908

***,MAROON,TRIM3#

main71440-1D021-03iMA70..GTL,GTT198808-198908

***,MEDIUM GRAY,TRIM1#

main71440-1D021-04iMA70..GTL,GTT198808-198908

***,DEEP BLUE,TRIM8#

main71440-1D022-02iMA70198908-199008

***,MAROON,TRIM3#

main71440-1D022-03iMA70198908-199008

***,MEDIUM GRAY,TRIM1#

main71440-1D022-04iMA70198908-199008

***,DEEP BLUE,TRIM8#

main71440-1D023-02iJZA70..GTT199008-199305

***,DEEP RED,TRIM3#

main71440-1D023-03iJZA70..GTT199008-199108

***,LIGHT GRAY,TRIM1#

main71440-1D023-B0iJZA70..GTT199108-199305

***,SHADOW GRAY,TRIM1#

main71440-1D031-03iJZA70..GTL;MA70..GTL,GTT198808-199108

main71440-1D031-13iMA70..GTTL198808-198809

***,MEDIUM GRAY,TRIM1#

main71440-1D031-C0iJZA70..GTL199108-199305

main71440-1D350-02iJZA70..GTT199008-199305

main71440-1D350-02iJZA70..GTL199008-199305

***,DEEP RED,TRIM3#

main71440-1D350-03iJZA70..GTL199008-199108

main71440-1D350-03iJZA70..GTT199008-199108

***,LIGHT GRAY,TRIM1#

main71440-1D350-C0iJZA70..GTL199108-199305

***,BLACK,TRIM1#

main71440-1D350-C0iJZA70..GTL199108-199305

main71440-1D390-01iJZA70..GTTR199008-199305

BLACK,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-14211iGA70,MA70198808-199008

main71511-14212iGA70,JZA70..GT,GTL,GTT199008-199305

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-14021iGA70,MA70198808-199008

main71512-14022iGA70,JZA70..GT,GTL,GTT199008-199305

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-14210iGA70,JZA70,MA70..G,GT,GTL,GTT,GTTL198808-199305

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-14210iGA70,JZA70,MA70..G,GT,GTL,GTT,GTTL198808-199305

71561BPAD, FRONT SEATBACK, UPPER

main71561-14190iGA70,JZA70,MA70..G,GT,GTL,GTT,GTTL198808-199305

main71561-14210iGA70,JZA70,MA70..G,GT,GTL,GTT,GTTL198808-199305

main71562-14060iGA70,JZA70,MA70..G,GT,GTL,GTT,GTTL198808-199305

main71562-14070iGA70,JZA70,MA70..G,GT,GTL,GTT,GTTL198808-199305

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-14200iMA70..GTT198908-199008

main71610-14200iGA70;MA70..GTTL198808-199305

main71610-14260iJZA70,MA70..GTL,GTT198808-199305

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-14250iGA70,JZA70,MA70..G,GT,GTL,GTT,GTTL198808-199305

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-14240iGA70,JZA70,MA70..G,GT,GTL,GTT,GTTL198808-199305

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-14200iGA70,JZA70,MA70..G,GT,GTL,GTT,GTTL198808-199305

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-24090-02iMA70..GTL,GTT198808-199008

MAROON,TRIM3#

main71705-24090-02iGA70198808-199008

main71705-24090-03iGA70;JZA70..GTL198808-199108

LIGHT GRAY,TRIM1#

main71705-24090-03iJZA70..GTT199008-199108

main71705-24090-03iMA70..GTL,GTT198808-199008

main71705-24090-12iJZA70..GTT199008-199305

DEEP RED,TRIM3#

main71705-24090-12iJZA70..GTT199008-199305

main71705-24090-13iMA70..GTTL198808-198809

MEDIUM GRAY,TRIM1#

main71705-24090-14iMA70..GTL,GTT198808-199008

main71705-24090-14iGA70198808-199008

DEEP BLUE,TRIM8#

main71705-24090-B0iGA70;JZA70..GTL199108-199305

main71705-24090-B0iGA70;JZA70..GTL199108-199305

SHADOW GRAY,TRIM1#

main71705-24100-02iMA70..GTL,GTT198808-199008

MAROON,TRIM3#

main71705-24100-03iJZA70..GTT;MA70..GTL,GTT198808-199108

MEDIUM GRAY,TRIM1#

main71705-24100-12iJZA70..GTT199008-199108

DEEP RED,TRIM3#

main71705-24100-14iMA70..GTL,GTT198808-199008

DEEP BLUE,TRIM8#

main71705-24100-31iJZA70..GTT199108-199305

DEEP RED,TRIM3#

main71705-24100-B0iJZA70..GTT199108-199305

SHADOW GRAY,TRIM1#

71705CSCREW(FOR FRONT SEATBACK BOARD)

main90149-50043-03iGA70,JZA70..GT,GTL,GTT199108-199305

SHADOW GRAY,TRIM1#

sub90149-50043

main90149-50043-04iGA70,MA70..G,GT,GTL,GTT198808-199008

DEEP BLUE,TRIM8#

sub90149-50043

main90149-50043-12iGA70,MA70..G,GT,GTL,GTT198808-199008

MAROON,TRIM3#

sub90149-50043

main90149-50043-13iGA70,JZA70,MA70..G,GT,GTL,GTT198808-199108

LIGHT GRAY,TRIM1#

sub90149-50043

main90149-50043-22iGA70,JZA70..GT,GTL,GTT199008-199305

DEEP RED,TRIM3#

sub90149-50043

main90149-50043-23iMA70..GTTL198808-198809

MEDIUM GRAY,TRIM1#

sub90149-50043

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-24090-02iMA70..GTL,GTT198808-199008

MAROON,TRIM3#

main71705-24090-02iGA70198808-199008

main71705-24090-03iGA70;JZA70..GTL198808-199108

LIGHT GRAY,TRIM1#

main71705-24090-03iJZA70..GTT199008-199108

main71705-24090-03iMA70..GTL,GTT198808-199008

main71705-24090-12iJZA70..GTT199008-199305

DEEP RED,TRIM3#

main71705-24090-12iGA70;JZA70..GTL199008-199305

main71705-24090-13iMA70..GTTL198808-198809

MEDIUM GRAY,TRIM1#

main71705-24090-14iGA70198808-199008

main71705-24090-14iMA70..GTL,GTT198808-199008

DEEP BLUE,TRIM8#

main71705-24090-B0iJZA70..GTT199108-199305

SHADOW GRAY,TRIM1#

main71705-24090-B0iGA70;JZA70..GTL199108-199305

main71705-24100-02iMA70..GTL,GTT198808-199008

MAROON,TRIM3#

main71705-24100-03iJZA70..GTT;MA70..GTL,GTT198808-199108

MEDIUM GRAY,TRIM1#

main71705-24100-12iJZA70..GTT199008-199108

DEEP RED,TRIM3#

main71705-24100-14iMA70..GTL,GTT198808-199008

DEEP BLUE,TRIM8#

main71705-24100-31iJZA70..GTT199108-199305

DEEP RED,TRIM3#

main71705-24100-B0iJZA70..GTT199108-199305

SHADOW GRAY,TRIM1#

71813ASHIELD, FRONT SEATBACK, RH

main71813-12020-03iGA70,JZA70..GT,GTL,GTT199108-199305

GRAY,TRIM1#

sub71813-12020

main71813-12020-13iGA70,JZA70,MA70..G,GT,GTL,GTT198808-199108

LIGHT GRAY,TRIM1#

sub71813-12020

main71813-12020-14iGA70,MA70..G,GT,GTL,GTT198808-199008

DEEP BLUE,TRIM8#

sub71813-12020

main71813-12020-22iGA70,MA70..G,GT,GTL,GTT198808-199008

MAROON,TRIM3#

sub71813-12020

main71813-12020-23iMA70..GTTL198808-198809

MEDIUM GRAY,TRIM1#

sub71813-12020

main71813-12020-32iGA70,JZA70..GT,GTL,GTT199008-199305

DEEP RED,TRIM3#

sub71813-12020

71814ASHIELD, FRONT SEATBACK, LH

main71814-12010-03iGA70,JZA70..GT,GTL,GTT199108-199305

GRAY,TRIM1#

sub71814-12010

main71814-12010-13iGA70,JZA70,MA70..G,GT,GTL,GTT198808-199108

LIGHT GRAY,TRIM1#

sub71814-12010

main71814-12010-14iGA70,MA70..G,GT,GTL,GTT198808-199008

DEEP BLUE,TRIM8#

sub71814-12010

main71814-12010-22iGA70,MA70..G,GT,GTL,GTT198808-199008

MAROON,TRIM3#

sub71814-12010

main71814-12010-23iMA70..GTTL198808-198809

MEDIUM GRAY,TRIM1#

sub71814-12010

main71814-12010-32iGA70,JZA70..GT,GTL,GTT199008-199305

DEEP RED,TRIM3#

sub71814-12010

71910AHEADREST ASSY, FRONT SEAT

main71910-14680-12iGA70,MA70..G,GT,GTL,GTT198808-199008

MAROON,TRIM3#

sub71910-14680

main71910-14680-13iGA70,MA70..G,GT,GTL,GTT198808-199008

LIGHT GRAY,TRIM1#

sub71910-14680

main71910-14680-24iGA70,MA70..G,GT,GTL,GTT198808-199008

DEEP BLUE,TRIM8#

sub71910-14680

main71910-14700-01iJZA70..GTTR199008-199305

BLACK,TRIM1#

main71910-14730-02iGA70,JZA70..GT,GTT199008-199305

DEEP RED,TRIM3#

main71910-14730-03iGA70,JZA70..GT,GTT199008-199108

LIGHT GRAY,TRIM1#

main71910-14730-B1iGA70,JZA70..GT,GTT199108-199305

SHADOW GRAY,TRIM1#

main71910-24121-02iJZA70..GTL199008-199108

DEEP RED,TRIM3#

main71910-24121-02iJZA70..GTL199008-199108

main71910-24121-03iMA70..GTL,GTT198808-199008

main71910-24121-13iJZA70..GTL;MA70..GTTL198808-199108

MEDIUM GRAY,TRIM1#

main71910-24121-13iJZA70..GTT199008-199108

main71910-24121-C0iJZA70..GTT199108-199305

BLACK,TRIM1#,3#

main71910-24121-C0iJZA70..GTT199108-199305

71911ASTAY, FRONT SEAT HEADREST, RH

main71911-14050iGA70,JZA70,MA70..G,GT,GTL,GTT,GTTL198808-199305

71912ASTAY, FRONT SEAT HEADREST, LH

main71912-14070iGA70,JZA70,MA70..G,GT,GTL,GTT,GTTL198808-199305

71931SUPPORT, FRONT SEAT HEADREST

main71930-14080-01iGA70,JZA70..GT,GTL,GTT199108-199305

sub71930-14080

main71930-14080-14iGA70,MA70..G,GT,GTL,GTT198808-199008

sub71930-14080

main71930-14080-23iGA70,JZA70,MA70..G,GT,GTL,GTT198808-199108

sub71930-14080

main71930-14080-33iMA70..GTTL198808-198809

sub71930-14080

main71930-14080-42iGA70,MA70..G,GT,GTL,GTT198808-199008

sub71930-14080

main71930-14080-52iGA70,JZA70..GT,GTL,GTT199008-199305

sub71930-14080

main71931-14010-01iGA70,JZA70..GT,GTL,GTT199108-199305

sub71931-14010

main71931-14010-14iGA70,MA70..G,GT,GTL,GTT198808-199008

sub71931-14010

main71931-14010-23iGA70,JZA70,MA70..G,GT,GTL,GTT198808-199108

sub71931-14010

main71931-14010-33iMA70..GTTL198808-198809

sub71931-14010

main71931-14010-42iGA70,MA70..G,GT,GTL,GTT198808-199008

sub71931-14010

main71931-14010-52iGA70,JZA70..GT,GTL,GTT199008-199305

sub71931-14010

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-20070iGA70,JZA70,MA70..G,GT,GTL,GTT,GTTL198808-199305

73172ACAP, FRONT SHOULDER BELT HANGER

main73172-14010-02iGA70,MA70..G,GT,GTL,GTT198808-199008

main73172-14010-03iGA70,MA70198808-199008

main73172-14010-04iGA70,MA70..G,GT,GTL,GTT198808-199008

main73172-14010-12iGA70,JZA70..GT,GTL,GTT199008-199305

main73172-14010-13iGA70,JZA70..GT,GTL,GTT199108-199305

RH,SHADOW GRAY,SHADOW GRAY,TRIM1#

main73172-14010-23iGA70,JZA70..GT,GTL,GTT199008-199108

main73173-14020-02iGA70,MA70..G,GT,GTL,GTT198808-199008

main73173-14020-03iGA70,MA70198808-199008

main73173-14020-04iGA70,MA70..G,GT,GTL,GTT198808-199008

main73173-14020-12iGA70,JZA70..GT,GTL,GTT199008-199305

main73173-14020-13iGA70,JZA70..GT,GTL,GTT199108-199305

LH,SHADOW GRAY,SHADOW GRAY,TRIM1#

main73173-14020-23iGA70,JZA70..GT,GTL,GTT199008-199108

73176HANGER, FRONT SHOULDER BELT, RH (FOR FRONT SEAT)

main73176-14040-02iGA70,MA70..G,GT,GTL,GTT198808-198906

MAROON,TRIM3#

sub73176-14041

main73176-14040-03iGA70,MA70198808-198906

MEDIUM GRAY,TRIM1#

sub73176-14041

main73176-14040-04iGA70,MA70..G,GT,GTL,GTT198808-198906

DEEP BLUE,TRIM8#

sub73176-14041

main73176-14041-02iGA70,MA70198906-199006

MAROON,TRIM3#

sub73176-14042

main73176-14041-03iGA70,MA70198906-199006

MEDIUM GRAY,TRIM1#

sub73176-14042

main73176-14041-04iGA70,MA70198906-199006

DEEP BLUE,TRIM8#

sub73176-14042

main73176-14042-02iGA70,MA70199006-199008

MAROON,TRIM3#

sub73176-14042

main73176-14042-03iGA70,MA70199006-199008

MEDIUM GRAY,TRIM1#

sub73176-14042

main73176-14042-04iGA70,MA70199006-199008

DEEP BLUE,TRIM8#

sub73176-14042

main73176-14042-12iGA70,JZA70..GT,GTL,GTT199008-199305

DEEP RED,TRIM3#

sub73176-14042

main73176-14042-13iGA70,JZA70..GT,GTL,GTT199108-199305

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub73176-14042

main73176-14042-23iGA70,JZA70..GT,GTL,GTT199008-199108

SHADOW GRAY,TRIM1#

sub73176-14042

73177HANGER, FRONT SHOULDER BELT, LH (FOR FRONT SEAT)

main73177-14040-02iGA70,MA70..G,GT,GTL,GTT198808-198906

MAROON,TRIM3#

sub73177-14041

main73177-14040-03iGA70,MA70198808-198906

MEDIUM GRAY,TRIM1#

sub73177-14041

main73177-14040-04iGA70,MA70..G,GT,GTL,GTT198808-198906

DEEP BLUE,TRIM8#

sub73177-14041

main73177-14041-02iGA70,MA70198906-199006

MAROON,TRIM3#

sub73177-14042

main73177-14041-03iGA70,MA70198906-199006

MEDIUM GRAY,TRIM1#

sub73177-14042

main73177-14041-04iGA70,MA70198906-199006

DEEP BLUE,TRIM8#

sub73177-14042

main73177-14042-02iGA70,MA70199006-199008

MAROON,TRIM3#

sub73177-14042

main73177-14042-03iGA70,MA70199006-199008

MEDIUM GRAY,TRIM1#

sub73177-14042

main73177-14042-04iGA70,MA70199006-199008

DEEP BLUE,TRIM8#

sub73177-14042

main73177-14042-12iGA70,JZA70..GT,GTL,GTT199008-199305

DEEP RED,TRIM3#

sub73177-14042

main73177-14042-13iGA70,JZA70..GT,GTL,GTT199108-199305

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub73177-14042

main73177-14042-23iGA70,JZA70..GT,GTL,GTT199008-199108

SHADOW GRAY,TRIM1#

sub73177-14042

8513

9014960055

main90149-60055

9015960081

main90159-60081

9017908123

main90179-08123

9046816019

main90468-16019

9165160818

main91651-60818

9331915020

main93319-15020

9356054012

main93560-54012

40 parts on this diagram · 4 diagrams in section
