FLOOR SIDE MEMBER

51204DDAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER

main51204-24010iGA70..G,GT;GA70,MA70..WIB198808-199305

51681BRACKET, FLEXIBLE HOSE

main51681-14010×2iGA70,JZA70,MA70198808-199305

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-14010iJZA70;GA70..LB..WIB;GA70,MA70..AET198808-199108

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-14010iJZA70;GA70..LB..WIB;GA70,MA70..AET198808-199305

57071BOX SUB-ASSY, TORQUE, REAR RH

main57071-14040iGA70,JZA70,MA70198808-199305

57072BOX SUB-ASSY, TORQUE, REAR LH

main57072-14040iGA70,JZA70,MA70198808-199305

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-14901iGA70,JZA70199108-199305

main57101-14902iMA70..LB;GA70..LB..NOB198808-199108

main57101-14904iMA70..AET;GA70..AET..NOB198808-199108

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-14901iGA70..WIB198908-199008

main57102-14902iMA70..LB;GA70..LB..NOB198808-199008

main57102-14904iMA70..AET;GA70..AET..NOB198808-199008

main57102-14905iGA70..LB..NOB199008-199305

main57102-14906iGA70,JZA70..WIB199008-199305

main57102-14907iGA70..AET..NOB199008-199108

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-14020iGA70,JZA70,MA70198808-199305

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-14010iGA70,JZA70,MA70198808-199305

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57209-14310iGA70..5F..GTT198808-198901

main57209-14311iGA70..NOB..5F..GTT198901-199305

main57209-14320iGA70..4FC..GTT198808-198901

main57209-14321iGA70..NOB..4FC..GTT198901-199305

main57209-14330iJZA70199008-199305

main57209-24030iGA70..5F..(G,GT)198808-198901

main57209-24031iGA70..WIB..5F;GA70..5F..(G,GT)198901-199305

main57209-24040iMA70;GA70..4FC..(G,GT)198808-198901

main57209-24041iMA70..5F;GA70..WIB..4FC;GA70..4FC..(G,GT)198901-199305

main57209-24050iMA70..4FC198901-199008

57257BRACKET, ENGINE REAR SUPPORT MEMBER

main57257-14060iGA70,JZA70,MA70198808-199305

main57258-14060iGA70,JZA70,MA70198808-199305

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-14230iGA70,JZA70,MA70..LB198808-199305

main57401-14240iGA70,JZA70,MA70..AET198808-199305

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-14210iGA70,JZA70,MA70..LB198808-199305

main57402-14220iGA70,JZA70,MA70..AET198808-199305

57405CMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR

main57405-14070iGA70,JZA70,MA70198808-199305

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-14020iGA70,JZA70,MA70198808-199305

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-14060iGA70,JZA70,MA70198808-199305

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-14060iGA70,JZA70,MA70198808-199108

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57426-14030iGA70,JZA70,MA70198808-199305

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-14030iGA70,JZA70,MA70198808-199305

57435MEMBER, CENTER FLOOR SIDE, RH

main57435-14060iGA70,JZA70,MA70198808-199305

57436MEMBER, CENTER FLOOR SIDE, LH

main57436-14050iGA70,JZA70,MA70198808-199305

57451MEMBER, FRONT FLOOR CROSS

main57451-14040iGA70,JZA70,MA70198808-199305

57463MEMBER, CENTER FLOOR CROSS, NO.3

main57463-14050iGA70,JZA70,MA70198808-199305

57464STRENGTH, CENTER FLOOR CROSSMEMBER

main57464-14020iGA70,JZA70,MA70198808-199305

57475PLATE, FRONT FLOOR CROSSMEMBER

main58103-14010iGA70,JZA70,MA70198808-199305

main58104-14010iGA70,JZA70,MA70198808-199305

57523BRACE, CENTER FLOOR CROSSMEMBER

main57523-14010iGA70,JZA70,MA70198808-199305

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-14150iGA70,JZA70,MA70198808-199305

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-14140iGA70,JZA70,MA70198808-199305

57648GUSSET, QUARTER WHEEL HOUSE, NO.1 RH

main57648-14010iGA70,JZA70,MA70198808-199305

57649GUSSET, QUARTER WHEEL HOUSE, NO.1 LH

main57649-14010iGA70,JZA70,MA70198808-199305

57737REINFORCEMENT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, RH

main57737-14020iGA70,JZA70,MA70198808-199305

57747REINFORCEMENT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, LH

main57747-14020iGA70,JZA70,MA70198808-199305

57805REINFORCEMENT SUB-ASSY, BELT ANCHOR

main57805-14040iGA70,JZA70,MA70198808-199305

main57806-14040iGA70,JZA70,MA70198808-199305

58139APLATE, FRONT FLOOR SIDE, REAR RH

main58139-14010iGA70,JZA70,MA70198808-199305

9011908177

main90119-08177

9017908068

main90179-08068

9033335002

main90333-35002

9095001007

main90950-01007

9095001056

main90950-01056

9095001247

main90950-01247

9095001259

main90950-01259

9095001356

main90950-01356

9095001398

main90950-01398

9095001529

main90950-01529

9095001668

main90950-01668

9165140616

main91651-40616

9165561020

main91655-61020

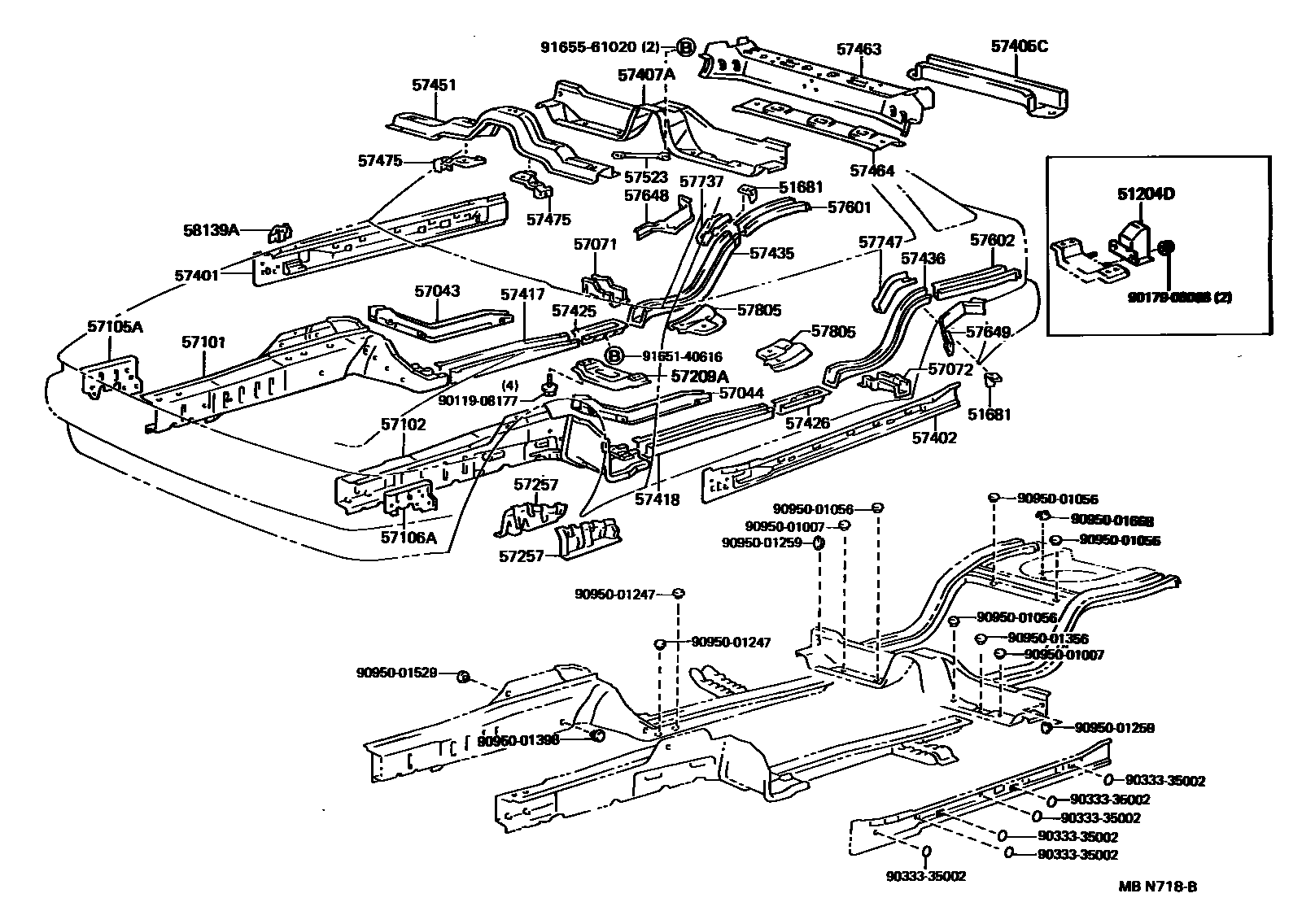

48 parts on this diagram · 1 diagram in section
