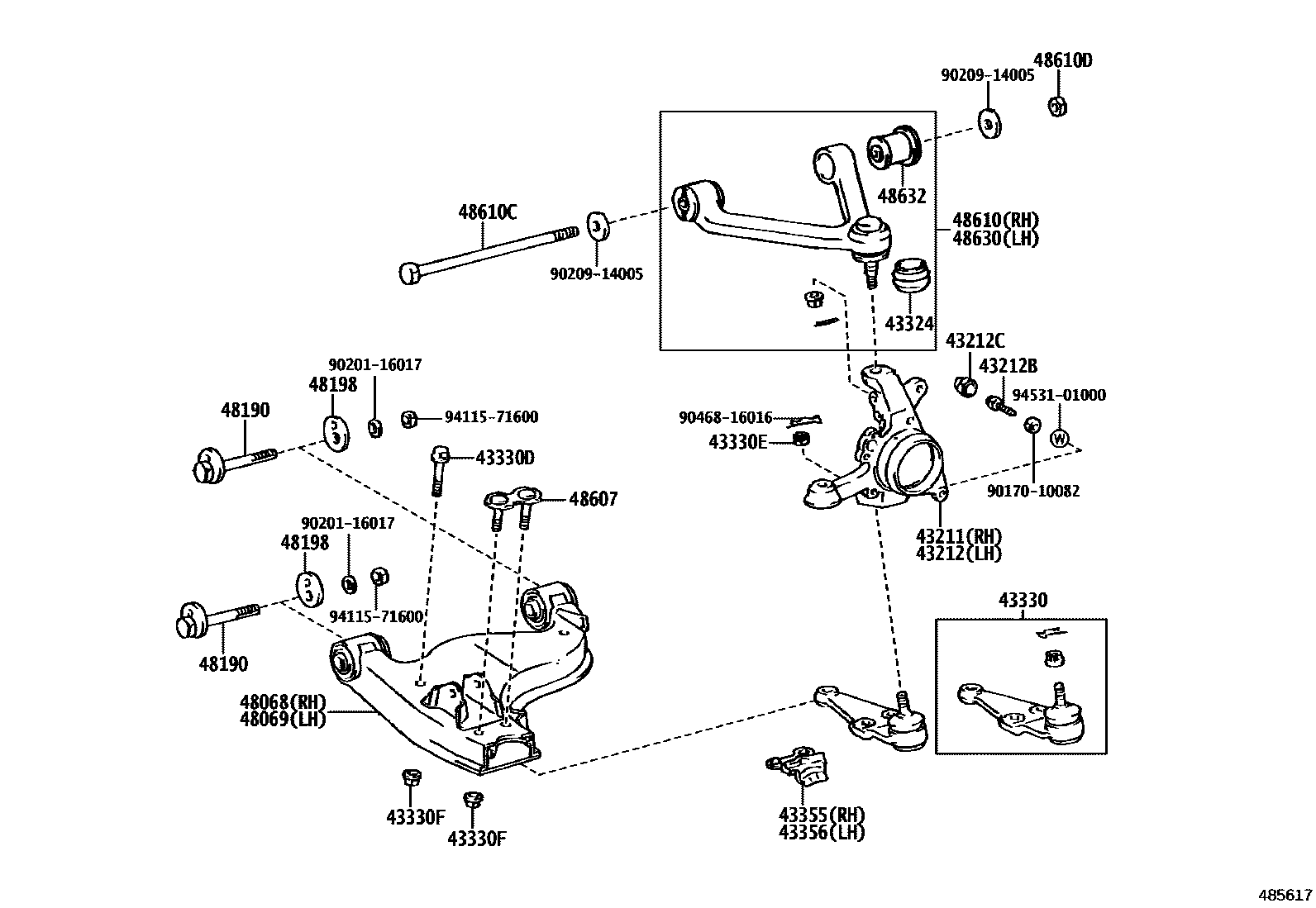

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-14051iGA70,MA70..GT,GTT198808-198811

main43211-14052iJZA70,MA70..GTL198811-199305

main43211-14061iGA70,MA70..G,GT,GTT,GTTL198808-198811

main43211-14062iGA70,JZA70,MA70..G,GT,GTT,GTTR198811-199305

43212KNUCKLE, STEERING, LH

main43212-14021iMA70..GTL198808-198811

main43212-14022iJZA70,MA70..GTL198811-199305

main43212-14031iGA70,MA70..G,GT,GTT,GTTL198808-198811

main43212-14032iGA70,JZA70,MA70..G,GT,GTT,GTTR198811-199305

43212BBOLT (FOR FRONT KNUCKLE STOPPER)

main90106-10002iGA70,JZA70,MA70198808-199305

43212CCOVER, FRONT KNUCKLE STOPPER

main45619-14020iGA70,JZA70,MA70198808-199305

43324COVER, UPPER JOINT DUST

main43324-14010iGA70,JZA70,MA70198808-199305

43330JOINT ASSY, LOWER BALL, FRONT

main43330-19056iGA70,JZA70,MA70198808-199305

sub43330-19057

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90105-14045iGA70,JZA70,MA70198808-199305

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main90171-16003iGA70,JZA70,MA70198808-199305

43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)

main90179-14025iGA70,JZA70,MA70198808-199305

43355DEFLECTOR, LOWER ARM ICE, RH

main43355-14020iGA70,JZA70,MA70..G,GT,GTL,GTT,GTTR198808-199305

43356DEFLECTOR, LOWER ARM ICE, LH

main43355-14020iGA70,JZA70,MA70..G,GT,GTL,GTT,GTTR198808-199305

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-14041iGA70..G,GT198808-199008

main48068-14051iGA70,MA70..GTL,GTT,GTTL198808-199008

main48068-14060iGA70,JZA70199008-199108

main48068-14070iGA70,JZA70199108-199305

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-14041iGA70..G,GT198808-199008

main48069-14051iGA70,MA70..GTL,GTT,GTTL198808-199008

main48069-14060iGA70,JZA70199008-199108

main48069-14070iGA70,JZA70199108-199305

48190CAM ASSY, CAMBER ADJUST

main48190-14020iGA70,JZA70,MA70198808-199305

main48190-14030iGA70,JZA70,MA70198808-199305

48198CAM, CAMBER ADJUST, NO.2

main48198-14020iGA70,JZA70,MA70198808-199305

main48198-14030iGA70,JZA70,MA70198808-199305

48607PLATE SUB-ASSY, LOWER ARM ATTACHMENT

main48607-14011iGA70,JZA70,MA70198808-199305

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-19015iGA70,JZA70,MA70198808-199305

48610CBOLT(FOR SUSPENSION UPPER ARM)

main90101-14029iGA70,JZA70,MA70198808-199305

48610DNUT(FOR SUSPENSION UPPER ARM)

main90170-14006iGA70,JZA70,MA70198808-199112

main90170-14026iGA70,JZA70199112-199305

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-19015iGA70,JZA70,MA70198808-199305

48632BUSH, UPPER ARM

main48632-14010iGA70,JZA70,MA70198808-199305

9017010082

main90170-10082

9020116017

main90201-16017

9020914005

main90209-14005

9046816016

main90468-16016

9411571600

main94115-71600

9453101000

main94531-01000

27 parts on this diagram · 1 diagram in section
