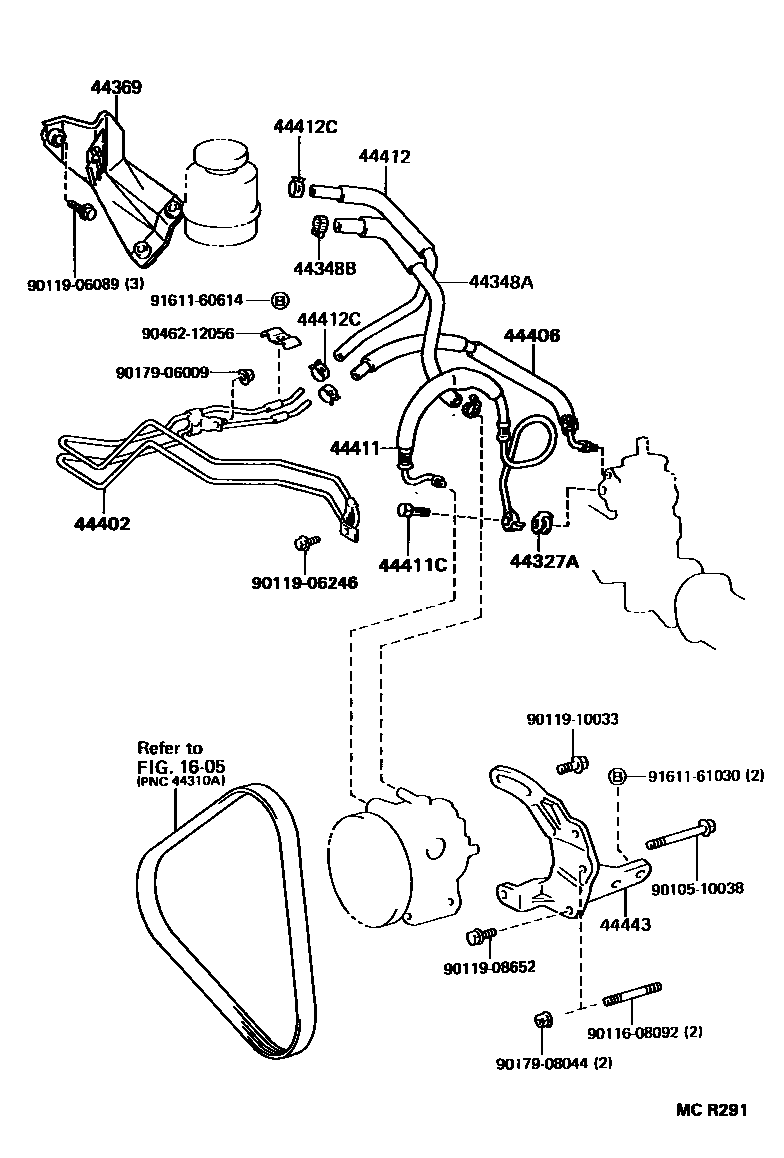

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iGA70..G,GT198808-199305

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-14090iGA70198808-199305

main44348-14110iJZA70199008-199305

main44348-14120iMA70198808-199008

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90467-21005iGA70,JZA70,MA70198808-199305

sub90467-21010

44369BRACKET, OIL RESERVOIR, NO.1

main44369-14020iMA70198808-199008

main44390-14010iGA70198808-199305

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-14150iGA70..G,GT198808-199305

main44402-14170iGA70,MA70..GTL,GTT,GTTL198808-199305

main44402-14200iJZA70199008-199305

main44402-14210iJZA70199008-199305

44406TUBE SUB-ASSY, RETURN

main44406-14050iGA70..G,GT198808-199305

main44406-24030iGA70,JZA70,MA70..GTL,GTT,GTTL,GTTR198808-199305

44411HOSE, PRESSURE FEED

main44411-14180iGA70..G,GT198808-199305

main44411-14220iJZA70199008-199203

sub44411-14221

main44411-14221iJZA70199203-199305

main44411-24060iMA70198808-199008

main44411-24070iGA70..GTT198808-199305

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16013iGA70..G,GT198808-199305

44412HOSE, RETURN

main44412-14200iGA70198808-199305

main44412-14220iMA70198808-199008

44412CCLAMP(FOR RETURN HOSE)

main90467-16008iGA70,JZA70,MA70198808-199305

sub90467-16019

44443BRACKET, PUMP

main44443-14010iMA70198808-199008

main44443-22050iGA70198808-199305

9010510038

main90105-10038

9011608092

main90116-08092

9011906089

main90119-06089

9011906246

main90119-06246

9011908652

main90119-08652

9011910033

main90119-10033

9017906009

main90179-06009

9017908044

main90179-08044

9046212056

main90462-12056

9161160614

main91611-60614

9161161030

main91611-61030

23 parts on this diagram · 4 diagrams in section
