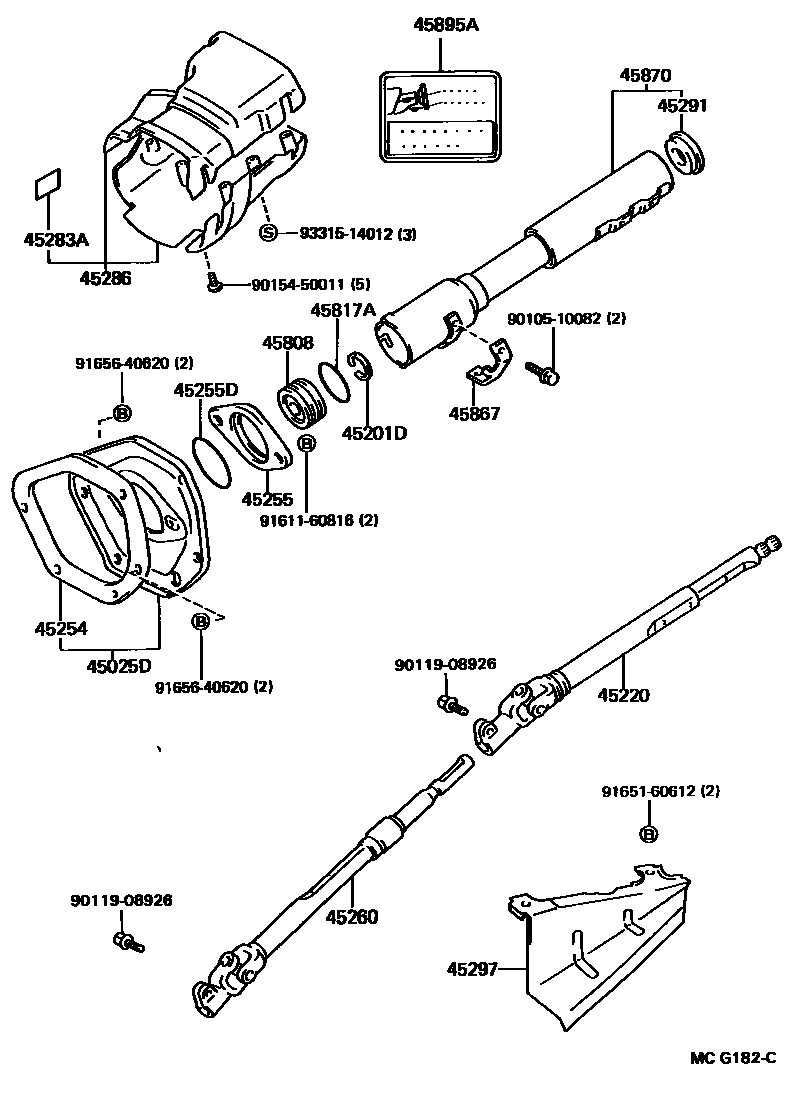

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-14150iGA70,JZA70,MA70198808-199305

main45025-14170iGA70,JZA70..WIB..(GTL,GTT)199008-199305

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iGA70,JZA70,MA70198808-199305

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-14180iGA70..G198808-199008

main45220-14190iMA70..GTT198808-199305

main45220-14200iJZA70..GTL;MA70..GTL,GTT198808-199305

45254SHIELD, STEERING COLUMN HOLE

main45254-14050iGA70,JZA70,MA70198808-199305

45255PLATE, STEERING COLUMN HOLE COVER

main45255-12030iGA70,JZA70,MA70198808-199305

45255DRING, O(FOR STEERING COLUMN HOLE COVER PLATE)

main90301-59001iGA70,JZA70,MA70198808-199305

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-14240iGA70..G,GT198808-199008

main45260-14280iGA70,MA70..GTL,GTT198808-199008

main45260-14310iMA70..GTTL198808-199008

main45260-14320iGA70..GT199008-199305

main45260-14330iGA70,JZA70..GTL,GTT,GTTR199008-199305

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iGA70,JZA70,MA70198808-199305

45286COVER, STEERING COLUMN

main45286-14930-01iGA70..5F..G198808-199008

BLACK,TRIM1#,3#,8#

sub45286-14930

main45286-14931-01iMA70..GTTL198808-199008

BLACK,TRIM1#,3#,8#

sub45286-14931

main45286-14931-01iGA70,MA70..5F..(GT,GTL,GTT)198808-199305

BLACK,TRIM1#

sub45286-14931

main45286-14931-01iJZA70..5F..GTTR199008-199305

BLACK,TRIM1#,3#

sub45286-14931

main45286-14933iGA70..4FC..G198808-199008

main45286-14934iGA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR)198808-199305

main45286-14937iGA70,JZA70199008-199305

45291SEAL, MAIN SHAFT UPPER DUST

main45282-22010iGA70,JZA70,MA70198808-199305

45297INSULATOR, STEERING YOKE HEAT

main45297-14030iGA70,MA70..G,GT,GTL,GTT198808-199008

sub45297-14060

main45297-14060iGA70,JZA70199008-199305

45808STOPPER SUB-ASSY, STEERING SHAFT THRUST

main45808-12030iGA70,JZA70,MA70198808-199305

45817STOPPER, STEERING SHAFT THRUST

main45817-14010iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)

main96711-24053iGA70,JZA70,MA70198808-199305

45867RETAINER, STEERING MAIN SHAFT STOPPER

main45867-12010iGA70,JZA70,MA70198808-199305

45870TUBE ASSY, STEERING COLUMN

main45870-14140iGA70..G198808-199008

main45870-14150iMA70..GTTL;GA70,JZA70..GT,GTT,GTTR198808-199305

main45870-14160iJZA70..GTL;MA70..GTL,GTT198808-199305

main45870-14170iJZA70..GTL199008-199305

main45870-14170iJZA70..GTL199008-199305

main45870-14180iGA70,JZA70..WIB..GTT199008-199305

45895APLATE, TILT STEERING CAUTION

main45895-14020iGA70,JZA70199008-199305

main45895-20060iGA70..G198808-199008

main45895-32010iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

9010510082

main90105-10082

9011908926

main90119-08926

9015450011

main90154-50011

9161160816

main91611-60816

9165160612

main91651-60612

9165640620

main91656-40620

9331514012

main93315-14012

24 parts on this diagram · 3 diagrams in section
