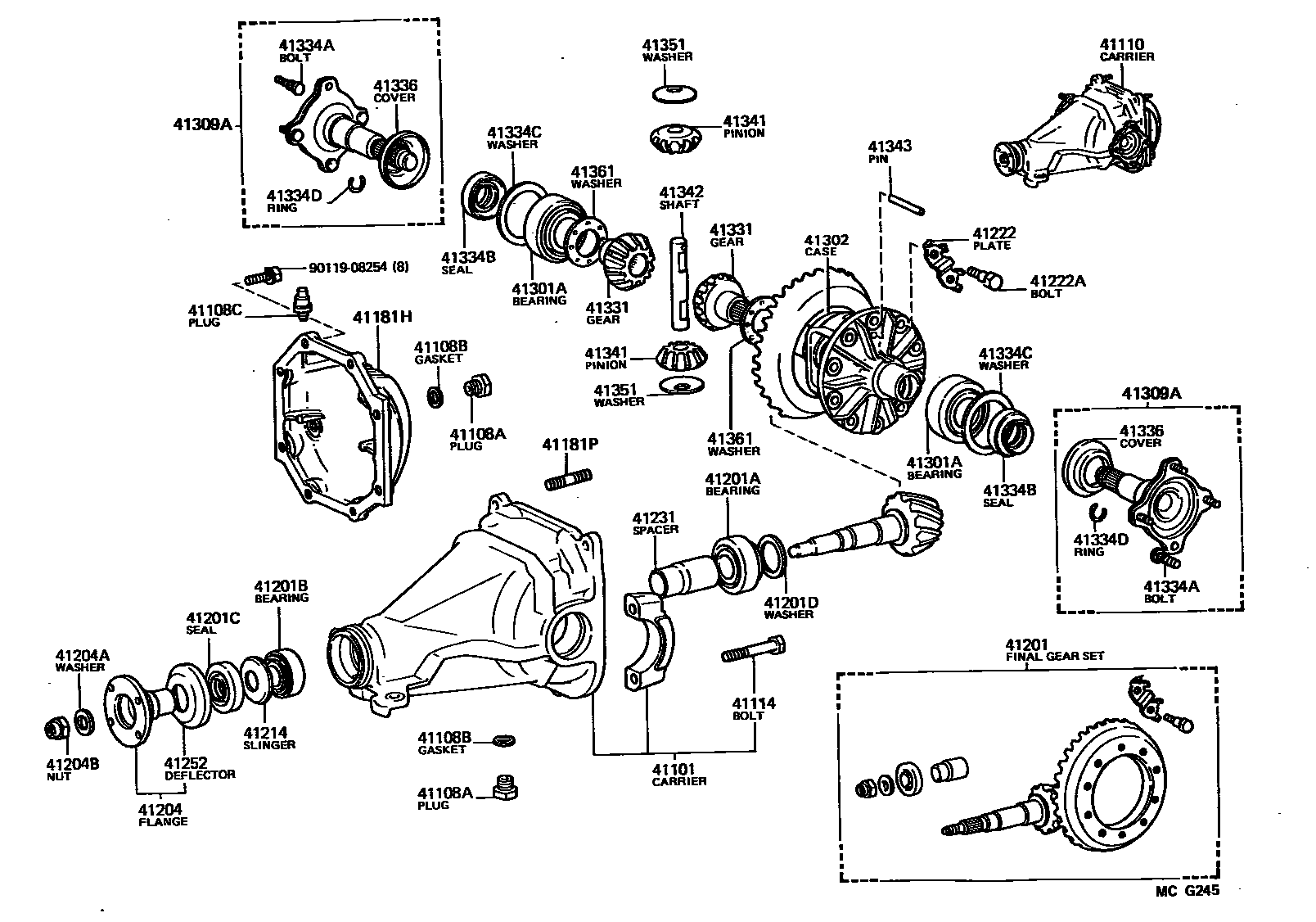

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1������ ����� ���������� 0004 1��� ������ ������ ����� �����

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-14050iGA70..G198808-199008

main41101-14061iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

41108APLUG (FOR REAR DIFFERENTIAL CARRIER COVER)

main90341-18006iGA70,JZA70,MA70198808-199305

main90341-18030iGA70,JZA70,MA70198808-199305

41108BGASKET (FOR REAR DIFFERENTIAL CARRIER COVER)

main12157-10010iGA70,JZA70,MA70198808-199305

41108CPLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)

main90930-03031iGA70,JZA70,MA70198808-199305

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-14460iMA70..GTT198808-199008

sub41110-14461

main41110-14470iMA70..GTL,GTTL198808-199008

main41110-14480iJZA70..4FC..GTT199008-199305

sub41110-14481

main41110-14531iGA70..GTT198808-199305

sub41110-14532

main41110-14541iGA70..GT,GTT198808-199008

main41110-14550iGA70..5F..G198808-199008

main41110-14570iMA70..GTTL198808-198809

3.0 GT TURBO A

main41110-14590iJZA70..5F..(GTL,GTTR)199008-199305

main41110-14590iJZA70..5F..(GTL,GTTR)199008-199305

main41110-14600iGA70199008-199305

main41110-14620iJZA70..4FC..GTT199008-199305

main41110-14620iJZA70..4FC..GTT199008-199305

main41110-14630iJZA70..5F..GTT199008-199305

sub41110-14631

main41110-14670iGA70..GT198808-199305

main41110-24090iGA70..4FC..G198808-199008

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053iGA70..G198808-198908

main90105-12163iGA70..G198908-199008

main90105-12164iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

41181HCOVER, REAR DIFFERENTIAL CARRIER

main41181-14040iGA70..G198808-199008

main41181-14051iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

41181PBOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING)

main90116-12013iGA70,JZA70,MA70198808-199305

L=71.5

main90116-12014iGA70,JZA70,MA70198808-199305

L=81.5

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-19535iJZA70..4FC199008-199305

sub41201-19805

main41201-19545iJZA70..5F199008-199305

main41201-19557iGA70..GT198808-199305

main41201-19595iMA70..GTTL198808-198809

3.0 GT TURBO A

main41201-29595iMA70198808-199008

main41201-80003iGA70..5F..G198808-199008

sub41201-80109

main41201-80004iGA70..4FC..G198808-199008

main41201-80009iGA70..GT199008-199208

sub41201-19557

main41201-80009iGA70..GTT199008-199208

sub41201-19557

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35023iGA70..G198808-199008

main90366-35028iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

sub90366-35087

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iGA70..G198808-199008

sub90366-30078

main90366-30025iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

sub90366-30067

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38010iGA70,JZA70,MA70198808-199305

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iGA70..G198808-199008

main90201-35397iGA70..G198808-199008

main90201-35398iGA70..G198808-199008

main90201-35399iGA70..G198808-199008

main90201-35400iGA70..G198808-199008

main90201-35401iGA70..G198808-199008

main90201-35402iGA70..G198808-199008

main90201-35403iGA70..G198808-199008

main90201-35404iGA70..G198808-199008

main90201-35434iGA70..G198808-199008

sub90201-35515

main90201-35435iGA70..G198808-199008

sub90201-35516

main90201-35436iGA70..G198808-199008

sub90201-35517

main90201-35437iGA70..G198808-199008

sub90201-35518

main90201-35438iGA70..G198808-199008

main90201-35439iGA70..G198808-199008

main90201-35440iGA70..G198808-199008

main90201-35441iGA70..G198808-199008

main90201-35497iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-35498iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-35499iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-35500iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-35501iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-35502iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-35503iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-35504iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-35505iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-35506iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-35507iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-35508iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-35509iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-35510iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-35511iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-35512iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-35513iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-35514iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-35515iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-35516iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-35517iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-35518iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-20030iGA70..G198808-199008

main41204-35040iGA70,MA70..GT,GTL,GTT,GTTL198808-199001

main41204-35041iGA70,JZA70,MA70..GT,GTL,GTT,GTTR199001-199305

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-18485iGA70..G198808-199008

main90201-20005iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199108

41204BNUT (FOR REAR DRIVE PINION)

main90179-18001iGA70..G198808-199008

main90179-20001iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199108

main90179-20018iGA70,JZA70199108-199305

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main41214-30021iGA70..G198808-199008

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main41222-35030iGA70..G198808-199008

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iGA70,JZA70,MA70198808-199305

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iGA70..G198808-199008

main41231-24010iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-30010iGA70..G198808-199008

main41252-35010iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

sub41252-35020

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50001iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90368-50006iGA70..G198808-199008

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-14070iJZA70..GTL,GTTR199008-199305

main41302-24010iGA70,JZA70,MA70..GTT198808-199305

main41302-24020iGA70..GT,GTT198808-199008

main41311-22060iGA70..G198808-199008

main41311-22080iGA70..GT198808-199305

41309ASHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR

main41309-14040iGA70..G198808-199008

main41309-14060iMA70;GA70,JZA70..GTT198808-199305

main41309-14060iGA70..GT198808-199008

main41309-14070iJZA70..GTL,GTTR199008-199305

main41309-30020iGA70..GT198808-199305

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-22041iGA70..G198808-199008

sub41331-14040

main41331-22060iGA70..GT198808-199305

main41331-24020iGA70..GT198808-199008

main41331-24020iMA70;GA70,JZA70..GTT198808-199305

41334ABOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90114-10028iMA70;GA70,JZA70..GT,GTT198808-199305

41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90311-38011iGA70..G198808-199008

main90311-43001iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

sub90311-43009

41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90201-52001iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52002iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52003iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52004iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52005iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52006iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52007iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52008iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52009iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52010iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52011iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52012iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52013iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52014iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52015iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52016iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52017iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52018iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52019iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52020iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52021iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52022iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52023iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52024iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52025iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52026iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52027iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52028iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52029iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52030iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-52031iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

main90201-65007iGA70..G198808-199008

main90201-65008iGA70..G198808-199008

main90201-65009iGA70..G198808-199008

main90201-65010iGA70..G198808-199008

main90201-65011iGA70..G198808-199008

main90201-65012iGA70..G198808-199008

main90201-65013iGA70..G198808-199008

main90201-65014iGA70..G198808-199008

main90201-65015iGA70..G198808-199008

main90201-65016iGA70..G198808-199008

main90201-65017iGA70..G198808-199008

main90201-65018iGA70..G198808-199008

main90201-65019iGA70..G198808-199008

main90201-65020iGA70..G198808-199008

main90201-65021iGA70..G198808-199008

main90201-65022iGA70..G198808-199008

main90201-65023iGA70..G198808-199008

main90201-65024iGA70..G198808-199008

main90201-65025iGA70..G198808-199008

main90201-65026iGA70..G198808-199008

main90201-65027iGA70..G198808-199008

main90201-65028iGA70..G198808-199008

main90201-65029iGA70..G198808-199008

41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90521-29002iGA70..G198808-199008

main90521-34003iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

41336COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main41336-22010iGA70..G198808-199008

main41336-24010iGA70,JZA70,MA70..GT,GTL,GTT,GTTL,GTTR198808-199305

41341PINION, REAR DIFFERENTIAL

main41341-30020iGA70..G198808-199008

sub41341-30050

main41341-30040iGA70..GT198808-199305

main41341-35010iGA70..GT198808-199008

sub41341-14041

main41341-35010iMA70;GA70,JZA70..GTT198808-199305

sub41341-14041

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-22020iGA70..G198808-199008

sub41342-22021

main41342-22030iGA70..GT198808-199305

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iGA70..G,GT198808-199305

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30052iGA70..GT198808-199305

main41351-30060iGA70..G198808-199008

main41351-30060iMA70;GA70,JZA70..GTT198808-199305

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-24010iGA70,JZA70,MA70..GTT198808-199305

sub41361-60E10

main41361-24020iGA70,JZA70,MA70..GTT198808-199305

sub41361-60E50

main41361-24030iGA70,JZA70,MA70..GTT198808-199305

sub41361-60E90

main41361-24040iGA70,JZA70,MA70..GTT198808-199305

sub41361-60F30

main41361-24050iGA70,JZA70,MA70..GTT198808-199305

sub41361-60F70

main41361-30040iGA70..G198808-199008

main41361-30050iGA70..G198808-199008

main41361-30060iGA70..G198808-199008

main41361-30070iGA70..G198808-199008

main41361-30080iGA70..G198808-199008

main41361-30090iGA70..G198808-199008

main41361-30100iGA70..G198808-199008

main41361-40021iGA70..GT198808-199305

9011908254

main90119-08254

36 parts on this diagram · 4 diagrams in section
