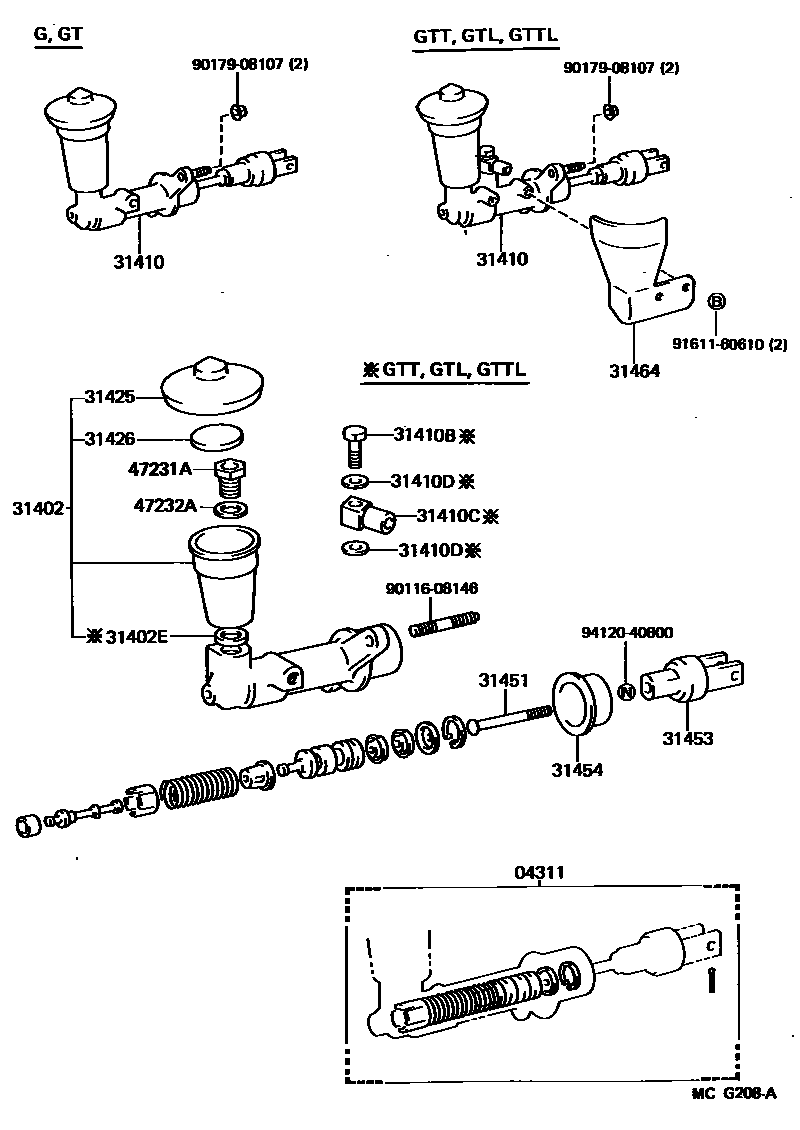

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12060iGA70,JZA70..5F199008-199203

sub04311-12080

main04311-12080iGA70,JZA70..5F199203-199305

main04311-22050iGA70,MA70..5F198808-199008

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-14010iGA70..5F..(G,GT)198808-199008

main31402-14020iGA70,MA70..5F..(GTL,GTT,GTTL)198808-199008

main31402-14030iGA70,JZA70..5F..(GTL,GTT,GTTR)199008-199305

main31402-14040iGA70..5F..GT199008-199305

31402ERING(FOR CLUTCH MASTER CYLINDER RESERVOIR)

main90562-18151iGA70,MA70..5F..(GTL,GTT,GTTL)198808-199008

31410CYLINDER ASSY, CLUTCH MASTER

main31410-14192iGA70..5F..(G,GT)198808-198811

sub31410-14193

main31410-14193iGA70..5F..(G,GT)198811-199008

main31410-14212iGA70,MA70..5F..(GTL,GTT,GTTL)198808-198811

sub31410-14213

main31410-14213iGA70,MA70..5F..(GTL,GTT)198811-199008

main31410-14280iGA70,JZA70..5F..(GTL,GTT,GTTR)199008-199305

main31410-14290iGA70..5F..GT199008-199305

31410BBOLT, UNION(FOR CLUTCH MAS CYLINDER TO FLEXIBLE HOSE TUBE)

main90401-10012iGA70,MA70..5F..(GTL,GTT,GTTL)198808-199008

main90401-10046iGA70,JZA70..5F199008-199205

main90401-10056iGA70,JZA70..5F199205-199305

31410CUNION(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

main90405-10165iGA70,MA70..5F..(GTL,GTT,GTTL)198808-199305

31410DGASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

main90430-10074iGA70,MA70..5F..(GTL,GTT,GTTL)198808-199305

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iGA70,JZA70,MA70..5F198808-199305

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iGA70,JZA70,MA70..5F198808-199305

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22070iGA70,MA70..5F198808-199008

main31451-35080iGA70,JZA70..5F199008-199305

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-14010iGA70,MA70..5F198808-198809

sub31404-14011

main31404-14011iGA70,MA70..5F198809-199008

main31404-14030iGA70,JZA70..5F199008-199305

sub31404-22020

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14020iGA70,JZA70,MA70..5F198808-199305

31464INSULATOR, CLUTCH MASTER CYLINDER HEAT

main31464-14010iGA70,MA70..5F..(GTL,GTT,GTTL)198808-199008

main31464-14020iGA70,JZA70..5F..(GTL,GTT,GTTR)199008-199305

47231ABOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-20010iGA70,MA70..5F..(GTL,GTT,GTTL)198808-199008

main47231-30010iGA70..5F..(G,GT)198808-199008

47232AWASHER, CLUTCH MASTER CYLINDER RESERVOIR SET BOLT

main47232-30010iGA70..5F..(G,GT)198808-199008

9011608146

main90116-08146

9017908107

main90179-08107

9161160610

main91611-60610

9412040800

main94120-40800

19 parts on this diagram · 2 diagrams in section
