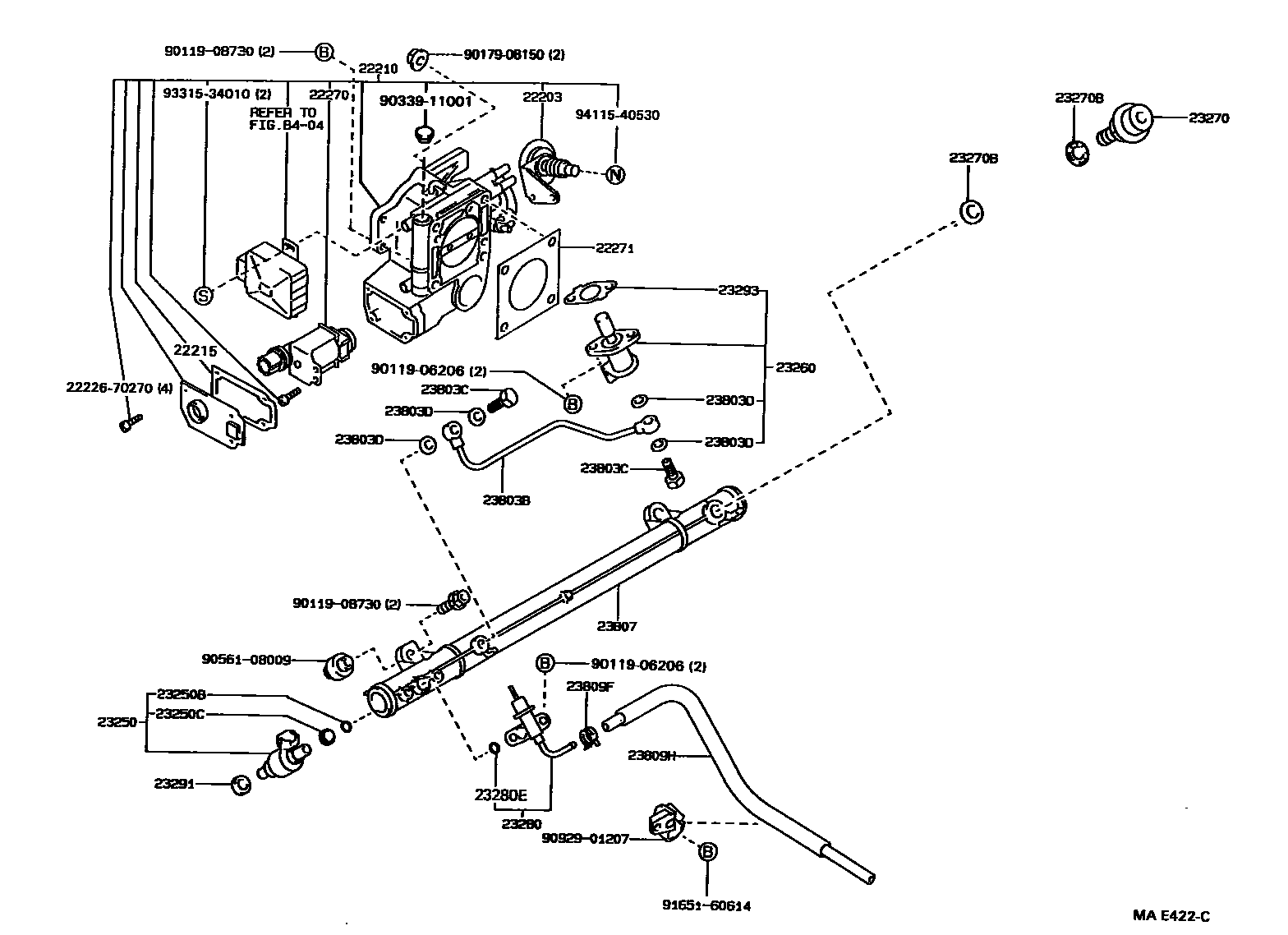

FUEL INJECTION SYSTEM
22203DASH POT SUB-ASSY(FOR THROTTLE BODY)
22210BODY ASSY, THROTTLE
22215GASKET, THROTTLE BODY COVER
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23270BGASKET(FOR PULSATION DAMPER HOSE)
DAMPER SIDE
DAMPER SIDE,*53
DELIVERY SIDE
DELIVERY SIDE,*54
DELIVERY PIPE SIDE
FILTER SIDE
DELIVERY SIDE,*53 & (9008-9305)*54
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23803BPIPE SUB-ASSY, FUEL, NO.3
23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
*54
*53
23807PIPE SUB-ASSY, FUEL DELIVERY
23809SUPPORT SUB-ASSY, FUEL PIPE
23809HHOSE, FUEL PIPE SUPPORT TO REGULATOR
*53
8404
2222670270
main22226-70270
9011906206
main90119-06206
9011908730
main90119-08730
9017908150
main90179-08150
9033911001
main90339-11001
9056108009
main90561-08009
9092901207
main90929-01207
9165160614
main91651-60614
9331534010
main93315-34010
9411540530
main94115-40530
33 parts on this diagram · 12 diagrams in section
