AIR CLEANER

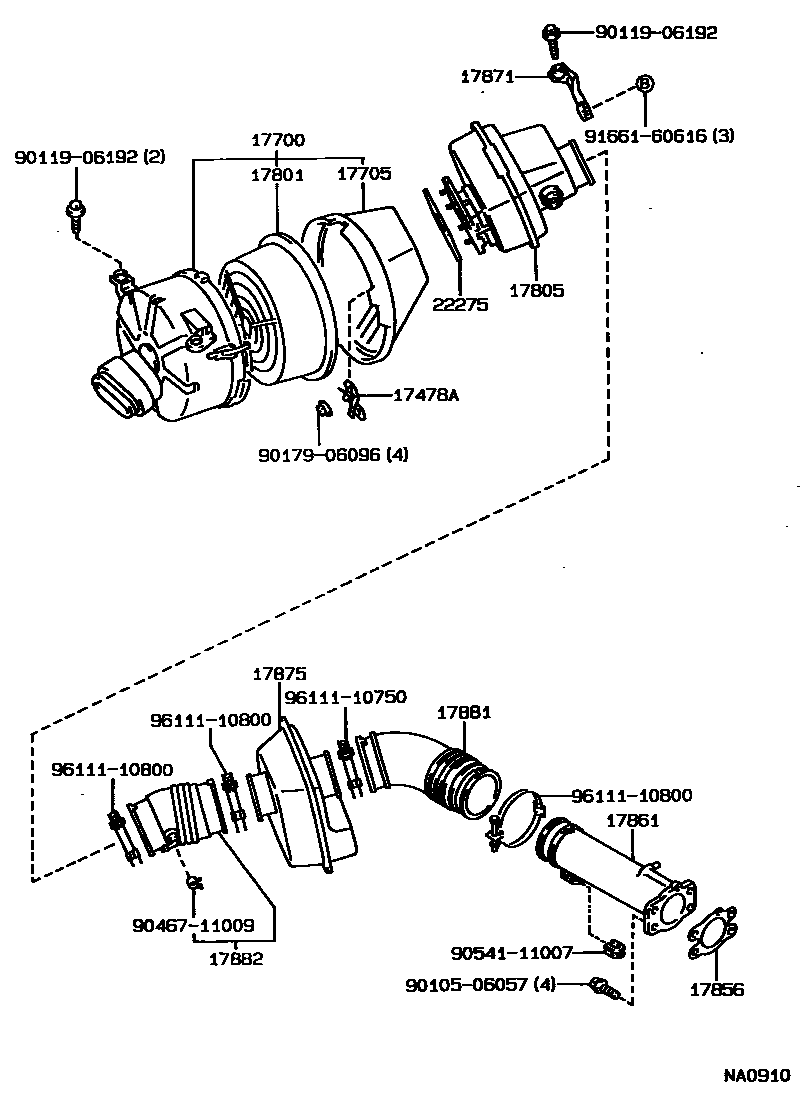

Parts diagram

17478APLATE, LOCK

main17478-42010×2i198808-199008

main17478-43010×2i198808-199305

17700CLEANER ASSY, AIR

main17700-42210i198808-199008

main17700-42250i198808-198809

main17700-46090i199008-199305

main17700-70050i198808-199305

17705CAP SUB-ASSY, AIR CLEANER

main17705-42100i198808-199008

main17705-42140i198808-198809

main17705-46070i199008-199305

main17705-70050i198808-199305

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-46050i199008-199305

main17801-70020i198808-199305

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-70050i198808-199305

17856GASKET, AIR INTAKE FLANGE

main17856-70020i198808-199008

main17856-88300i198808-199305

17861CONNECTOR, INTAKE AIR

main17860-42010i198808-199008

main17860-42060i198808-198809

main17861-70020i198808-199008

main17861-88303i198808-199305

main17861-88341i198808-199305

main17861-88400i199008-199108

main17861-88401i199108-199305

17871STAY, AIR CONNECTOR

main17871-42010i198808-199008

main17871-70010i198808-199305

main17871-88340i198808-199305

17875PIPE, INTAKE AIR CONNECTOR

main17875-70110i198808-199305

17881HOSE, AIR CLEANER, NO.1

main17346-42010i198808-198809

main17346-42020i198808-199008

main17881-46050i199008-199305

main17881-70160i198808-199305

main17881-70170i198808-199305

main17881-70230i198808-199008

17882HOSE, AIR CLEANER, NO.2

main17345-42020i198808-199008

main17890-70010i198808-199305

22275GASKET, AIR FLOW METER

main22275-42020i198808-199008

main22275-43010i198808-199305

9010506057

main90105-06057

9011906192

main90119-06192

9017906096

main90179-06096

9046711009

main90467-11009

9054111007

main90541-11007

9166160616

main91661-60616

9611110750

main96111-10750

9611110800

main96111-10800

20 parts on this diagram · 6 diagrams in section
