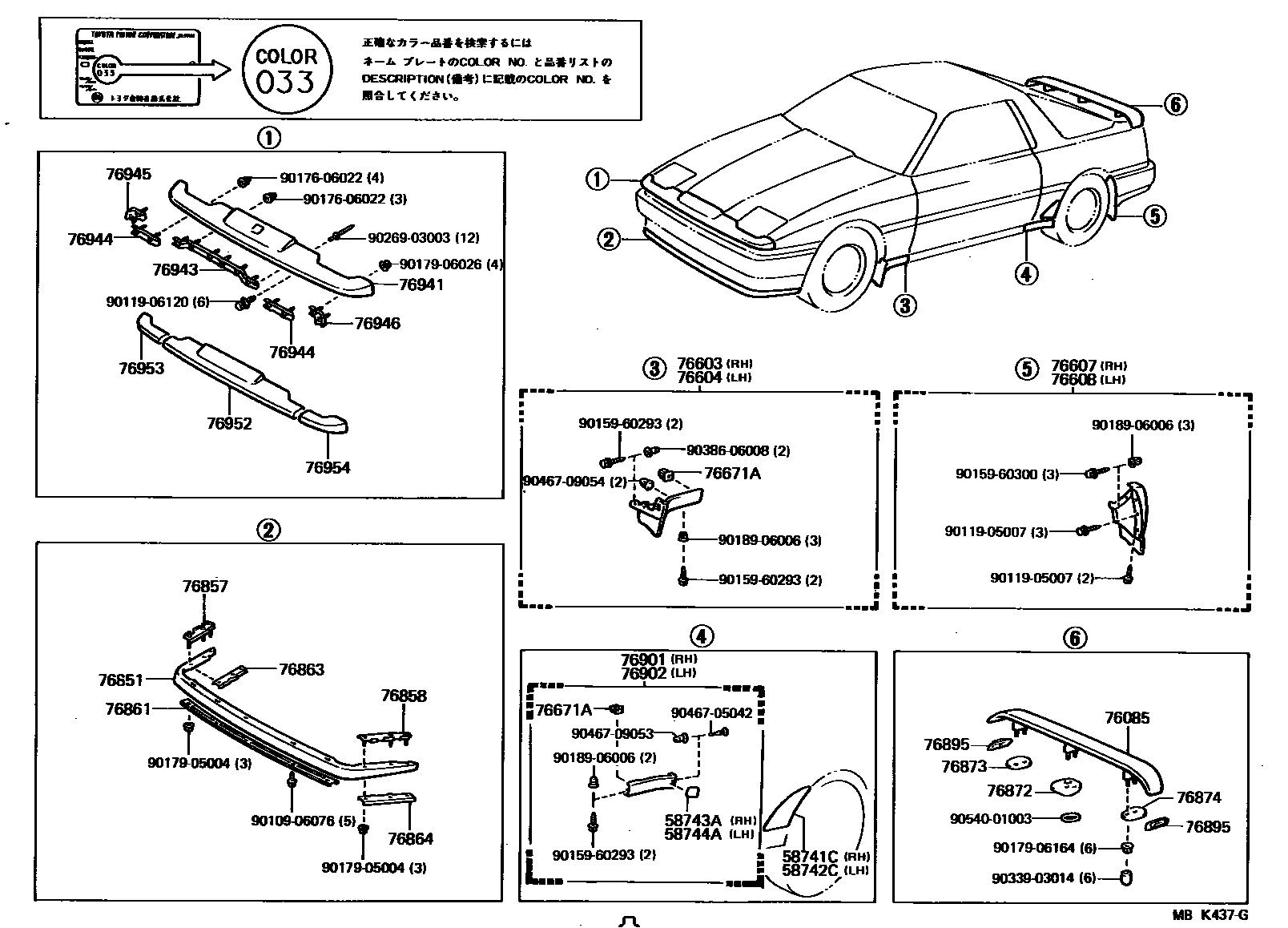

MUDGUARD & SPOILER
58741CPROTECTOR, QUARTER PANEL, RH
58742CPROTECTOR, QUARTER PANEL, LH
58743APROTECTOR, REAR WHEEL EXTENSION, NO.2 RH
58744APROTECTOR, REAR WHEEL EXTENSION, NO.2 LH
76085SPOILER SUB-ASSY, REAR
BLACK-M(204)BLACK LIMITED
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76671ACLIP, FRONT FENDER MUDGUARD
sub76671-14020
76851COVER, FRONT SPOILER
76857RETAINER, FRONT SPOILER SIDE, RH
76858RETAINER, FRONT SPOILER SIDE, LH
76861RETAINER, FRONT SPOILER, LOWER NO.1
76863RETAINER, FRONT SPOILER, LOWER NO.2 RH
76864RETAINER, FRONT SPOILER, LOWER NO.2 LH
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76874PROTECTOR, REAR SPOILER, NO.3
76895PROTECTOR, REAR SPOILER, NO.5
76901MUDGUARD SUB-ASSY, SIDE, RH
BLACK LIMITED, BLACK-M,BLACK M,204
RED MICA,RED MICA,3H1
SILVER-M,AMETHYST SILVER M,920
BLUE MICA,BLUE MICA,8E3
WHITE,SUPER WHITE 2,040
76902MUDGUARD SUB-ASSY, SIDE, LH
BLACK LIMITED, BLACK-M,BLACK M,204
RED MICA,RED MICA,3H1
SILVER-M,AMETHYST SILVER M,920
BLUE MICA,BLUE MICA,8E3
WHITE,SUPER WHITE 2,040
76941COVER, FRONT FACIA
76943RETAINER, FRONT FACIA, NO.1
76944RETAINER, FRONT FACIA, NO.2
76945RETAINER, FRONT FACIA, NO.3 RH
76946RETAINER, FRONT FACIA, NO.3 LH
76952ABSORBER, FRONT FACIA, NO.1
76953ABSORBER, FRONT FACIA, NO.2 RH
76954ABSORBER, FRONT FACIA, NO.2 LH
9010906076
main90109-06076
9011905007
main90119-05007
9011906120
main90119-06120
9015960293
main90159-60293
9015960300
main90159-60300
9017606022
main90176-06022
9017905004
main90179-05004
9017906026
main90179-06026
9017906164
main90179-06164
9018906006
main90189-06006
9026903003
main90269-03003
9033903014
main90339-03014
9038606008
main90386-06008
9046705042
main90467-05042
9046709053
main90467-09053
9046709054
main90467-09054
9054001003
main90540-01003
47 parts on this diagram · 2 diagrams in section
