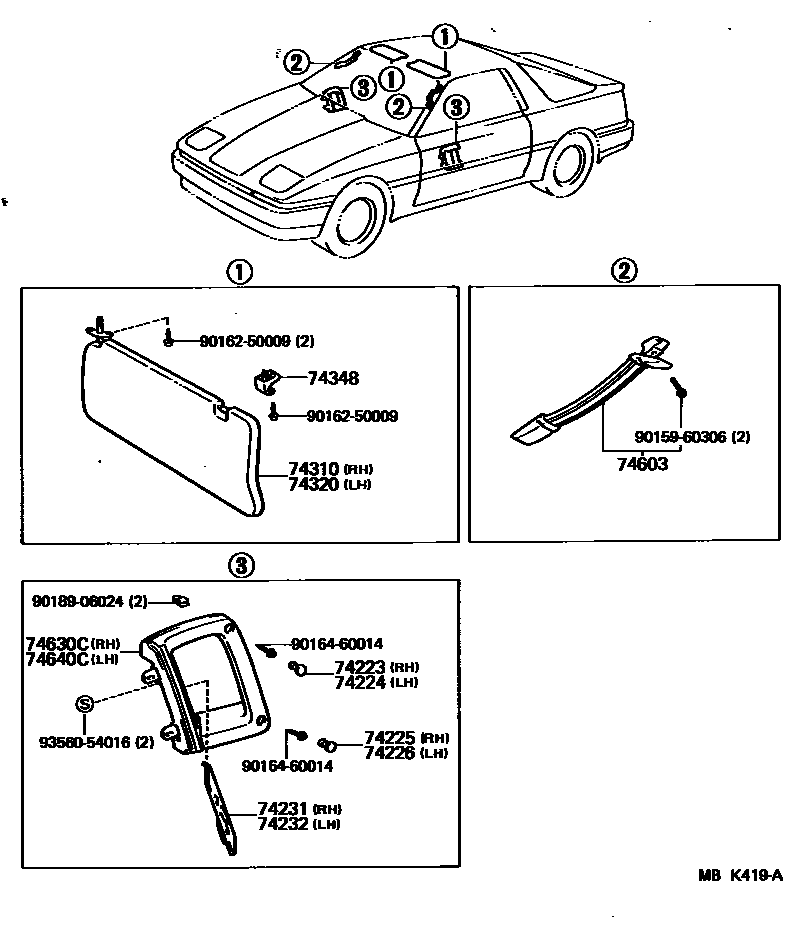

ARMREST & VISOR

74223CAP, DOOR ARMREST, RH

main74266-14040-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main74266-14040-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main74266-14040-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main74266-14040-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

74224CAP, DOOR ARMREST, LH

main74266-14040-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main74266-14040-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main74266-14040-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main74266-14040-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

74225CAP, DOOR ARMREST, REAR RH

main74267-14020-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main74267-14020-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main74267-14020-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main74267-14020-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

74226CAP, DOOR ARMREST, REAR LH

main74267-14020-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main74267-14020-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main74267-14020-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main74267-14020-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-14110-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main74231-14110-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main74231-14110-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main74231-14110-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-14100-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main74232-14100-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main74232-14100-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main74232-14100-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

74310VISOR ASSY, RH

main74310-14430-02iGA70..S198602-198808

MAROON,MAROON,TRIM3#

main74310-14430-03iGA70..S198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main74310-14430-04iGA70..S198602-198808

BLUE,DEEP BLUE,TRIM8#

main74310-14430-05iGA70..S198602-198701

BEIGE,DARK BEIGE,TRIM4#

main74310-14440-02iGA70,MA70..LB..(G,GT,GTL,GTT)198602-198808

MAROON,MAROON,TRIM3#

main74310-14440-03iGA70,MA70..LB..(G,GT,GTL,GTT)198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main74310-14440-04iGA70,MA70..LB..(G,GT,GTL,GTT)198602-198808

BLUE,DEEP BLUE,TRIM8#

main74310-14440-05iGA70,MA70..LB..(G,GT,GTT)198602-198701

BEIGE,BEIGE,TRIM4#

main74310-14470-02iGA70,MA70..AET198606-198808

MAROON,MAROON,TRIM3#

main74310-14470-03iGA70,MA70..AET198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main74310-14470-04iGA70,MA70..AET198606-198808

BLUE,DEEP BLUE,TRIM8#

main74310-14470-05iGA70,MA70..AET198606-198701

BEIGE,DARK BEIGE,TRIM4#

74320VISOR ASSY, LH

main74320-14510-02iGA70..S198602-198808

MAROON,MAROON,TRIM3#

main74320-14510-03iGA70..S198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main74320-14510-04iGA70..S198602-198808

BLUE,DEEP BLUE,TRIM8#

main74320-14510-05iGA70..S198602-198701

BEIGE,DARK BEIGE,TRIM4#

main74320-14520-02iGA70,MA70..G,GT,GTL,GTT198602-198808

MAROON,MAROON,TRIM3#

main74320-14520-03iGA70,MA70..G,GT,GTL,GTT198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main74320-14520-04iGA70,MA70..G,GT,GTL,GTT198602-198808

BLUE,DEEP BLUE,TRIM8#

main74320-14520-05iGA70,MA70..G,GT,GTT198602-198701

BEIGE,BEIGE,TRIM4#

74348HOLDER, VISOR

main74348-20020-05×2iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

sub74348-12020

main74348-20020-12×2iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

sub74348-12020

main74348-20020-13×2iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

sub74348-12020

main74348-20020-14×2iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

sub74348-12020

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-24020-02×2iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main74610-24020-03×2iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main74610-24020-04×2iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main74610-24020-05×2iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-14020-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main74630-14020-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main74630-14020-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main74630-14020-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-14010-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main74640-14010-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main74640-14010-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main74640-14010-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

9015960306

main90159-60306

9016250009

main90162-50009

9016460014

main90164-60014

9018906024

main90189-06024

9356054016

main93560-54016

17 parts on this diagram · 1 diagram in section
