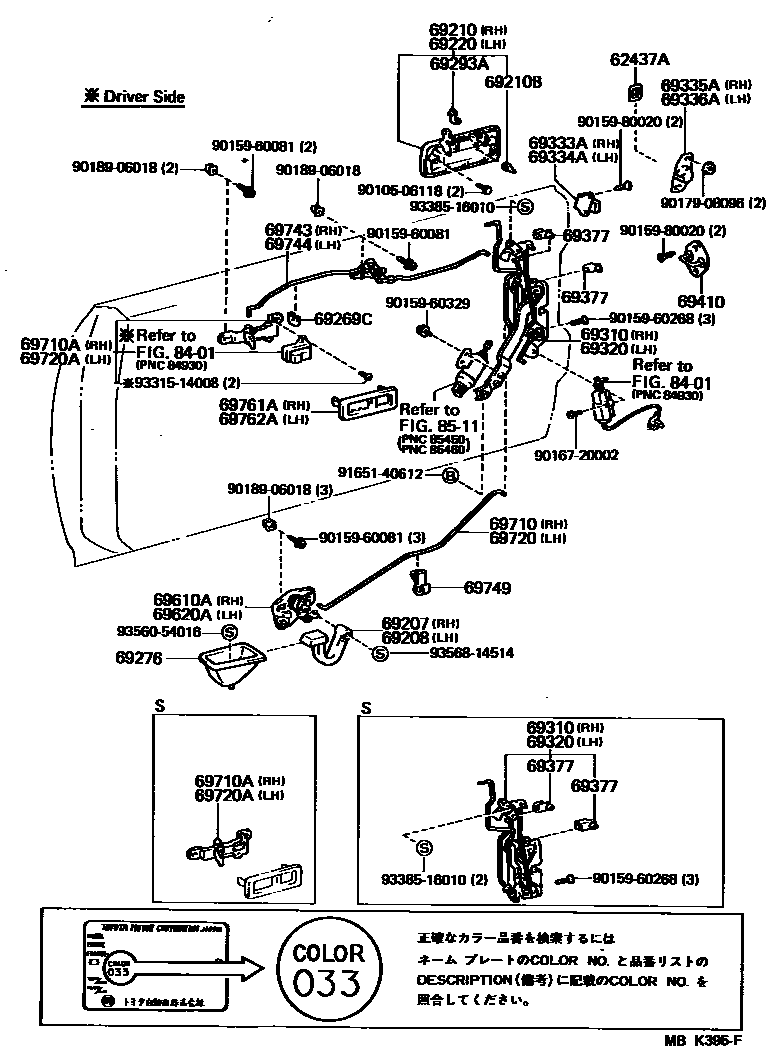

FRONT DOOR LOCK & HANDLE

62437APROTECTOR, BASE EDGE, NO.1

main62437-14020iGA70,MA70..AET198606-198808

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69271-20090-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main69271-20090-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

main69271-20090-12iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main69271-20090-13iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69272-20060-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main69272-20060-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

main69272-20060-12iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main69272-20060-13iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-14090-01iGA70..GTT198801-198802

BLACK LIMITED,BLACK-M,BLACK METALLIC,204

main69210-14090-02iGA70,MA70198602-198808

RED MICA,RED MICA,3H1

main69210-14090-03iGA70,MA70198602-198808

SILVER-M,AMETHYST SILVER M,920

main69210-14090-05iGA70,MA70198602-198701

BEIGE-M,BEIGE METALLIC,27A

main69210-14090-08iGA70,MA70198602-198808

WHITE,SUPER WHITE,040

main69210-14090-18iMA70..GTL198701-198808

WHITE PEARL MICA,WHITE PEARL MICA,042

main69210-14090-34iGA70,MA70198701-198808

BLUE MICA,BLUE METALLIC/MICA,8E3

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021iGA70,MA70198602-198808

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-14100-01iGA70..GTT198801-198802

BLACK LIMITED,BLACK-M,BLACK METALLIC,204

main69220-14100-02iGA70,MA70198602-198808

RED MICA,RED MICA,3H1

main69220-14100-03iGA70,MA70198602-198808

SILVER-M,AMETHYST SILVER M,920

main69220-14100-05iGA70,MA70198602-198701

BEIGE-M,BEIGE METALLIC,27A

main69220-14100-08iGA70,MA70198602-198808

WHITE,SUPER WHITE,040

main69220-14100-18iMA70..GTL198701-198808

WHITE PEARL MICA,WHITE PEARL MICA,042

main69220-14100-34iGA70,MA70198701-198808

BLUE MICA,BLUE METALLIC/MICA,8E3

69269CSEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)

main69289-12010iMA70198602-198808

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-14040-02iGA70,MA70198602-198808

RH,MAROON,MAROON,TRIM3#

main69277-14040-03iGA70,MA70198701-198808

RH,GRAY,MEDIUM GRAY,TRIM1#

main69277-14040-04iGA70,MA70198602-198808

RH,BLUE,DEEP BLUE,TRIM8#

main69277-14040-05iGA70,MA70198602-198701

RH,BEIGE,DARK BEIGE,TRIM4#

main69278-14010-02iGA70,MA70198602-198808

LH,MAROON,MAROON,TRIM3#

main69278-14010-03iGA70,MA70198701-198808

LH,GRAY,MEDIUM GRAY,TRIM1#

main69278-14010-04iGA70,MA70198602-198808

LH,BLUE,DEEP BLUE,TRIM8#

main69278-14010-05iGA70,MA70198602-198701

LH,BEIGE,DARK BEIGE,TRIM4#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12060iGA70,MA70198602-198808

69310LOCK ASSY, FRONT DOOR, RH

main69310-14340iGA70..S198602-198808

main69310-14350iGA70,MA70..G,GT,GTL,GTT198602-198808

69320LOCK ASSY, FRONT DOOR, LH

main69320-14300iGA70..S198602-198808

main69320-14310iGA70,MA70..G,GT,GTL,GTT198602-198808

69333ASTABILIZER, DOOR MALE, RH

main69333-14010iGA70,MA70..AET198606-198808

69334ASTABILIZER, DOOR MALE, LH

main69334-14010iGA70,MA70..AET198606-198808

69335ASTABILIZER, DOOR FEMALE, RH

main69335-14010iGA70,MA70..AET198606-198808

69336ASTABILIZER, DOOR FEMALE, LH

main69336-14010iGA70,MA70..AET198606-198808

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-20190iGA70,MA70198602-198808

OPEN LINK,RH

main69759-20200iGA70,MA70198602-198808

OPEN LINK,LH

main69759-24050iGA70,MA70198602-198808

LOCKING LINK,RH

main69759-24060iGA70,MA70198602-198808

LOCKING LINK,LH

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-12050iGA70,MA70198602-198808

69610ACONTROL ASSY, FRONT DOOR LOCK REMOTE, RH

main69610-14030iGA70,MA70198602-198808

69620ACONTROL ASSY, FRONT DOOR LOCK REMOTE, LH

main69620-14030iGA70,MA70198602-198808

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-14090iGA70,MA70198602-198808

69710ALEVER ASSY, FRONT DOOR LOCK CONTROL, RH

main69710-14070-02iGA70,MA70..G,GT,GTL,GTT198602-198808

MAROON,MAROON,TRIM3#

main69710-14070-03iGA70,MA70..G,GT,GTL,GTT198701-198808

GRAY,MEDIUM GRAY METALLIC,TRIM1#

main69710-14070-04iGA70,MA70..G,GT,GTL,GTT198602-198808

BLUE,DEEP BLUE,TRIM8#

main69710-14070-05iGA70,MA70..G,GT,GTT198602-198701

BEIGE,DARK BEIGE,TRIM4#

main69710-20060-04iGA70..S198602-198808

BLUE,DEEP BLUE,TRIM8#

main69710-20060-05iGA70..S198602-198701

BEIGE,DARK BEIGE,TRIM4#

main69710-20060-12iGA70..S198602-198808

MAROON,MAROON,TRIM3#

main69710-20060-13iGA70..S198701-198808

GRAY,MEDIUM GRAY,TRIM1#

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-14090iGA70,MA70198602-198808

69720ALEVER ASSY, FRONT DOOR LOCK CONTROL, LH

main69720-20060-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main69720-20060-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

main69720-20060-12iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main69720-20060-13iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH

main69750-14010iGA70,MA70198602-198808

69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH

main69760-14010iGA70,MA70198602-198808

69749CLAMP, FRONT DOOR LOCK LINK

main69749-20020iGA70,MA70198602-198808

69761ABEZEL, DOOR LOCK CONTROL KNOB, RH

main69761-14010-04iGA70,MA70..G,GT,GTL,GTT198611-198808

BLUE,DEEP BLUE,TRIM8#

main69761-14010-05iGA70,MA70..G,GT,GTT198611-198701

BEIGE,DARK BEIGE,TRIM4#

main69761-14010-12iGA70,MA70..G,GT,GTL,GTT198611-198808

MAROON,MAROON,TRIM3#

main69761-14010-13iGA70,MA70..G,GT,GTL,GTT198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main69761-14020-04iGA70..S198611-198808

BLUE,DEEP BLUE,TRIM8#

main69761-14020-05iGA70..S198611-198701

BEIGE,DARK BEIGE,TRIM4#

main69761-14020-12iGA70..S198611-198808

MAROON,MAROON,TRIM3#

main69761-14020-13iGA70..S198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main69761-20040-04iGA70,MA70..G,GT,GTT198602-198611

BLUE,DEEP BLUE,TRIM8#

main69761-20040-05iGA70,MA70..G,GT,GTT198602-198611

BEIGE,DARK BEIGE,TRIM4#

main69761-20040-12iGA70,MA70..G,GT,GTT198602-198611

MAROON,MAROON,TRIM3#

main69761-20050-04iGA70..S198602-198611

BLUE,DEEP BLUE,TRIM8#

main69761-20050-05iGA70..S198602-198611

BEIGE,DARK BEIGE,TRIM4#

main69761-20050-12iGA70..S198602-198611

MAROON,MAROON,TRIM3#

69762ABEZEL, DOOR LOCK CONTROL KNOB, LH

main69762-14020-04iGA70,MA70198611-198808

BLUE,DEEP BLUE,TRIM8#

main69762-14020-05iGA70,MA70198611-198701

BEIGE,DARK BEIGE,TRIM4#

main69762-14020-12iGA70,MA70198611-198808

MAROON,MAROON,TRIM3#

main69762-14020-13iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main69762-20050-04iGA70,MA70198602-198611

BLUE,DEEP BLUE,TRIM8#

main69762-20050-05iGA70,MA70198602-198611

BEIGE,DARK BEIGE,TRIM4#

main69762-20050-12iGA70,MA70198602-198611

MAROON,MAROON,TRIM3#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010506118

main90105-06118

9015960081

main90159-60081

9015960268

main90159-60268

9015960329

main90159-60329

9015980020

main90159-80020

9016720002

main90167-20002

9017908096

main90179-08096

9018906018

main90189-06018

9165140612

main91651-40612

9331514008

main93315-14008

9338516010

main93385-16010

9356054016

main93560-54016

9356814514

main93568-14514

43 parts on this diagram · 1 diagram in section
