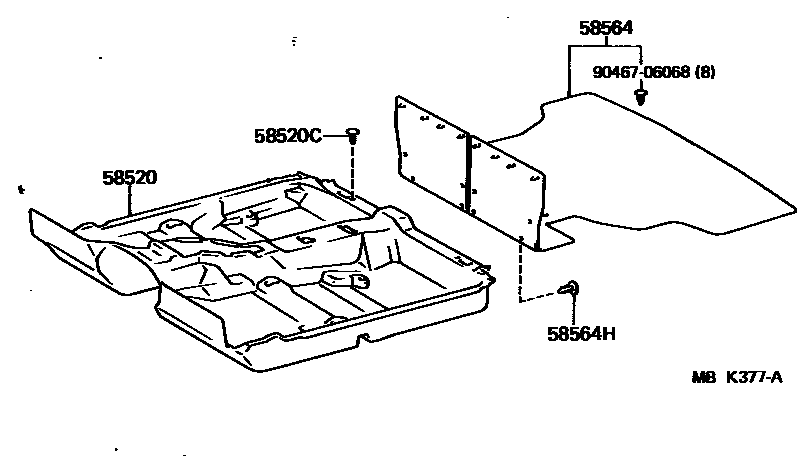

MAT & CARPET

58520CARPET ASSY, FRONT FLOOR

main58510-14870-02iGA70..S198602-198808

MAROON,MAROON,TRIM3#

main58510-14870-03iGA70..S198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main58510-14870-04iGA70..S198602-198808

BLUE,DEEP BLUE,TRIM8#

main58510-14870-05iGA70..S198602-198701

BEIGE,BEIGE,TRIM4#

main58510-14880-02iGA70..G,GTT198602-198808

MAROON,MAROON,TRIM3#

main58510-14880-03iGA70..G,GTT198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main58510-14880-04iGA70..G,GTT198602-198808

BLUE,DEEP BLUE,TRIM8#

main58510-14880-05iGA70..G,GTT198602-198701

BEIGE,DARK BEIGE,TRIM4#

main58510-1B020-02iMA70198602-198806

MAROON,MAROON,TRIM3#

main58510-1B020-03iMA70198701-198806

GRAY,MEDIUM GRAY,TRIM1#

main58510-1B020-04iMA70198602-198806

BLUE,DEEP BLUE,TRIM8#

main58510-1B020-05iMA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

main58510-1B040-02iMA70198806-198808

MAROON,MAROON,TRIM3#

main58510-1B040-03iMA70198806-198808

GRAY,MEDIUM GRAY,TRIM1#

main58510-1B040-04iMA70198806-198808

BLUE,DEEP BLUE,TRIM8#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-01×2iGA70,MA70198602-198808

BLACK,BLACK

sub90467-07049

58564CARPET, REAR FLOOR

main58570-14280-02iGA70,MA70..G,GT,GTL,GTT198602-198808

MAROON,MAROON,TRIM3#

main58570-14280-03iGA70,MA70..G,GT,GTL,GTT198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main58570-14280-04iGA70,MA70..G,GT,GTL,GTT198602-198808

BLUE,DEEP BLUE,TRIM8#

main58570-14280-05iGA70,MA70..G,GT,GTT198602-198701

BEIGE,DARK BEIGE,TRIM4#

main58570-14310-02iGA70..S198602-198808

MAROON,MAROON,TRIM3#

main58570-14310-03iGA70..S198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main58570-14310-04iGA70..S198602-198808

BLUE,DEEP BLUE,TRIM8#

main58570-14310-05iGA70..S198602-198701

BEIGE,DARK BEIGE,TRIM4#

58564HCLIP(FOR REAR FLOOR CARPET)

main90467-06070-02×10iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main90467-06070-03×10iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main90467-06070-04×10iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main90467-06070-05×10iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

9046706068

main90467-06068

5 parts on this diagram · 1 diagram in section
