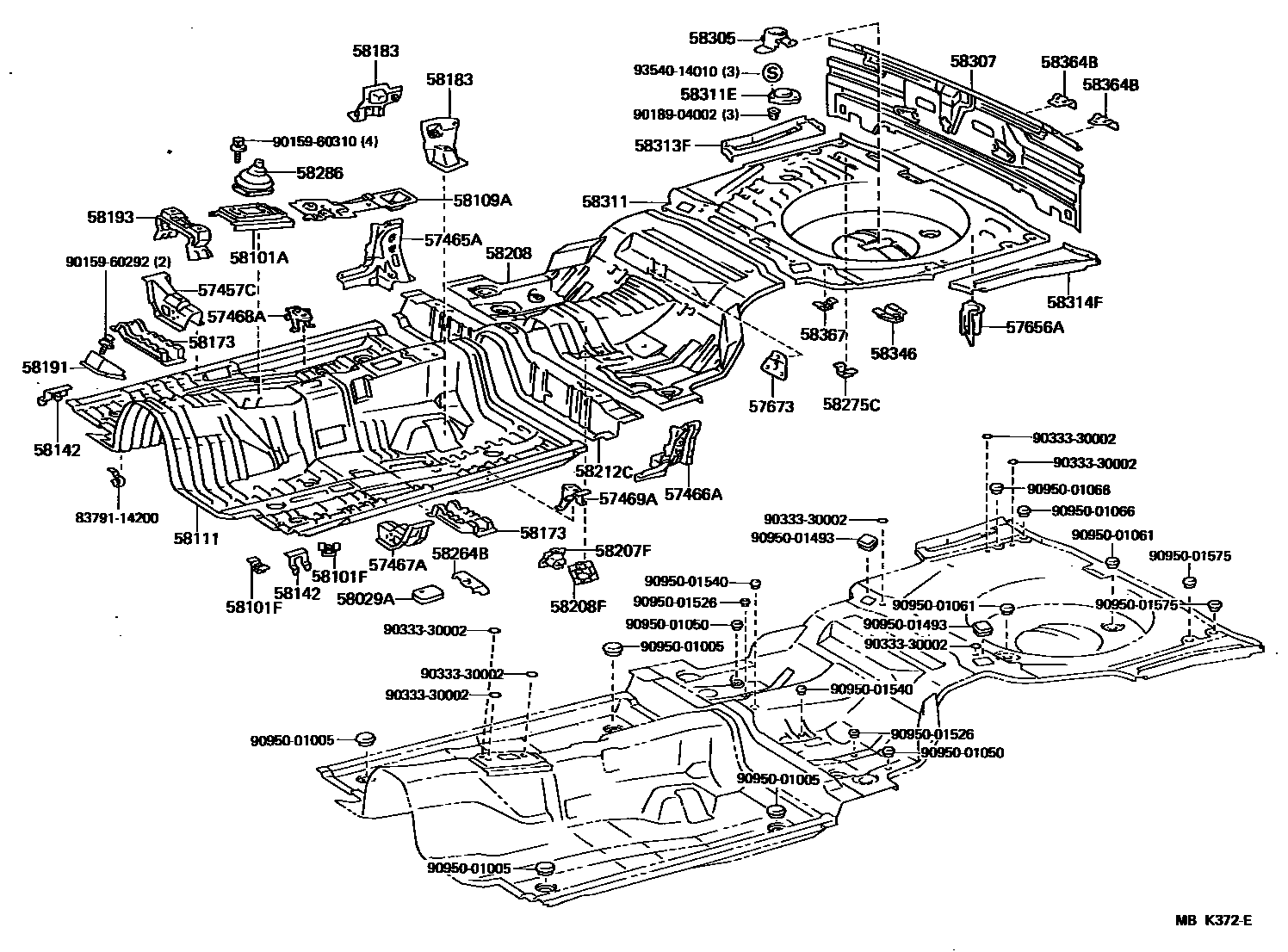

FLOOR PAN & LOWER BACK PANEL
57457CBRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT RH
57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH
57466AGUSSET, CENTER FLOOR CROSSMEMBER, LH
57467ABRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1
57673BRACKET, REAR SEATBACK HINGE MOUNTING
58029ABRACKET SUB-ASSY, PARKING BRAKE WIRE CLAMP
58101ACOVER, TRANSMISSION AUXILIARY
58101FBRACKET, MOUNTING, FLOOR, NO.1
58109ARETAINER SUB-ASSY, PARKING BRAKE
58111PAN, FRONT FLOOR
58142REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN
58173DEFLECTOR, FRONT FLOOR STONE
RH
LH
58183BRACKET, FRONT SEAT MOUNTING, INNER
RH
LH
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58207FCLAMP SUB-ASSY, PARKING BRAKE CABLE, RH
58208PAN, CENTER FLOOR
58208FCLAMP SUB-ASSY, PARKING BRAKE CABLE, LH
58212CPAN, CENTER FLOOR, FRONT
58264BBRACKET, PARKING BRAKE CABLE GUIDE
58275CBRACKET, WIRE HARNESS PROTECTOR
58286BOOT, SHIFT & SELECT LEVER, NO.1
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
sub58311-14171
58311ECOVER, REAR FLOOR SERVICE HOLE
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58346BRACKET, REAR FLOOR HEAT INSULATOR
58364BBRACKET, FUEL TANK SUPPORT
RH
LH
58367BRACKET, FUEL TUBE CLAMP
8379114200
main83791-14200
9015960292
main90159-60292
9015960310
main90159-60310
9018904002
main90189-04002
9033330002
main90333-30002
9095001005
main90950-01005
9095001050
main90950-01050
9095001061
main90950-01061
9095001066
main90950-01066
9095001493
main90950-01493
9095001526
main90950-01526
9095001540
main90950-01540
9095001575
main90950-01575
9354014010
main93540-14010
48 parts on this diagram · 1 diagram in section
