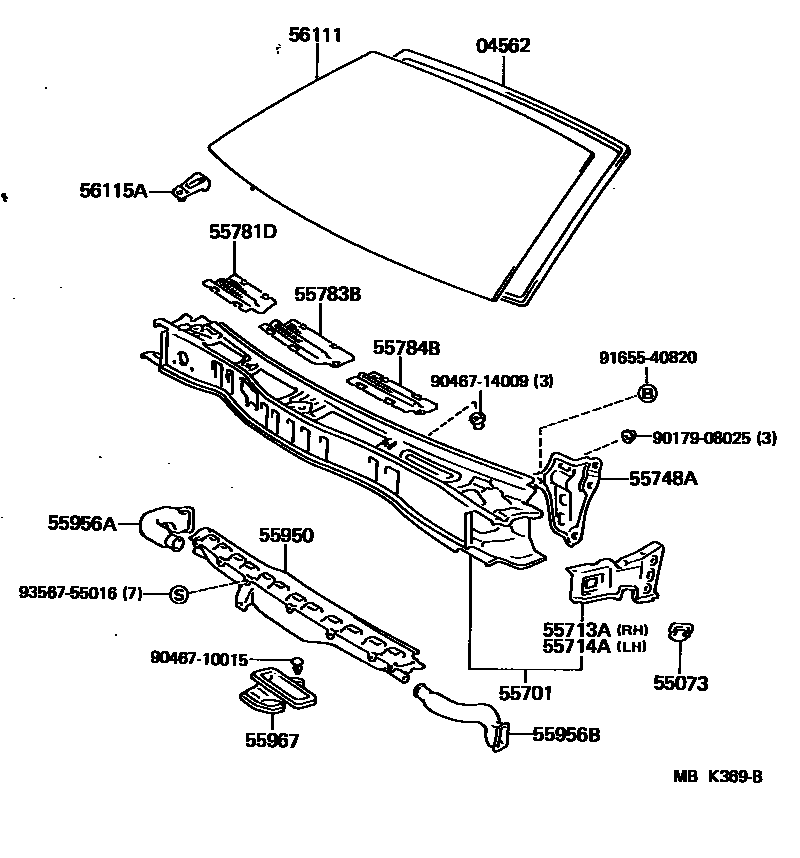

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iGA70,MA70198602-198808

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-20020iGA70,MA70198602-198808

55701PANEL SUB-ASSY, COWL

main55700-14740iGA70..G,GT,S198602-198808

sub55700-14760

main55700-14770iGA70,MA70..GTL,GTT198602-198808

sub55700-14760

55713APANEL, COWL TOP SIDE, RH

main55713-14100iGA70,MA70198602-198808

55714APANEL, COWL TOP SIDE, LH

main55714-14100iGA70,MA70198602-198808

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-14040iGA70,MA70198602-198808

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-14130iGA70,MA70198602-198808

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-14090iGA70,MA70198602-198808

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-14110iGA70,MA70198602-198808

55950NOZZLE ASSY, DEFROSTER

main55951-14170iGA70,MA70198602-198808

sub55951-14171

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-14040iGA70,MA70198602-198808

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-14050iGA70,MA70198602-198808

55967NOZZLE, DEFROSTER, LOWER

main55967-14010iGA70,MA70198602-198808

56111GLASS, WINDSHIELD

main56111-14420iGA70..S198602-198701

sub56111-14440

main56111-14421iGA70..S198701-198808

sub56111-14441

main56111-14440iGA70,MA70..G,GT,GTT198602-198701

main56111-14441iGA70,MA70..G,GT,GTL,GTT198701-198808

sub56111-14442

main56111-14460iGA70..GTT198801-198802

BLACK LIMITED,GRAY,*TL,T=5.3

sub56111-14490

main56111-14470iGA70,MA70..G,GT,GTT198602-198701

main56111-14471iGA70,MA70..G,GT,GTL,GTT198701-198808

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-14010iGA70,MA70198602-198808

9017908025

main90179-08025

9046710015

main90467-10015

9046714009

main90467-14009

9165540820

main91655-40820

9356755016

main93567-55016

20 parts on this diagram · 1 diagram in section
