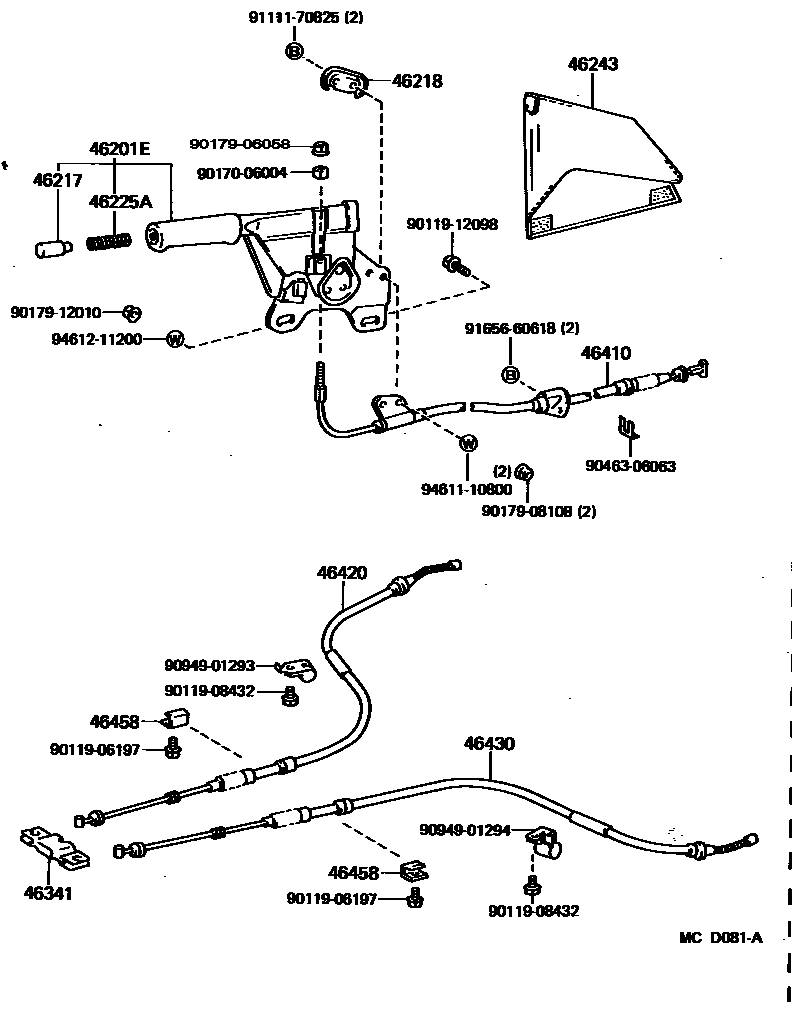

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-14160-02iGA70..G,GT,S198602-198802

MAROON,MAROON,TRIM3#

sub46201-14210¥6,300

main46201-14160-03iGA70..G,GT,S198701-198802

GRAY,MEDIUM GRAY,TRIM1#

sub46201-14210¥6,300

main46201-14160-04iGA70..G,GT,S198602-198802

BLUE,DEEP BLUE,TRIM8#

sub46201-14210¥6,300

main46201-14160-05iGA70..G,GT,S198602-198701

BEIGE,BEIGE,TRIM4#

sub46201-14210¥6,300

main46201-14190-02iGA70,MA70..GTL,GTT198602-198802

MAROON,MAROON,TRIM3#

sub46201-14240¥10,200

main46201-14190-03iGA70,MA70..GTL,GTT198701-198802

GRAY,MEDIUM GRAY,TRIM1#

sub46201-14240¥10,200

main46201-14190-04iGA70,MA70..GTL,GTT198602-198802

BLUE,DEEP BLUE,TRIM8#

sub46201-14240¥10,200

main46201-14190-05iGA70,MA70..GTT198602-198701

BEIGE,MEDIUM GRAY,TRIM4#

sub46201-14240¥10,200

main46201-14210-02iGA70..G,GT,S198802-198808

MAROON,MAROON,TRIM3#

sub46201-14210¥6,300

main46201-14210-03iGA70..G,GT,S198802-198808

GRAY,MEDIUM GRAY,TRIM1#

sub46201-14210¥6,300

main46201-14210-04iGA70..G,GT,S198802-198808

BLUE,DEEP BLUE,TRIM8#

sub46201-14210¥6,300

main46201-14240-02iGA70,MA70..GTL,GTT198802-198808

MAROON,MAROON,TRIM3#

sub46201-14191¥6,400

main46201-14240-03iGA70,MA70..GTL,GTT198802-198808

GRAY,MEDIUM GRAY,TRIM1#

sub46201-14191¥6,400

main46201-14240-04iGA70,MA70..GTL,GTT198802-198808

BLUE,DEEP BLUE,TRIM8#

sub46201-14191¥6,400

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-04iGA70..G,GT,S198802-198808

BLUE,DEEP BLUE,TRIM8#

sub46217-12020¥230

sub46217-16030¥240

main46217-12020-B0iGA70..G,GT,S198802-198808

GRAY,MEDIUM GRAY,TRIM1#

sub46217-12020¥230

sub46217-16030¥240

main46217-12020-D0iGA70..G,GT,S198802-198808

MAROON,MAROON,TRIM3#

sub46217-12020¥230

sub46217-16030¥240

main46217-20020-14iGA70..G,GT,S198602-198802

BLUE,DEEP BLUE,TRIM8#

sub46217-20020¥300

main46217-20020-15iGA70..G,GT,S198602-198701

BEIGE,BEIGE,TRIM4#

sub46217-20020¥300

main46217-20020-33iGA70..G,GT,S198701-198802

GRAY,MEDIUM GRAY,TRIM1#

sub46217-20020¥300

main46217-20020-42iGA70..G,GT,S198602-198802

MAROON,MAROON,TRIM3#

sub46217-20020¥300

main46217-22040-04iGA70,MA70..GTL,GTT198602-198802

BLUE,DEEP BLUE,TRIM8#

sub46217-22040¥260

main46217-22040-12iGA70,MA70..GTL,GTT198602-198802

MAROON,MAROON,TRIM3#

sub46217-22040¥260

main46217-22040-13iGA70,MA70..GTL,GTT198701-198802

GRAY,MEDIUM GRAY,TRIM1#

sub46217-22040¥260

main46217-22040-15iGA70,MA70..GTT198602-198701

BEIGE,BEIGE,TRIM4#

sub46217-22040¥260

main46217-32010-04iGA70,MA70..GTL,GTT198802-198808

BLUE,DEEP BLUE,TRIM8#

sub46217-32010¥250

main46217-32010-13iGA70,MA70..GTL,GTT198802-198808

GRAY,MEDIUM GRAY,TRIM1#

sub46217-32010¥250

main46217-32010-D0iGA70,MA70..GTL,GTT198802-198808

MAROON,MAROON,TRIM3#

sub46217-32010¥250

46218PROTECTOR, PARKING BRAKE LEVER EDGE

main46218-14030iGA70..G,GT,S¥300198602-198808

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iGA70,MA70..GTT¥160198602-198808

46243COVER, PARKING BRAKE LEVER

main46243-14090-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

sub46243-14090¥3,140

main46243-14090-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

sub46243-14090¥3,140

main46243-14090-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

sub46243-14090¥3,140

main46243-14090-05iGA70,MA70198602-198701

BEIGE,BEIGE,TRIM4#

sub46243-14090¥3,140

46341EQUALIZER, PARKING BRAKE

main46341-12010iGA70,MA70¥320198602-198808

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-14070iGA70,MA70¥22,000198602-198808

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-14290iGA70,MA70¥10,000198602-198808

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-14290iGA70,MA70¥10,000198602-198808

46458RETAINER, CABLE

main46458-20020iGA70,MA70¥270198602-198808

sub46458-50010¥340

9011906197

main90119-06197¥50

9011908432

main90119-08432¥520

9011912098

main90119-12098¥260

9017006004

main90170-06004¥130

9017906058

main90179-06058¥130

9017908108

main90179-08108¥160

9017912010

main90179-12010¥190

9046306063

main90463-06063¥250

9094901293

main90949-01293¥390

9094901294

main90949-01294¥390

9111170825

main91111-70825¥180

9165660618

main91656-60618¥140

9461110800

main94611-10800¥80

9461211200

main94612-11200¥100

24 parts on this diagram · 2 diagrams in section
