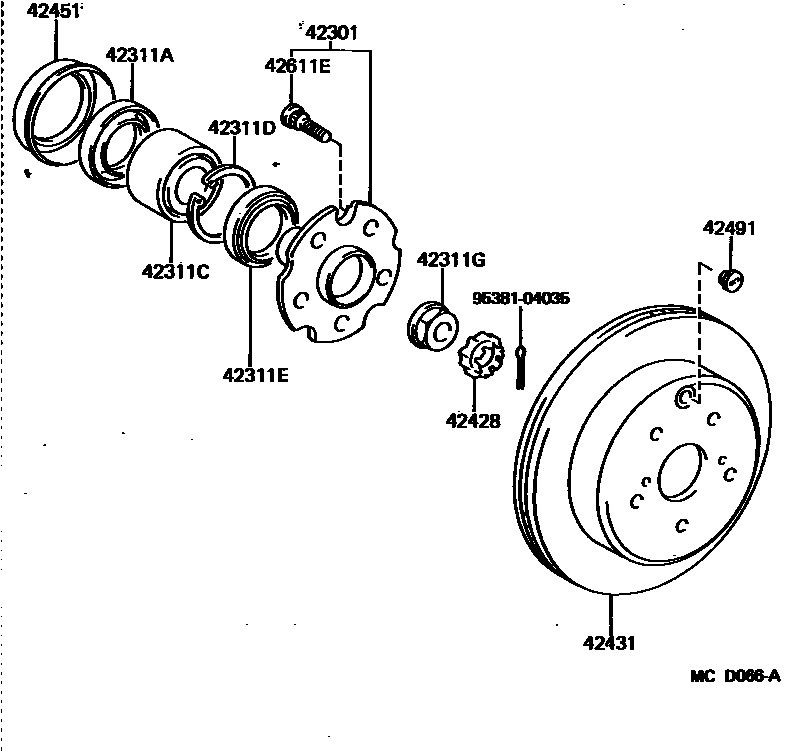

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42301SHAFT SUB-ASSY, REAR AXLE

main42301-14010iGA70,MA70198602-198808

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-63001iGA70,MA70198602-198808

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-43005iGA70,MA70198602-198808

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90521-85002iGA70,MA70198602-198808

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90311-57001iGA70,MA70198602-198808

42311GNUT(FOR REAR AXLE SHAFT)

main90179-22015iGA70,MA70198602-198808

42428PLATE, REAR AXLE LOCK NUT

main42428-14010iGA70,MA70198602-198808

42431DISC, REAR

main42431-14090iGA70..G,S198602-198808

main42431-14100iGA70,MA70..GT,GTL,GTT198602-198808

sub42431-14110

42451DEFLECTOR, REAR WHEEL BEARING DUST, NO.1

main42451-14010iGA70,MA70198602-198808

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iGA70,MA70198602-198808

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02049iGA70,MA70198602-198808

9538104035

main95381-04035

12 parts on this diagram · 3 diagrams in section
